1986 Yamaha TT225 (TT225S) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1986 Yamaha TT225 (TT225S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

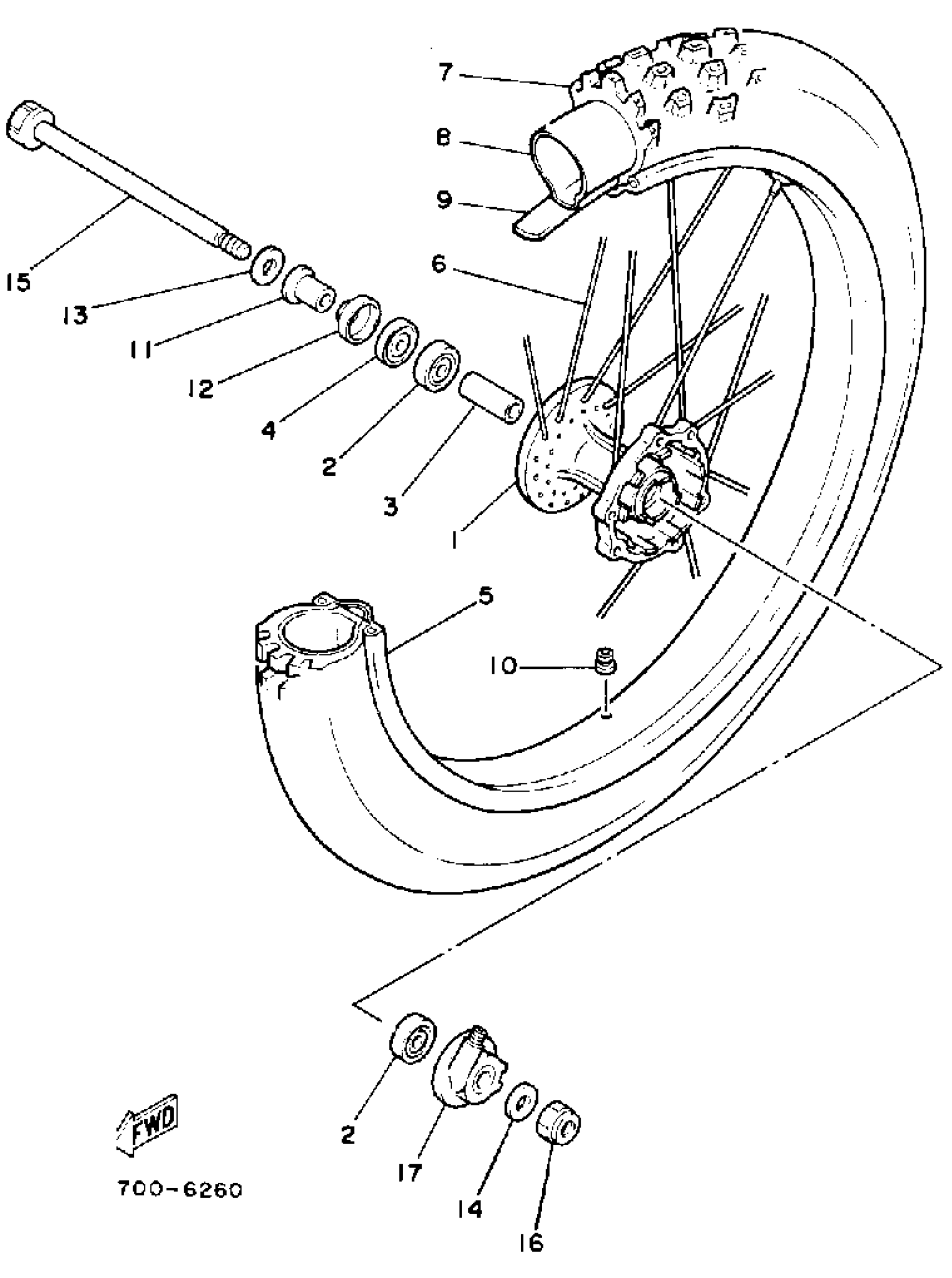

1986 Yamaha TT225 (TT225S) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

34X-25111-02-98

—
Out of stock

2

BEARING

93306-20205-00

1

$32.63

In stock

3

SPACER(1ET)

90560-15290-00

1

$17.32

In stock

4

OIL SEAL (23X)

93102-20281-00

1

$11.35

In stock

5

RIM (1.60-21)(2YY)

94416-21536-00

1

$452.52

In stock

6

SPOKE SET, FRONT

1KH-25104-00-00

1

$84.73

In stock

7

275-21 4PR.M23 BS

(94127-217H0-00)

1
Out of stock

8

TUBE, FRONT (2A6)

94227-21123-00

1

$43.59

In stock

9

BAND, RIM (2A6)

94330-21084-00

1

$13.89

In stock

10

GROMMET (397)

90480-10068-00

1

$6.77

In stock

11

COLLAR (1W1)

90387-15600-00

1

$15.34

In stock

12

COVER, HUB DUST

322-25118-00-00

1

$16.17

In stock

13

WASHER, PLATE(33Y)

90201-164H4-00

1

$8.02

In stock

14

WASHER, PLATE (3Y2)

90201-15785-00

—
Out of stock

15

AXLE, WHEEL

34X-25181-00-00

—
Out of stock

16

NUT, SELF-LOCKING(3FC)

90185-14150-00

—
Out of stock

17

GEAR UNIT ASSY

34X-25190-01-00

—
Out of stock
