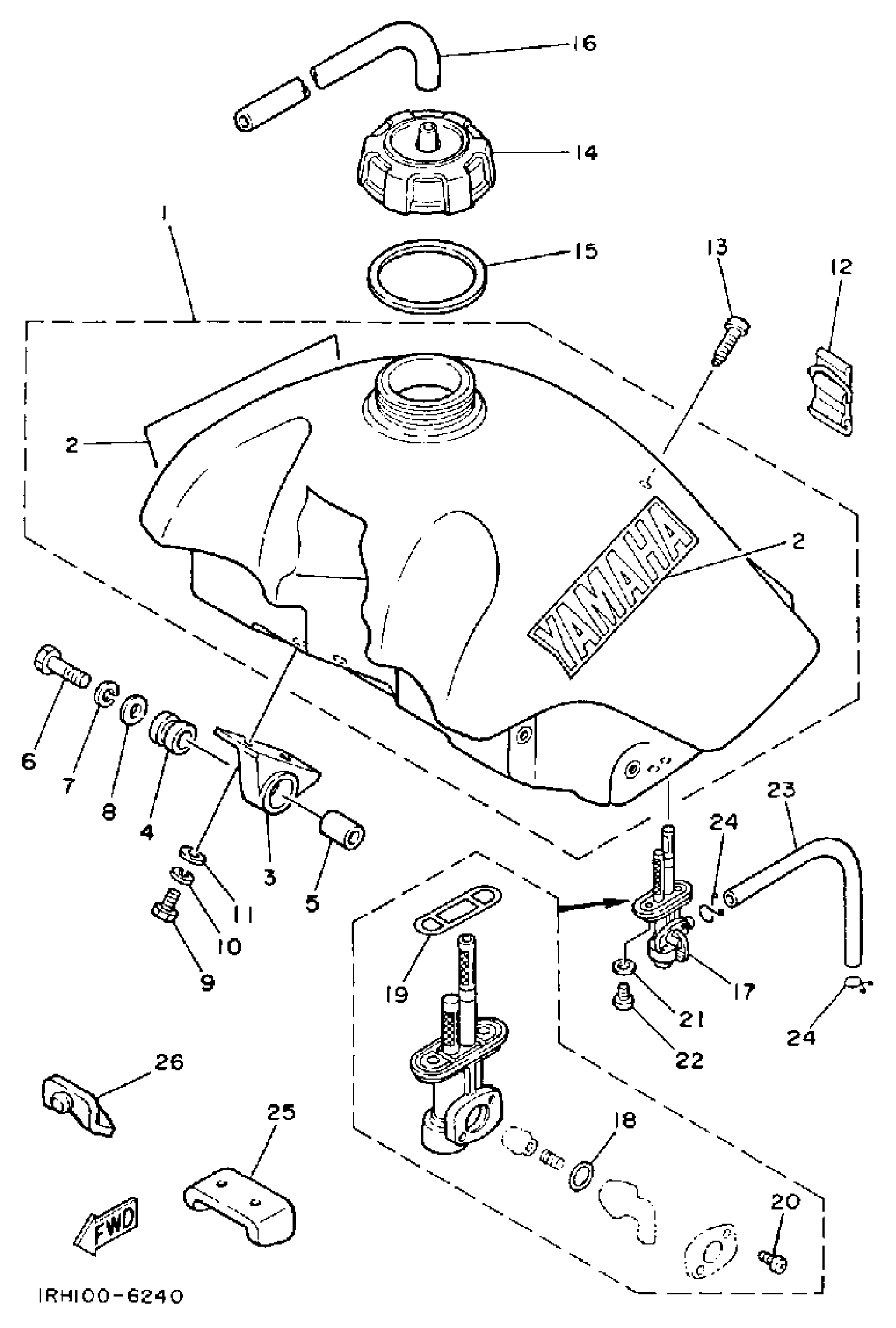

Yamaha TT225S (TT225) 1986 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

1RH-Y2401-00-00

Unavailable

2

EMBLEM, YAMAHA

99244-00120-00

$14.31

3

HOLDER DAMPER

24X-23144-00-00

Unavailable

4

GROMMET(4AA)

90480-18549-00

$8.23

5

COLLAR

90387-06387-00

Unavailable

6

BOLT(3RV)

97014-06035-00

$1.54

7

WASHER, SPRING

92995-06100-00

$2.95

8

WASHER, PLATE (J10)

90201-06697-00

$5.75

9

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

10

WASHER, SPRING

92995-06100-00

$2.95

11

WASHER, PLATE (4H7)

90201-061A5-00

$5.47

12

BAND, TANK FITTING 1

59V-24173-00-00

$14.81

13

SCREW(3JM)

90149-06306-00

$2.76

14

CAP ASSY

5MV-24610-00-00

$49.24

15

GASKET,CAP

3R9-24612-00-00

Unavailable

16

HOSE (L420)

90445-092K1-00

Unavailable

17

FUEL COCK ASSY

1LN-24500-01-00

Unavailable

18

O-RING

4X8-24534-00-00

Unavailable

19

O-RING

4X8-24512-00-00

Unavailable

20

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

21

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

22

SCREW 256241430000

90149-06011-00

Unavailable

23

HOSE (L200)

90445-10752-00

Unavailable

24

CLIP

90467-090A2-00

Unavailable

25

DAMPER, LOCATING 1

34K-24181-00-00

Unavailable

26

DAMPER, LOCATING 4

23X-24184-00-00

Unavailable
