1986 Yamaha TT225 (TT225S) Clutch Diagram

← All diagrams

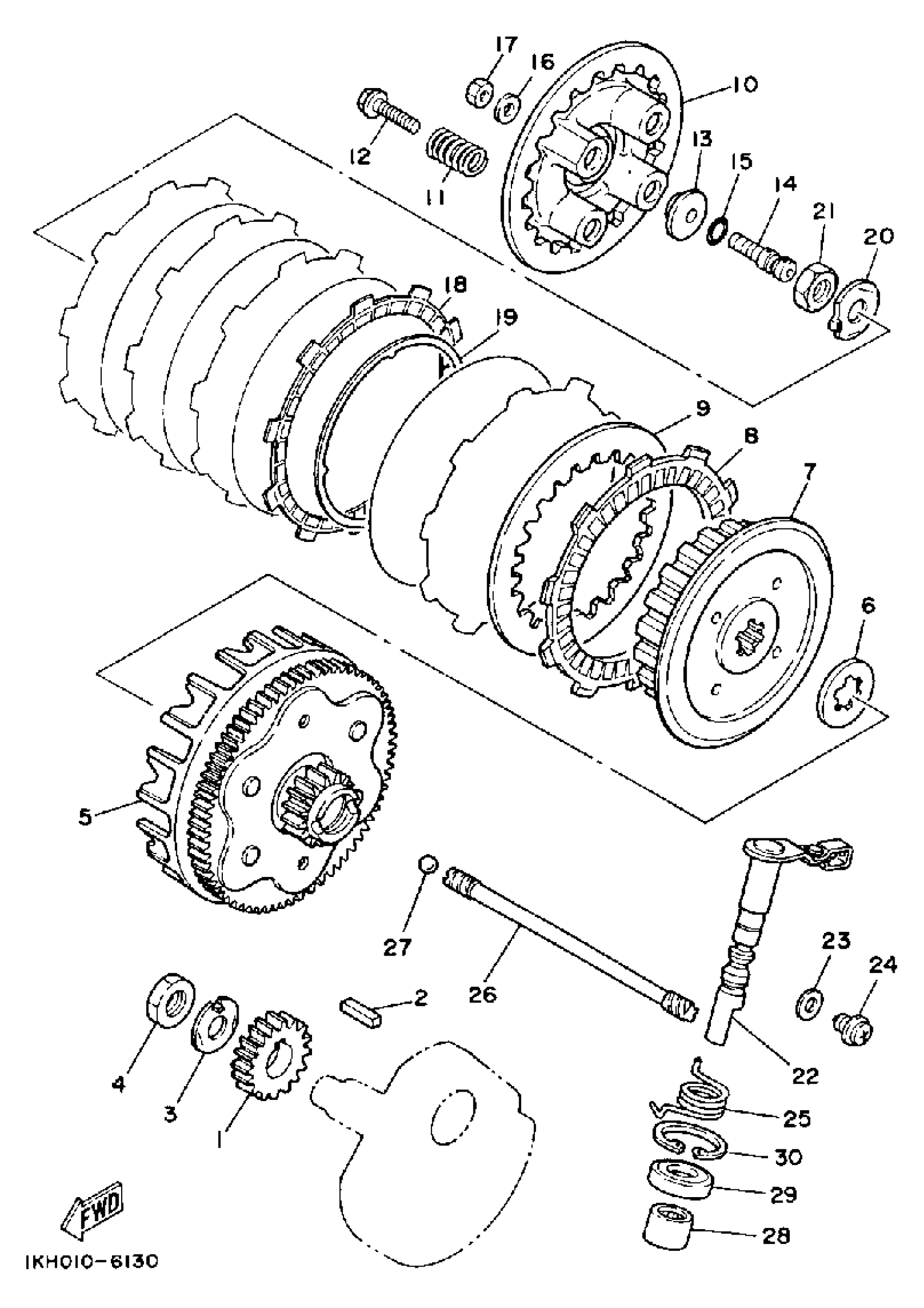

Find the part on the Clutch diagram for your 1986 Yamaha TT225 (TT225S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha TT225 (TT225S) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, PRIMARY DRIVE

5H0-16111-00-00

—
Out of stock

2

KEY, STRAIGHT (5H0)

90282-05043-00

1
Out of stock

3

WASHER, LOCK (15Y)

90215-14205-00

1
Out of stock

4

NUT (5H0)

90170-14284-00

1
Out of stock

5

PRIMARY DRIVEN GEAR COMP.

1KH-16150-00-00

1
Out of stock

6

PLATE, THRUST 1

5H0-16154-00-00

—
Out of stock

7

BOSS, CLUTCH

1KH-16371-00-00

1
Out of stock

8

PLATE, FRICTION

537-16321-00-00

1
Out of stock

9

PLATE, CLUTCH 1

336-16324-10-00

1
Out of stock

10

PLATE, PRESSURE 1

5H0-16351-00-00

1
Out of stock

11

SPRING, COMPRESSION

90501-23700-00

1
Out of stock

12

SCREW, WITH WASHER (537)

90159-05011-00

1
Out of stock

13

PLATE, PUSH

1W1-16358-01-00

1
Out of stock

14

ROD, PUSH 1

1HX-16356-00-00

1
Out of stock

15

O-RING (2H7)

93210-48364-00

1
Out of stock

16

YBS66-6 WASHER, PLAIN

92990-06200-00

—
Out of stock

17

NUT, HEXAGON

95380-06600-00

1
Out of stock

18

PLATE, FRICTION

36X-16321-00-00

—
Out of stock

19

SPRING, CLUTCH BOSS

1KH-16383-00-00

—
Out of stock

20

WASHER, LOCK (25G)

90215-14186-00

—
Out of stock

21

NUT (5H0)

90170-14284-00

1
Out of stock

22

PUSH LEVER ASSEMBLY

1KH-16380-01-00

1
Out of stock

23

WASHER, PLATE 3411117500

90201-08087-00

—
Out of stock

24

SCREW 425163430000

90149-08067-00

—
Out of stock

25

SPRING, TORSION

90508-16708-00

1
Out of stock

26

ROD, PUSH 2

5H0-16357-00-00

—
Out of stock

27

BALL

93505-16006-00

—
Out of stock

28

BEARING, CYLINDRICAL (3Y1)

93315-31428-00

—
Out of stock

29

OIL SEAL (3Y1)

93102-14209-00

—
Out of stock

30

CIRCLIP (3Y1)

93420-28055-00

—
Out of stock
