1986 Yamaha TT225 (TT225S) Carburetor Diagram

← All diagrams

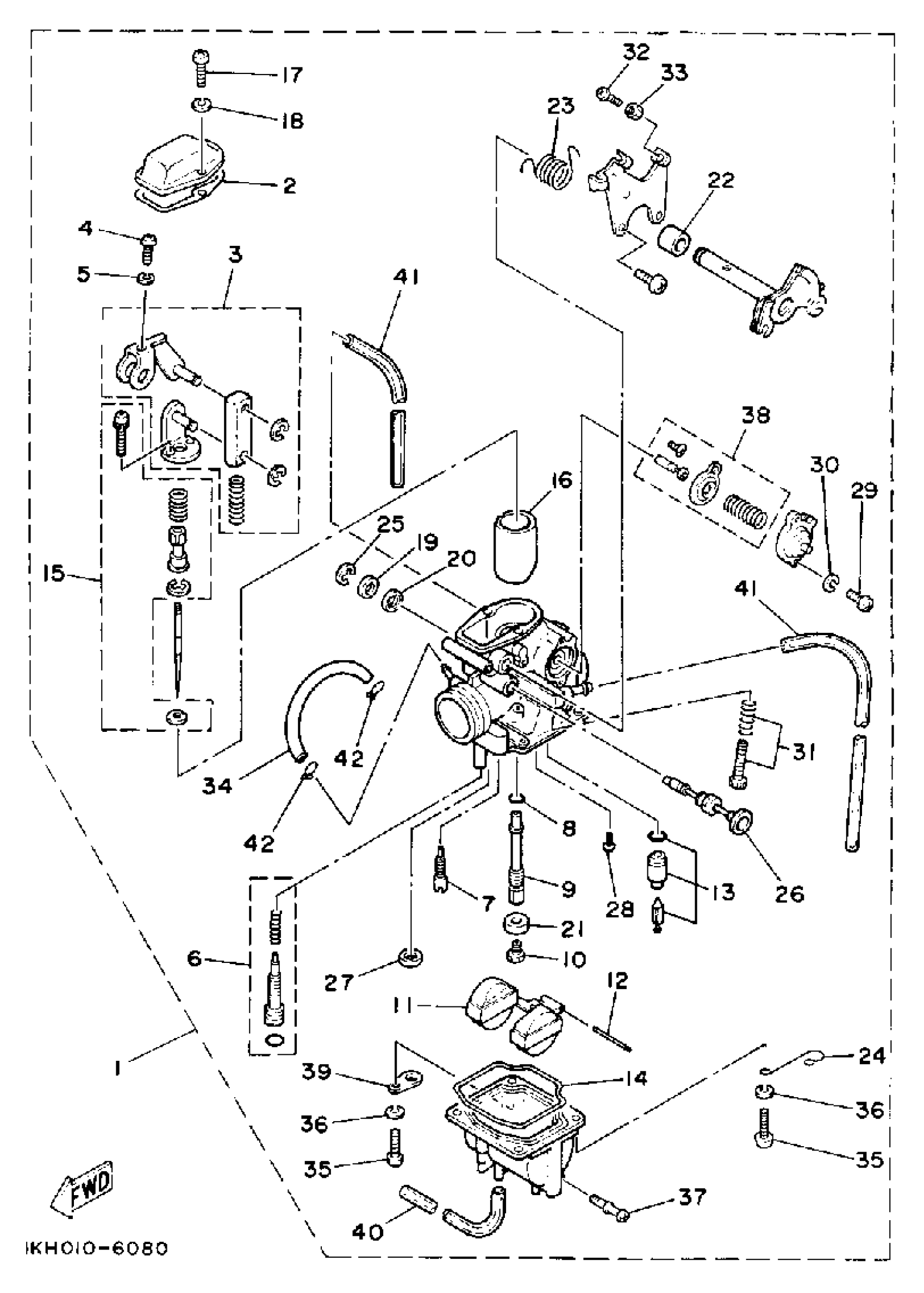

Find the part on the Carburetor diagram for your 1986 Yamaha TT225 (TT225S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha TT225 (TT225S) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

1RH-14301-00-00

1
Out of stock

2

GASKET

5Y1-14198-00-00

1
Out of stock

3

. CONNECTER COMP

1JK-14291-00-00

1
Out of stock

4

SCREW, PANHEAD (796)

98580-04016-00

1
Out of stock

5

YBS67-4 WASHER, SPRING

92990-04100-00

1
Out of stock

6

PILOT SCREW SET

50M-14105-00-00

—
Out of stock

7

JET, PILOT (#42)

30X-14342-21-00

1
Out of stock

8

GASKET

360-24512-00-00

1
Out of stock

9

. NOZZLE, MAIN

1KH-14341-00-00

1
Out of stock

10

JET, MAIN (# 118)

288-14343-59-00

1
Out of stock

11

FLOAT

5Y1-14385-00-00

1
Out of stock

12

. PIN, FLOAT

6E5-14386-01-00

1
Out of stock

13

NEEDLE VALVE SET

1KH-14107-00-00

—
Out of stock

14

GASKET, FLOAT CHAMBER

5Y1-14384-00-00

1
Out of stock

15

. NEEDLE SET

1KH-1490J-00-00

1
Out of stock

16

VALVE, THROTTLE 1

(1KH-14312-27-00)

1
Out of stock

17

SCREW, PAN HEAD(GA5)

98580-04014-00

—
Out of stock

18

WASHER, PLAIN (646)

92990-04600-00

—
Out of stock

19

. WASHER, PLAIN

5Y1-14357-00-00

1
Out of stock

20

O-RING

5Y1-14572-00-00

—
Out of stock

21

WASHER, MAIN JET

1KH-14153-00-00

—
Out of stock

22

WASHER, PLAIN

(1JK-14357-00-00)

1
Out of stock

23

SPRING, THROTTLE

(1KH-14131-00-00)

1
Out of stock

24

PLATE

42U-14146-00-00

—
Out of stock

25

CLIP

(1KH-14159-00-00)

1
Out of stock

26

. PLUNGER, STARTER

1KH-14371-00-00

1
Out of stock

27

GASKET

5Y1-14536-00-00

—
Out of stock

28

SCREW, BIND(6L2)

98980-04006-00

1
Out of stock

29

SCREW, PAN HEAD (E56)

98580-04010-00

—
Out of stock

30

WASHER, PLAIN (646)

92990-04600-00

—
Out of stock

31

. THROTTLE SCREW SET

3WP-14103-00-00

1
Out of stock

32

. SCREW, PAN HEAD

98580-04020-00

1
Out of stock

33

NUT

30X-14358-00-00

—
Out of stock

34

PIPE

1KH-14149-00-00

—
Out of stock

35

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

36

WASHER, PLAIN (646)

92990-04600-00

—
Out of stock

37

PLUG, SCREW

5Y1-14115-00-00

—
Out of stock

38

DIAPHRAGM SET 1

5Y1-1490A-00-00

—
Out of stock

39

PLATE

5Y1-14146-00-00

—
Out of stock

40

PIPE

5Y1-14396-00-00

—
Out of stock

41

PIPE

5Y1-14197-00-00

—
Out of stock

42

CLIP

5Y1-14159-00-00

—
Out of stock
