1977 Suzuki TS400 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1977 Suzuki TS400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

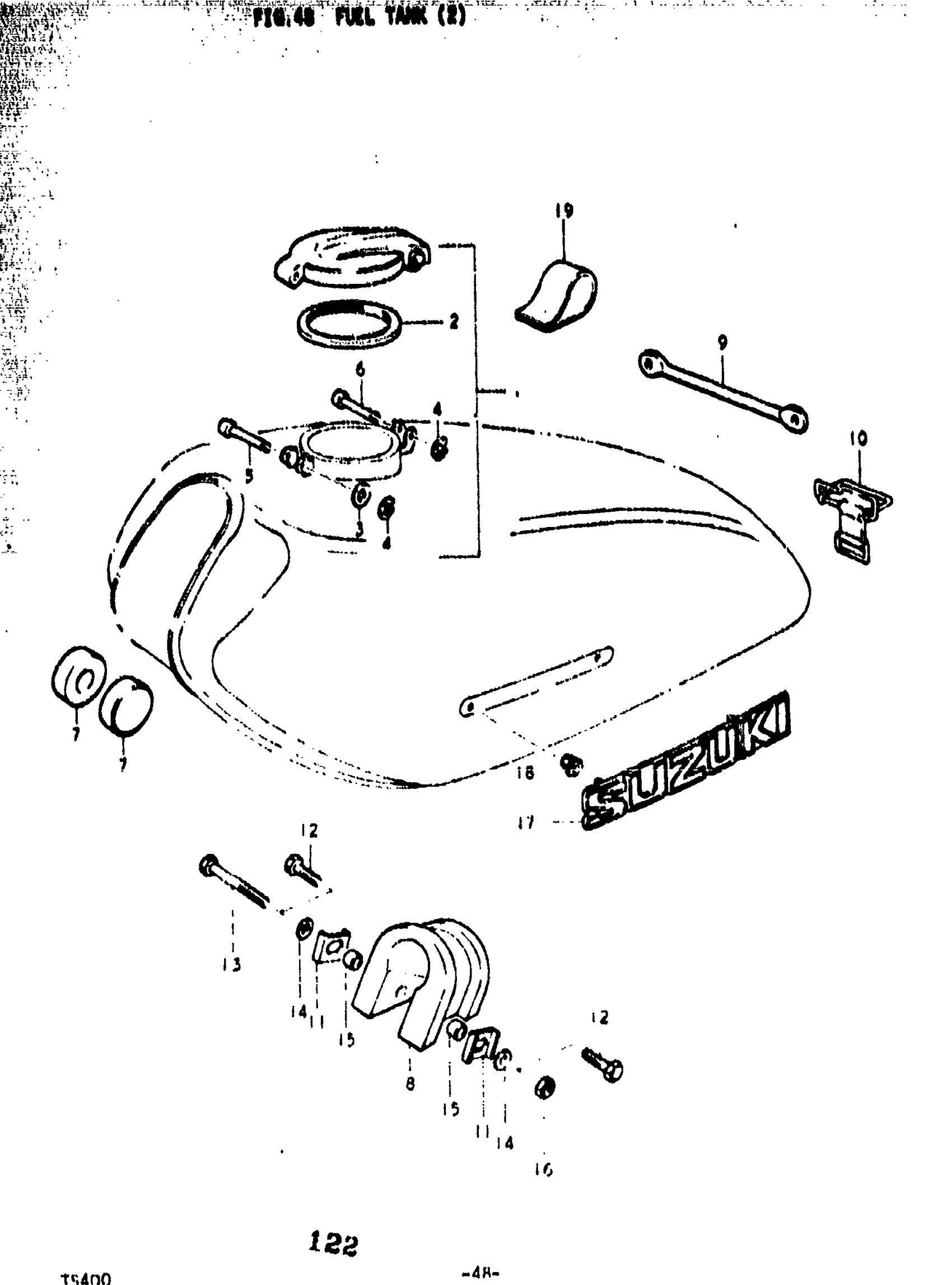

1977 Suzuki TS400 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP ASSY,FUEL T | Includes Item(s) 2 - 3 This part replaces 44200-33011.

44200-33012

1
Out of stock

2

1

$9.56

In stock

3

WASHER

44238-33010

2
Out of stock

4

'E. RING | Includes Item(s) 5 - 6

09383-02003

2
Out of stock

5

PIN

44239-33010

1
Out of stock

6

PIN

44233-33010

1
Out of stock

7

CUSHION This part replaces 09329-10007.

09329-10026

2
Out of stock

8

CUSHION, FULE TANK REAR

44541-30000

1
Out of stock

9

BAND | K

09462-00057

1
Out of stock

10

BAND | L,M,A,B

09462-00064

1
Out of stock

11

PLATE, REAR CUSHION

44549-30000

2
Out of stock

12

2

$2.10

In stock

13

1

$3.30

In stock

14

.WASHER This part replaces 08322-11068.

08322-0106B

2
Out of stock

15

SPACER This part replaces 09180-06032.

09180-06246

2
Out of stock

16

1

$1.82

In stock

17

EMBLEM | K

68111-28600

2
Out of stock

18

NUT | K

09148-04005

4
Out of stock

19

BAND, FUEL TANK | K

44544-32000

1
Out of stock
