1977 Suzuki TS400 Air Cleaner (L Diagram

← All diagrams

Find the part on the Air Cleaner (L diagram for your 1977 Suzuki TS400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

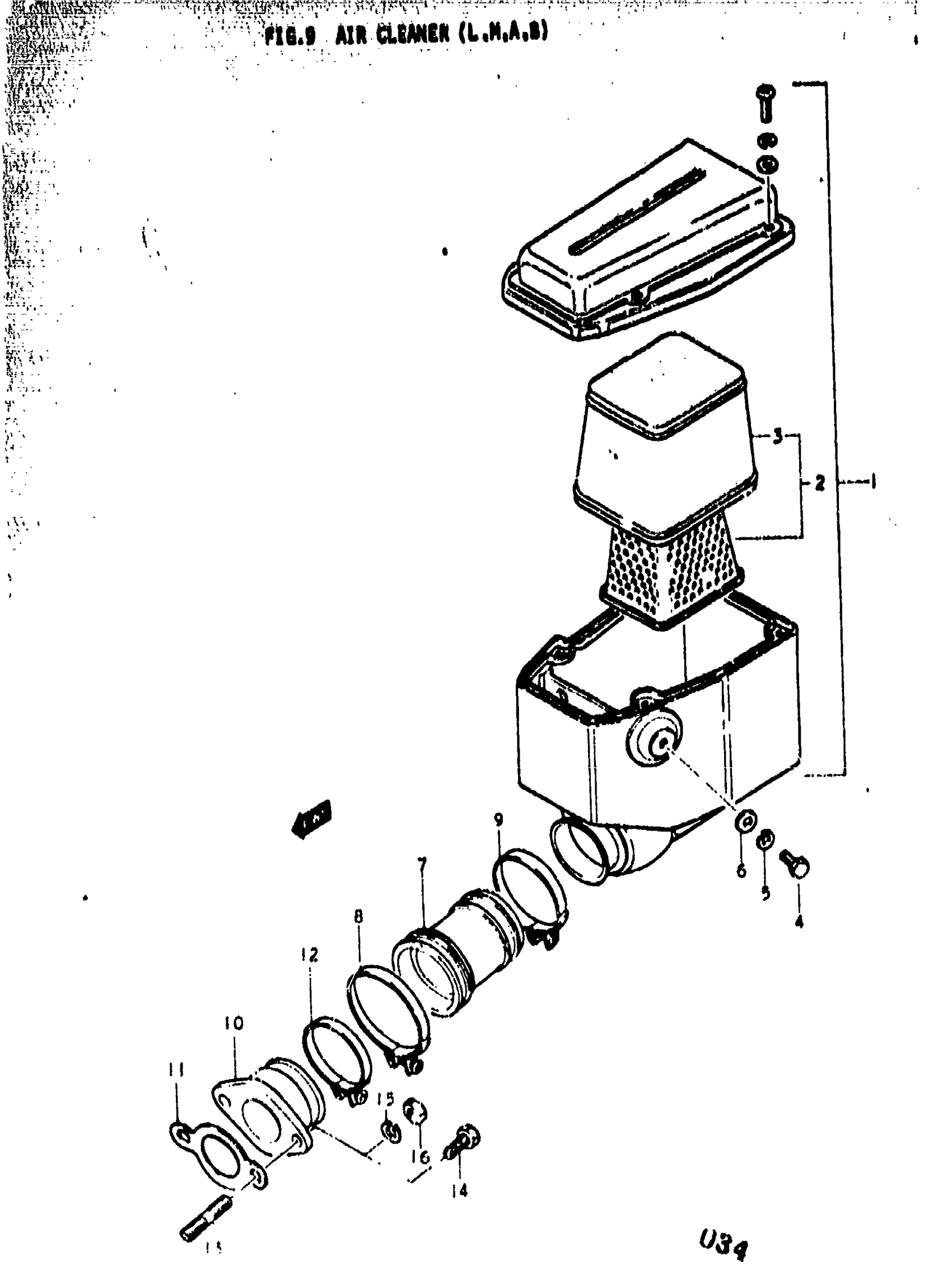

1977 Suzuki TS400 Air Cleaner (L Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | L; TO 13700-32212

13700-32211

—
Out of stock

1

CLEANER ASSY, AIR | M,A,B; Includes Item(s) 2 - 3

13700-32212

—
Out of stock

2

FILTER ASSY

13780-32210

1
Out of stock

3

ELEMENT | L,M; TO 13781-32211 This part replaces 13781-32210.

13781-32211

1
Out of stock

3

ELEMENT | A,B

13781-32211

1
Out of stock

4

2

$2.10

In stock

5

2

$2.28

In stock

6

2

$1.84

In stock

7

HOSE, AIR INLET | L,M; TO 13881-32201

13881-32200

—
Out of stock

7

HOSE, AIR INLET | A,B; TO 13881-32201

13881-32600

1
Out of stock

8

CLAMP (1)

09402-68306

1

$4.63

In stock

9

CLAMP (2) | FROM 09402-58304

09402-58306

1
Out of stock

10

PIPE, INTAKE | L,M

13110-32200

1
Out of stock

10

PIPE, INTAKE | A,B

13110-32201

1
Out of stock

11

GASKET, INTAKE PIPE | L,M

13125-15000

1
Out of stock

12

CLAMP

09402-52306

1

$4.85

In stock

13

2

$1.91

In stock

14

BOLT, REAR | M,A,B This part replaces 01122-08208.

01500-08207

2
Out of stock

15

2

$2.28

In stock

16

2

$1.93

In stock
