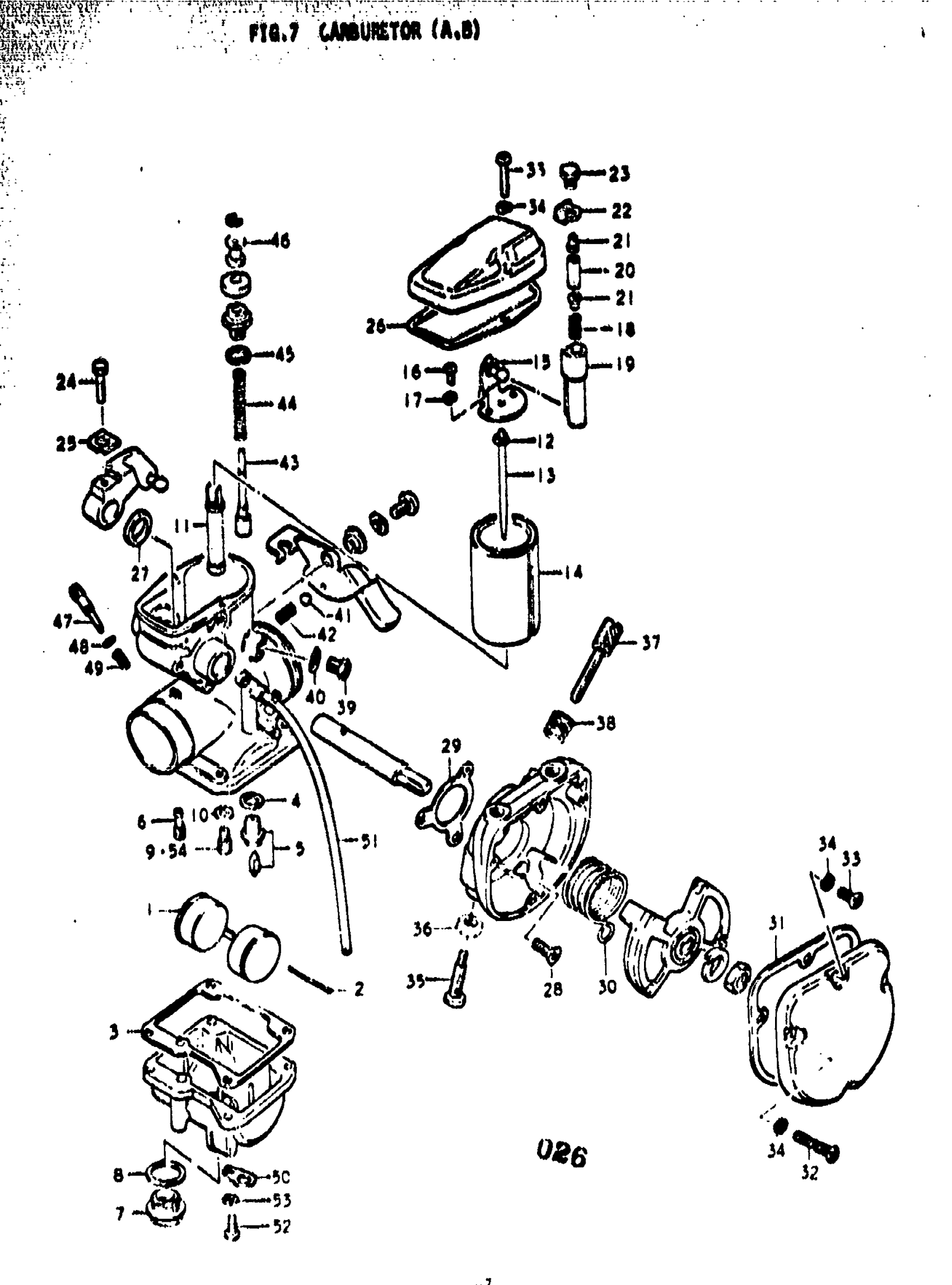

Suzuki TS400 (1977) CARBURETOR (A Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 53 This part replaces 13200-32212.

13200-32213

Unavailable

1

FLOAT

13252-18010

Unavailable

2

.PIN, FLOAT

13254-01010

$3.41

3

GASKET

13251-40600

Unavailable

4

GASKET, VALVE

13392-16600

$1.98

5

VALVE,NEEDLE This part replaces 13370-32210.

13370-41500

Unavailable

6

JET, PILOT (27.5) | #27.5 This part replaces 09492-27001.

09492-27003

$12.70

7

PLUG, DRAIN

13247-32210

$17.20

8

O RING This part replaces 13295-41110.

13249-41310

$4.03

9

JET, MAIN (122.5) | #122.5 This part replaces 09491-24009.

09491-24013

$12.38

10

WASHER

13382-03110

$2.80

11

JET, NEEDLE | P-1

09494-00151

Unavailable

12

CLIP

13394-10010

$6.15

13

NEEDLE, JET | 3F22-3

13383-32600

Unavailable

14

VALVE, THROTTLE

13551-32212

Unavailable

15

BRACKET

13398-43010

Unavailable

16

SCREW This part replaces 02111-04127.

02112-0412A

$1.24

17

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

18

SPRING

13543-43010

Unavailable

19

CONECTOR

13545-32212

Unavailable

20

PIN

13546-30650

Unavailable

21

PIN

13544-43010

Unavailable

22

PLATE

13547-43010

Unavailable

23

SCREW

13548-32212

Unavailable

24

BOLT

13613-30650

Unavailable

25

PLATE

13576-30650

Unavailable

26

GASKET

13266-32212

Unavailable

27

RING

13574-30650

Unavailable

28

SCREW This part replaces 02121-05147.

09126-05005

Unavailable

29

GASKET

13632-30650

Unavailable

30

SPRING

13573-30650

Unavailable

31

GASKET

13631-30650

Unavailable

32

SCREW

02111-04258

Unavailable

33

SCREW This part replaces 02111-04168.

02112-0416A

$1.24

34

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

35

BOLT, GEAR SHIFT LINK This part replaces 13605-32212.

01500-0620A

$1.77

36

.NUT This part replaces 08311-31068.

08310-00067

$1.83

37

ADJUSTER, THROTTLE

13267-30650

Unavailable

38

SPRING

13268-03110

$6.15

39

PLUG

13664-18654

$10.15

40

WASHER

13663-31010

$2.80

41

BALL

13435-33110

$2.21

42

SPRING

13434-30650

$3.38

43

VALVE, STARTER

13411-33110

Unavailable

44

SPRING

13417-18630

$6.77

45

O RING This part replaces 13295-15010.

09280-08014

$1.92

46

BUSHING

13424-33110

$3.97

47

SCREW, PILOT AL

13269-15011

Unavailable

48

O RING

13295-33010

$4.09

49

SPRING

13268-35010

$4.09

50

PLATE

13693-32212

Unavailable

51

HOSE (3.5X6.5X600) This part replaces 13686-16600.

09351-35653-600

$4.19

52

SCREW This part replaces 02112-05168.

02112-05167

$1.97

53

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

54

JET, MAIN (117.5) | #117.5 OPT This part replaces 09491-23004.

09491-23017

$12.87

54

JET, MAIN (120) | #120 OPT This part replaces 09491-24005.

09491-24016

$12.38

54

JET, MAIN (125) | #125 OPT This part replaces 09491-25001.

09491-25010

$11.98

54

JET, MAIN (127.5) | #127.5 OPT This part replaces 09491-25003.

09491-25011

$12.38
