1972 Suzuki TS400 Rear Combination Lamp Diagram

← All diagrams

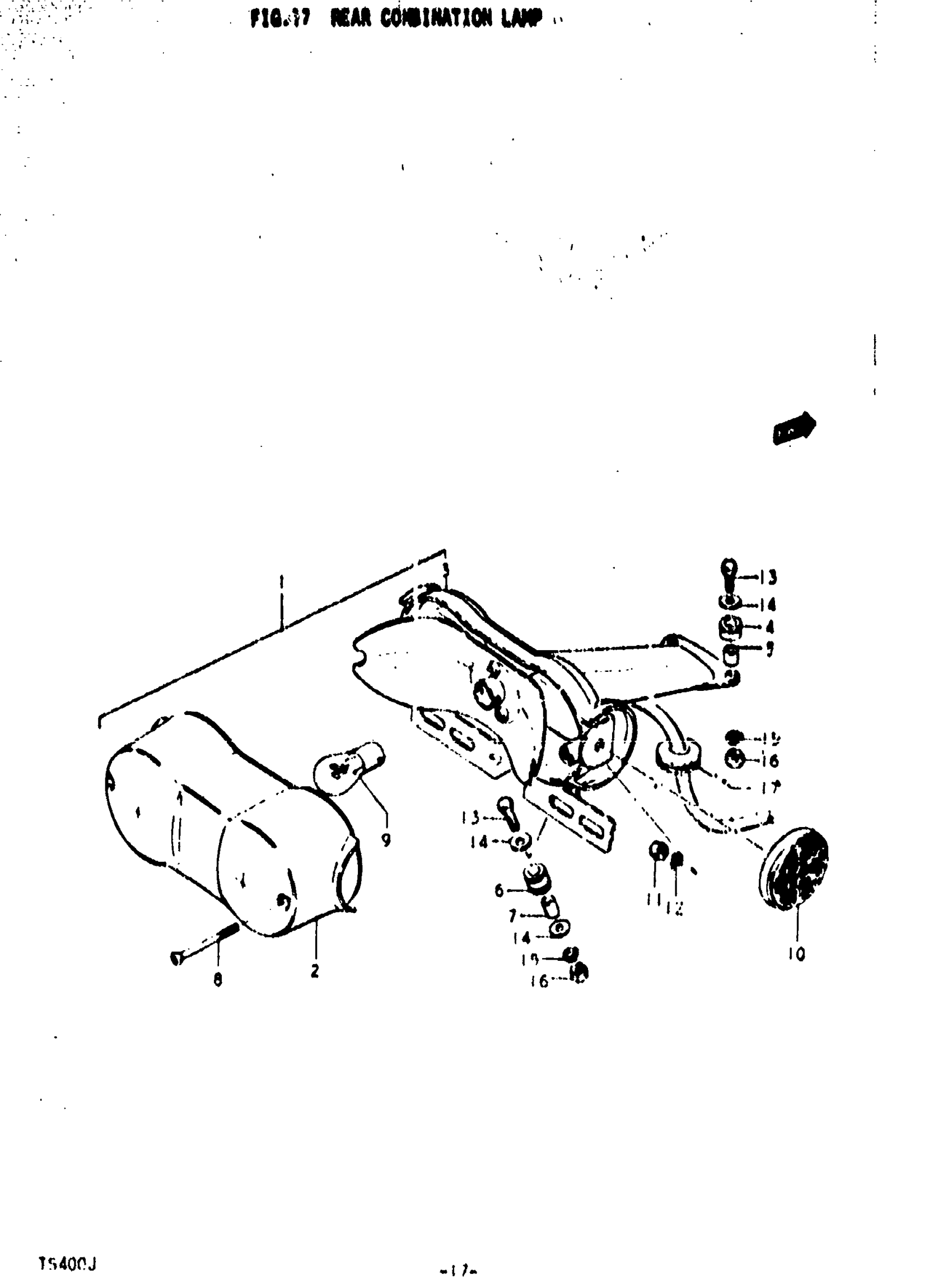

Find the part on the Rear Combination Lamp diagram for your 1972 Suzuki TS400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Suzuki TS400 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | FROM 35000-32806-998; Includes Item(s) 2 - 9

35710-32610

—
Out of stock

2

TAIL LAMP LENS This part replaces 35712-27690.

35712-27671

1
Out of stock

3

HOUSING

35715-29690

1
Out of stock

4

CUSHION

35765-15010

2
Out of stock

5

SPACER This part replaces 35766-15010.

35766-37110

2
Out of stock

6

CUSHION

35765-22210

2
Out of stock

7

SPACER This part replaces 35766-22210.

35766-37120

2
Out of stock

8

SCREW This part replaces 02111-04508.

02112-0450A

2
Out of stock

9

BULB | 12V, 32/4CP

09471-12035

1
Out of stock

10

REFLEX REFLECTOR

35970-31610

2
Out of stock

11

NUT This part replaces 08311-11058.

08310-00057

2
Out of stock

12

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

13

BOLT, REAR This part replaces 01112-06308.

01500-06307

4
Out of stock

14

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

6
Out of stock

15

4

$2.28

In stock

16

.NUT This part replaces 08311-11068.

08310-00067

4
Out of stock

17

GROMMET

09308-07002

2
Out of stock
