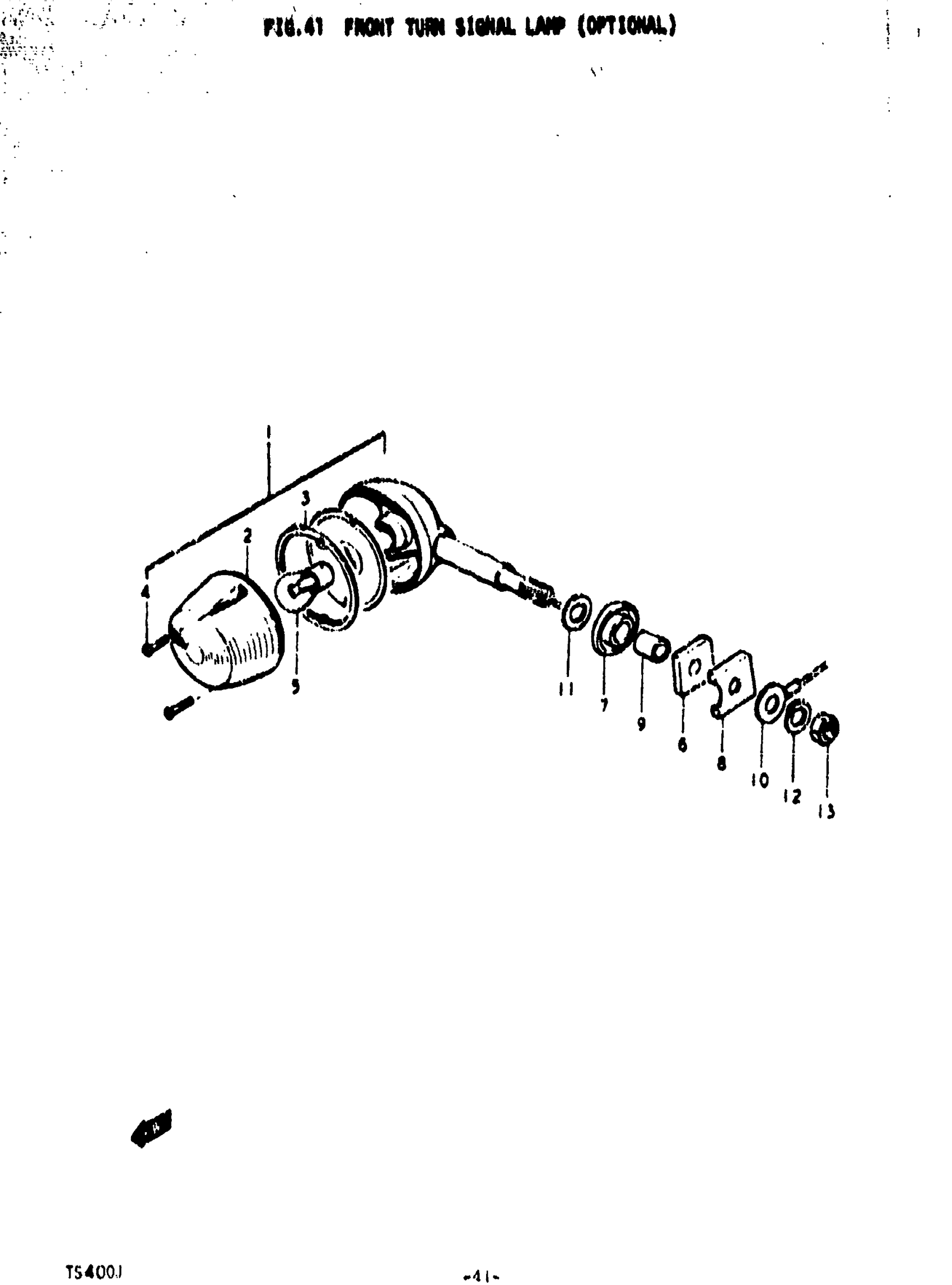

Suzuki TS400 (1972) FRONT TURN SIGNAL LAMP (OPTIONAL) Diagram

#

Description

Price

1

LAMP ASSY, FRONT TURN SIGNAL | FROM 35601-32010-999; Includes Item(s) 2 - 5

35601-32010

Unavailable

2

LENS

35612-12611

$11.44

3

GASKET

35613-03610

Unavailable

4

SCREW This part replaces 02133-03167.

02132-03167

$1.30

5

BULB | 12V, 32CP

09471-12006

$3.64

6

CUSHION (1) | TO 35690-30300

35690-32000

Unavailable

7

CUSHION (3)

35692-32000

Unavailable

8

PLATE, TURN SIGNAL | TO 35693-30300

35693-32000

Unavailable

9

SPACER, TURN SIGNAL | 10.3x13x21.3

09180-10037

Unavailable

10

PLATE, EARTH CORD

36660-32000

Unavailable

11

WASHER | 10.5x30x1.6

09160-10022

Unavailable

12

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

13

NUT This part replaces 08312-11108.

08310-00107

$2.19
