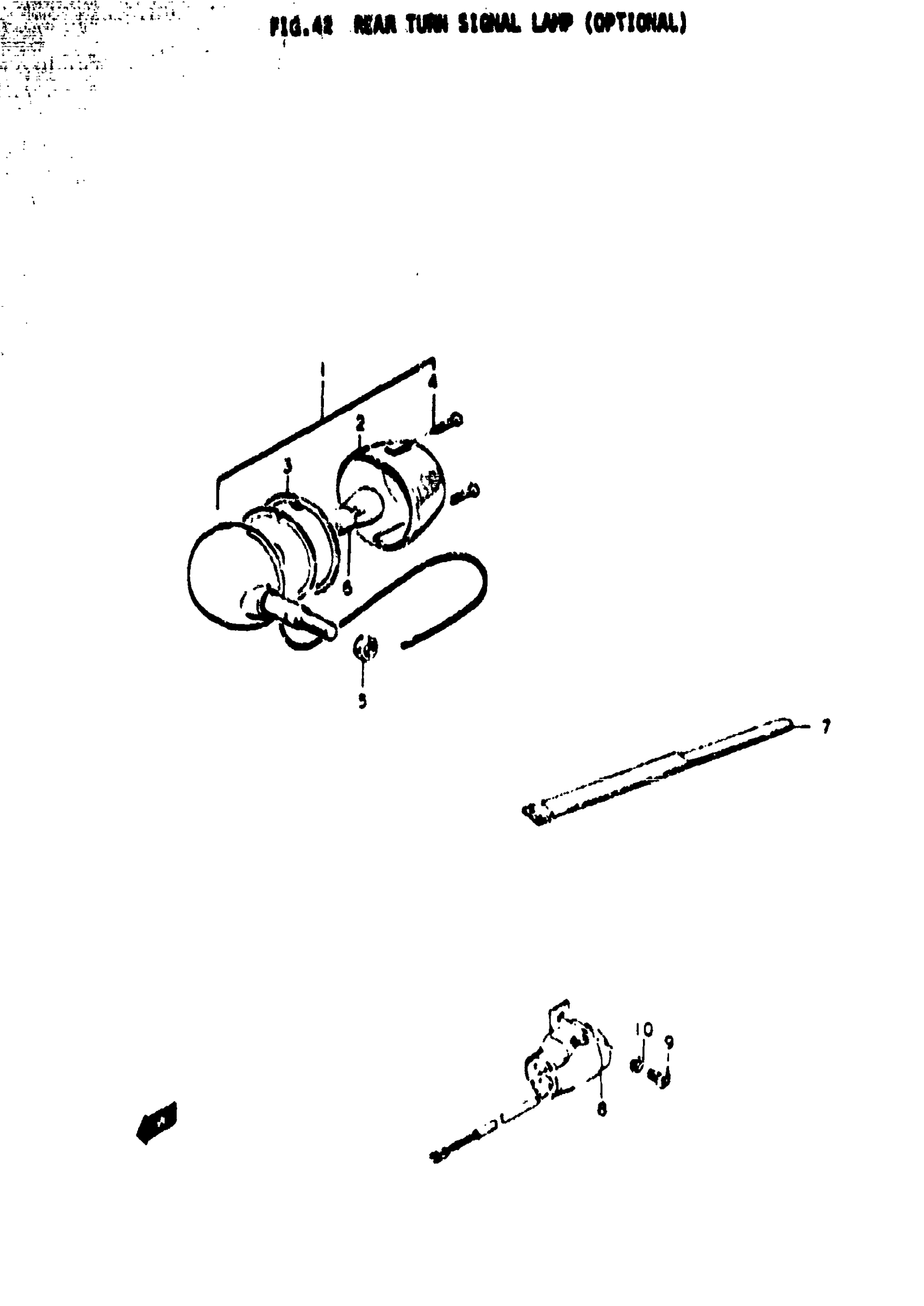

Suzuki TS400 (1972) REAR TURN SIGNAL LAMP (OPTIONAL) Diagram

#

Description

Price

1

LAMP ASSY,RR TR | TO 35603-15610; Includes Item(s) 2 - 6 This part replaces 35603-18610-999.

35603-27670-999

Unavailable

2

LENS | RED

35652-18700

Unavailable

3

GASKET

35613-03610

Unavailable

4

SCREW This part replaces 02131-03167.

02132-03167

$1.30

5

NUT This part replaces 08312-31108.

08310-00107

$2.19

6

BULB | 12V, 32CP

09471-12006

$3.64

7

CLAMP This part replaces 09407-11302.

09407-18302

$2.27

8

TURN SIGNAL REL This part replaces 38610-32210.

38610-322V0

Unavailable

9

SCREW This part replaces 02112-06168.

02112-06167

$1.43

10

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83
