1976 Suzuki TS250 Front Wheel (TS250K Diagram

← All diagrams

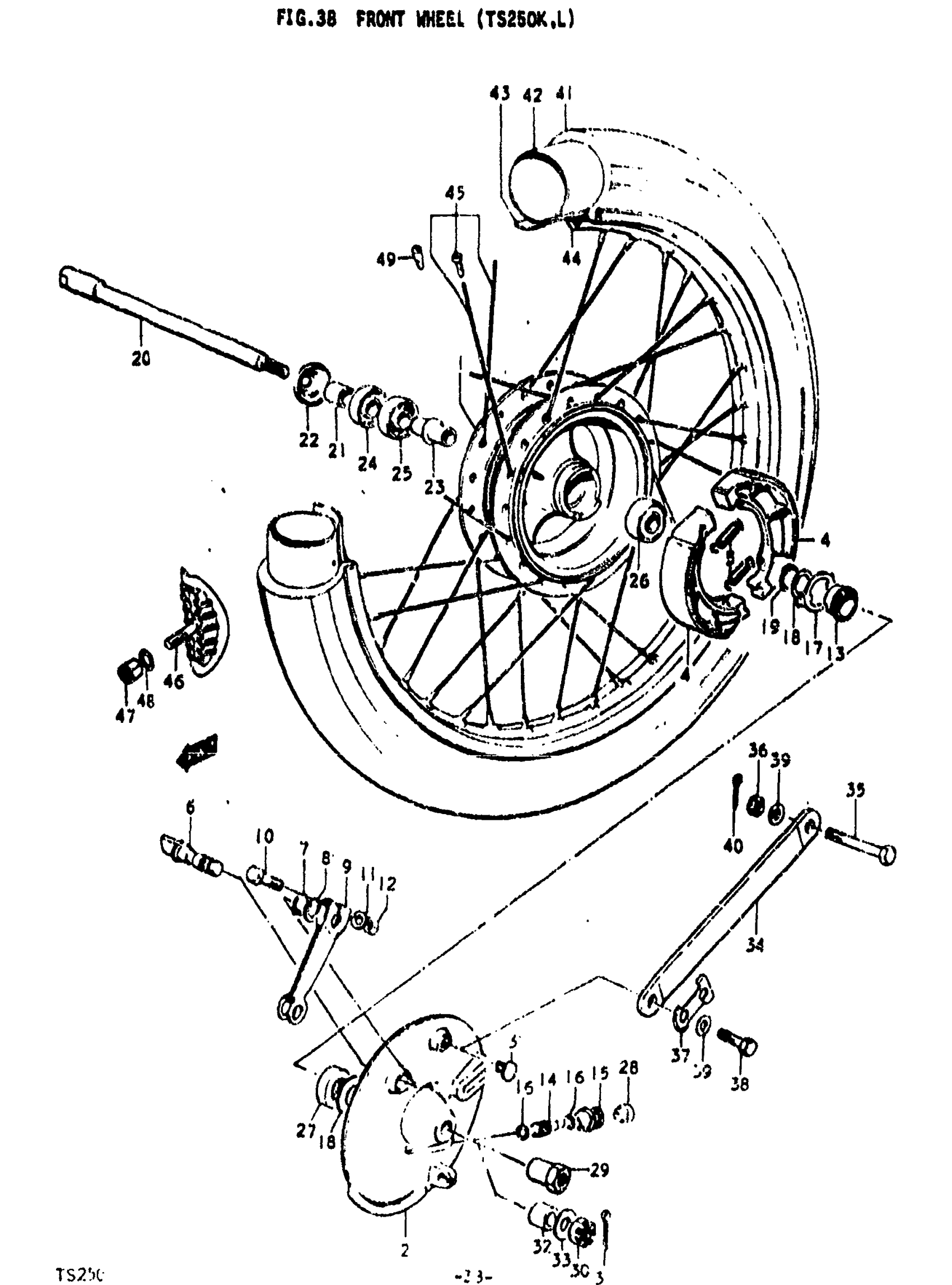

Find the part on the Front Wheel (TS250K diagram for your 1976 Suzuki TS250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Suzuki TS250 Front Wheel (TS250K Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, WHEEL

54110-30000

1
Out of stock

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 This part replaces 54200-30830.

54210-30003

1
Out of stock

3

CAP

09250-08005

1

$2.66

In stock

5

SPRING, BRAKE SHOE

55420-30000

2
Out of stock

6

CAM, BRAKE | K; TO 54440-30001

54440-30000

—
Out of stock

6

CAM, BRAKE | L; TO 54440-08001

54440-30001

—
Out of stock

9

NO DESCRIPTION AVAILABLE This part replaces 54451-30000.

54451-30001

1
Out of stock

10

BOLT This part replaces 01112-06408.

01500-0640B

1
Out of stock

11

1

$1.84

In stock

12

1

$1.82

In stock

13

GEAR, SPEEDOMETER | K; NT:27

54611-15000

1
Out of stock

13

GEAR, SPEEDOMETER (NT:24) | L; NT:24 This part replaces 54611-30301.

54611-30302

1
Out of stock

14

PINION, SPEEDOMETER | K; NT:9

54621-11000

1
Out of stock

14

PINION, SPEEDOMETER | L; NT:6

54621-30300

1
Out of stock

15

BUSH This part replaces 54632-11020.

54632-49200

1
Out of stock

17

1

$14.30

In stock

18

2

$2.68

In stock

19

CIRCLIP This part replaces 08331-11229.

08331-31229

1
Out of stock

20

AXLE, FRONT | K

54711-30700

1
Out of stock

20

AXLE, FRONT | L; TO 52711-33002 USED WITH 09180-15037

54711-30701

—
Out of stock

21

SPACER | 15x22x22.4

09180-15018

1
Out of stock

22

COVER, DUST SEAL

54892-33000

1
Out of stock

23

SPACER

54730-08100

1
Out of stock

24

OIL SEAL | 22x33x10

09284-22001

1
Out of stock

25

BEARING

08113-60020

1

$15.57

In stock

26

1

$15.50

In stock

27

SEAL,OIL(26X38X | 26x38x6 This part replaces 09285-26001.

09285-26005

1
Out of stock

28

OIL SEAL | 4.8x10x4

09289-08001

—
Out of stock

29

NUT, FRONT AXLE

54721-30700

1
Out of stock

30

1

$2.60

In stock

31

PIN | L This part replaces 04111-30308.

04111-3030A

1
Out of stock

32

SPACER | L

09180-15035

1
Out of stock

33

WASHER | L This part replaces 08322-21128.

08322-01127

1
Out of stock

34

LINK, FRONT TORQUE

54311-30700

1
Out of stock

35

BOLT | Includes Item(s) 36

09101-08008

1
Out of stock

36

1

$3.30

In stock

37

WASHER

53312-16501

1
Out of stock

38

BOLT | 8x19.5

09100-08013

1
Out of stock

39

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

40

1

$1.31

In stock

41

TIRE, FRONT | K; 3.25-19

55100-16411

—
Out of stock

41

TIRE, FRONT | L; 3.00-21

55100-30600

1
Out of stock

42

1

$44.78

In stock

44

RIM, WHEEL | K; 1.60A-19

55311-30020

1
Out of stock

44

RIM, WHEEL | L; 1.60A-21

55311-30700

1
Out of stock

45

SPOKE SET | K

55302-30805

1
Out of stock

45

SPOKE SET | L

55300-30809

1
Out of stock

47

NUT

09159-08016

1
Out of stock

48

WASHER

09159-08016

1
Out of stock

49

BALANCER, WHEEL | KL

55411-30000

2
Out of stock
