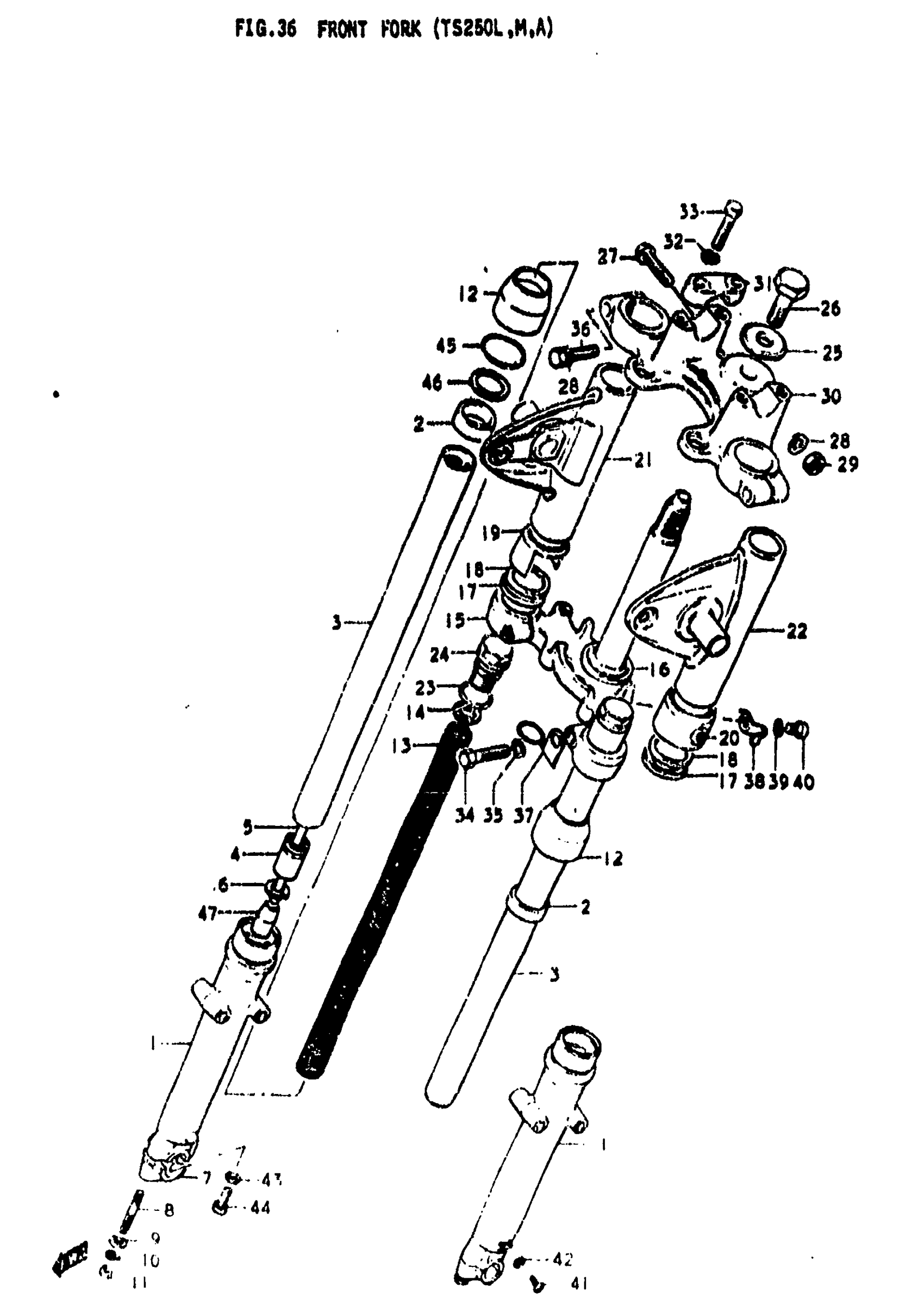

Find the part on the Front Fork (TS250L diagram for your 1976 Suzuki TS250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Suzuki TS250 Front Fork (TS250L Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

FORK ASSY, FRONT | L; TO 51100-30310-126

51100-30310-019

—
Out of stock

0

26FORK ASSY, FRONT | M; TO 51100-30311-126

51100-30310-1

—
Out of stock

0

NO DESCRIPTION AVAILABLE | M; Includes Item(s) 1 - 47 This part replaces 51100-30311-291.

51106-30311

1
Out of stock

1

OUTER TUBE

51130-30700

2
Out of stock

2

OIL SEAL

51153-16511

2
Out of stock

3

INNER TUBE

51111-30310

2
Out of stock

4

PISTON | L,M

51112-16510

2
Out of stock

4

PISTON | A

51112-16511

—
Out of stock

5

CYLINDER | L,M

51146-30702

—
Out of stock

5

CYLINDER | A

51146-30703

2
Out of stock

6

RING | L,M

51118-16510

2
Out of stock

6

RING | A

51118-16511

2
Out of stock

7

HOLDER, FRONT AXLE

51132-16510

2
Out of stock

8

STUD BOLT (L:30) | L,M This part replaces 51137-31010.

09108-08142

4
Out of stock

8

STUD BOLT (L:30) | A This part replaces 01421-08308.

09108-08142

4
Out of stock

9

WASHER This part replaces 08322-21088.

08322-01087

4
Out of stock

10

4

$2.28

In stock

11

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

4
Out of stock

12

DUST SEAL

51173-18510

2
Out of stock

13

SPRING

51171-30601

2
Out of stock

14

GUIDE, SPRING | A

51172-34110

—
Out of stock

15

STEERING, TEM

51410-30601

1
Out of stock

16

OUTER RACE, LOWER

51621-33001

1
Out of stock

17

GUIDE, COVER

51558-30010

2
Out of stock

18

CUSHION, COVER GUIDE

51553-30010

2
Out of stock

19

COVER, STEERING STEM RH

51554-30011

1
Out of stock

20

COVER, STEERING STEM LH

51557-30011

—
Out of stock

21

BRACKET, HEADLAMP HOUSING RH | L

51530-30611

1
Out of stock

21

NO DESCRIPTION AVAILABLE | M This part replaces 51530-30612-126.

51500-30830-126

1
Out of stock

21

NO DESCRIPTION AVAILABLE | A This part replaces 51530-30612-291.

51500-30830-126

1
Out of stock

22

BRACKET, HEADLAMP HOUSING LH | L

51540-30611

1
Out of stock

22

NO DESCRIPTION AVAILABLE | M This part replaces 51540-30612-126.

51500-30830-126

1
Out of stock

22

NO DESCRIPTION AVAILABLE | A This part replaces 51540-30612-291.

51500-30830-126

1
Out of stock

23

O RING

51117-16310

2
Out of stock

24

CAP This part replaces 51351-30010.

51351-40210

2
Out of stock

25

WASHER | L,M

51356-22011

1
Out of stock

25

WASHER | A

51356-22012

1
Out of stock

26

BOLT This part replaces 51351-20010.

51351-29400

1
Out of stock

27

BOLT

51451-15010

1
Out of stock

28

LOCK WASHER | L This part replaces 08321-21108.

08321-01107

1
Out of stock

29

NUT This part replaces 08312-12108.

08310-00107

1
Out of stock

30

STEERING STEM HEAD

51311-30210-019

1
Out of stock

31

CLAMP, HANDLEBAR UPPER This part replaces 56211-27210-019.

56211-29320-291

2
Out of stock

32

4

$2.28

In stock

33

BOLT This part replaces 01221-08357.

01204-08357

4
Out of stock

34

BOLT, STEERING STEM

51451-28012

2
Out of stock

35

LOCK WASHER This part replaces 08321-21128.

08321-01127

2
Out of stock

36

BOLT This part replaces 51451-15113.

01104-10388

2
Out of stock

37

CLIP, CABLE

51455-36010

1
Out of stock

38

CLIP

51453-30011

1
Out of stock

39

1

$2.28

In stock

40

SCREW This part replaces 02112-06108.

02112-06107

1
Out of stock

41

2

$1.20

In stock

42

GASKET

51183-03010

2
Out of stock

43

GASKET

51148-16510

2
Out of stock

44

BOLT

51147-16510

2
Out of stock

45

SNAP RING | M,A

51156-16510

2
Out of stock

46

WASHER | M,A

51115-16510

2
Out of stock

47

PIECE, OIL LOCK | A This part replaces 51195-32111.

51195-38010

2
Out of stock
