1976 Suzuki TS250 Front Fork Diagram

← All diagrams

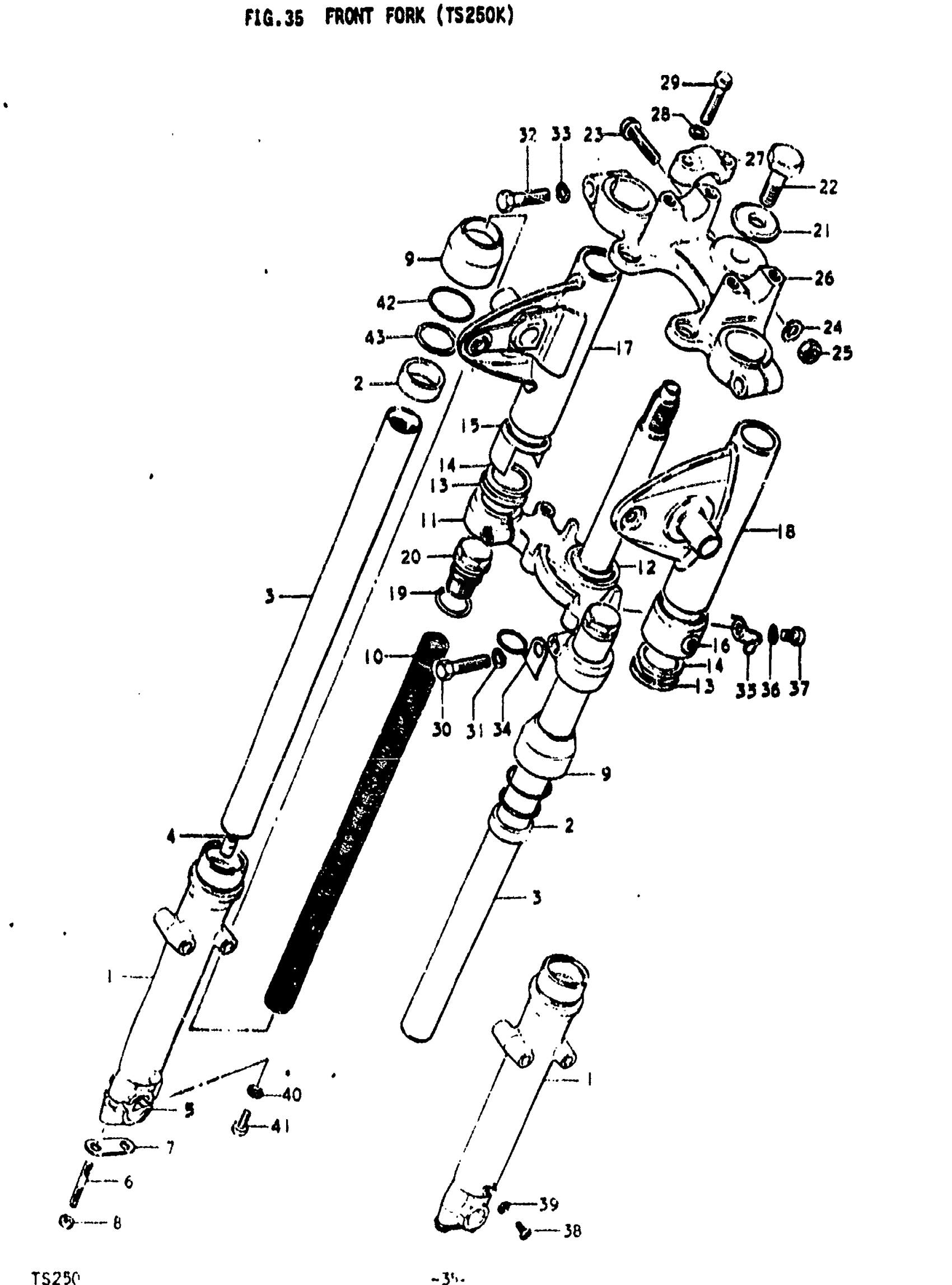

Find the part on the Front Fork diagram for your 1976 Suzuki TS250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Suzuki TS250 Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

FORK ASSY, FRONT | Includes Item(s) 1 - 43

51100-30610-019

1
Out of stock

1

OUTER TUBE

51130-30700

2
Out of stock

2

OIL SEAL

51153-16511

2
Out of stock

3

INNER TUBE

51111-30700

2
Out of stock

4

CYLINDER

51146-30700

2
Out of stock

5

HOLDER, FRONT AXLE

51132-16510

2
Out of stock

6

8X45 STUD BOLT This part replaces 01421-08458.

01421-0845A

4
Out of stock

7

WASHER

51139-16511

2
Out of stock

8

4

$1.93

In stock

9

DUST SEAL

51173-18510

2
Out of stock

10

SPRING This part replaces 51171-30600.

51171-30601

2
Out of stock

11

STEERING STEM | TO 51410-30601 This part replaces 51410-30600.

51410-30601

1
Out of stock

12

OUTER RACE | FROM 51621-00000

51621-08001

1
Out of stock

13

GUIDE, COVER

51558-30010

2
Out of stock

14

CUSHION, COVER JUIDE

51553-30010

2
Out of stock

15

COVER, STEERING STEM RH

51554-30011

1
Out of stock

16

COVER, STEERING STEM LH

51557-30011

—
Out of stock

17

BRACKET, HEADLAMP HOUSING RH

51530-30610

1
Out of stock

18

BRACKET, HEADLAMP HOUSING LH

51540-30610

1
Out of stock

19

O RING

51117-16310

2
Out of stock

20

CAP This part replaces 51351-30010.

51351-40210

2
Out of stock

21

WASHER

51356-22011

1
Out of stock

22

NO DESCRIPTION AVAILABLE | TO 51356-20011 This part replaces 51356-20010.

51356-20011

—
Out of stock

23

BOLT

51451-15010

1
Out of stock

24

LOCK WASHER This part replaces 08321-21108.

08321-01107

1
Out of stock

25

NUT This part replaces 08312-12108.

08310-00107

1
Out of stock

26

STEERING STEM HEAD | TO 51311-30210-019

51311-30011-019

—
Out of stock

27

HOLDER, HANDLEBAR

56211-12111-019

2
Out of stock

28

4

$2.28

In stock

29

BOLT This part replaces 01221-08307.

01204-08307

4
Out of stock

30

BOLT, STEERING STEM | 12x36 TO 51451-28012

51451-28011

—
Out of stock

31

LOCK WASHER This part replaces 08321-21128.

08321-01127

2
Out of stock

32

BOLT, STEERING STEM HEAD | 10x38 TO 51451-15113

51451-15111

—
Out of stock

33

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

34

CLIP, CABLE

51455-28010

—
Out of stock

35

CLIP

51453-30011

1
Out of stock

36

1

$2.28

In stock

37

SCREW This part replaces 02112-06108.

02112-06107

1
Out of stock

38

2

$1.20

In stock

39

GASKET

51183-03010

2
Out of stock

40

GASKET

51148-16510

2
Out of stock

41

BOLT

51147-16510

2
Out of stock

42

RING

51156-16510

2
Out of stock

43

WASHER

51158-16510

2
Out of stock
