1979 Suzuki TS185 Speedometer - Tachometer Diagram

← All diagrams

Find the part on the Speedometer - Tachometer diagram for your 1979 Suzuki TS185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

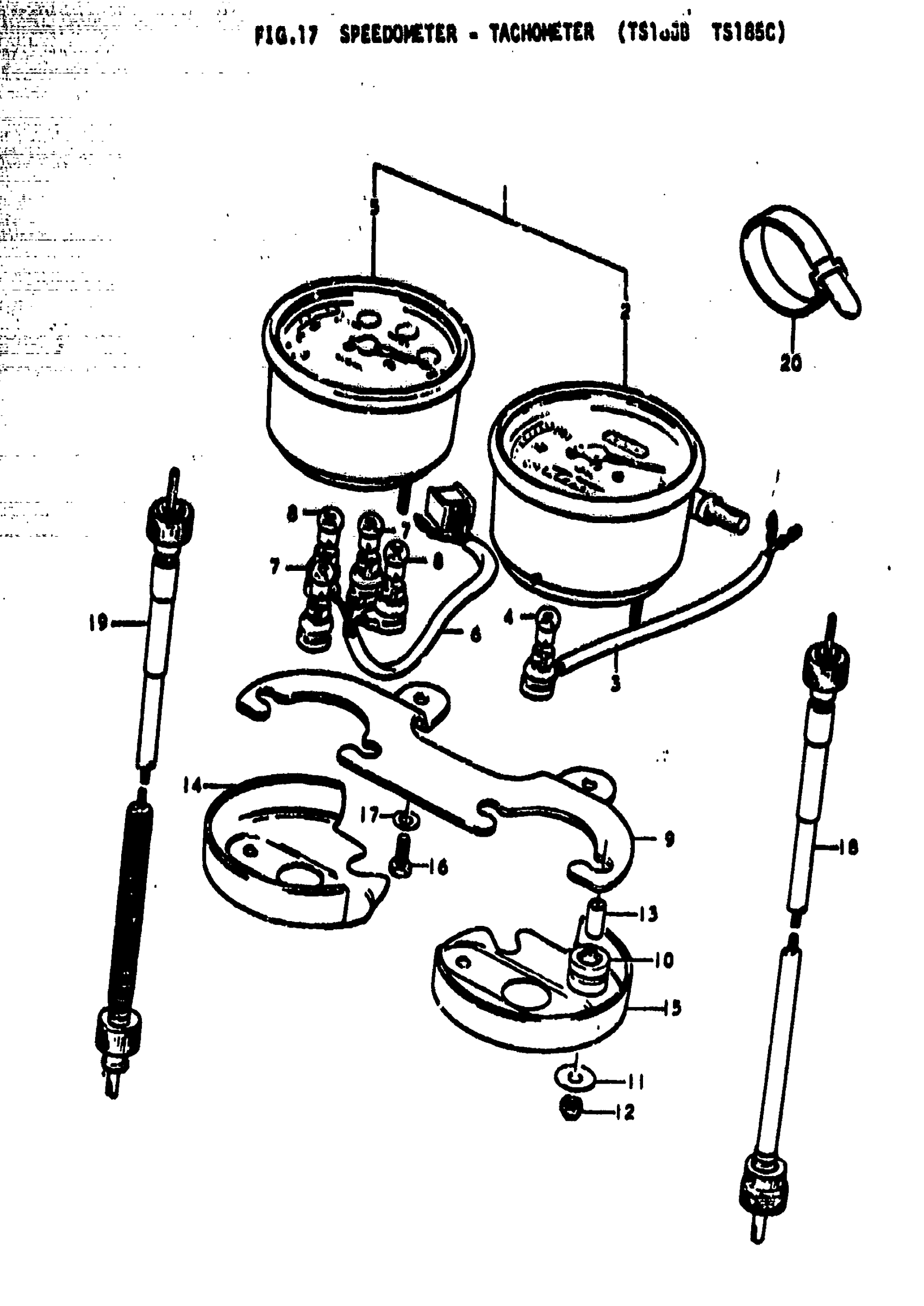

1979 Suzuki TS185 Speedometer - Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | B; MILO SCALO This part replaces 34100-29310.

34100-29333

1
Out of stock

1

NO DESCRIPTION AVAILABLE | C; KLLO & MLLE SCALE; Includes Item(s) 2 - 15 This part replaces 34100-29330.

34100-29333

1
Out of stock

2

NO DESCRIPTION AVAILABLE | B; MLLO SCALE This part replaces 34101-29310.

34101-30512

1
Out of stock

2

NO DESCRIPTION AVAILABLE | C; KLLO & MLLO SCALE This part replaces 34101-30510.

34101-30512

1
Out of stock

3

SOCKET

34170-30640

1
Out of stock

4

BULD | 6V, 3W

09471-06002

1
Out of stock

5

NO DESCRIPTION AVAILABLE | B This part replaces 34201-29300.

34201-29342

1
Out of stock

5

NO DESCRIPTION AVAILABLE | C This part replaces 34201-29301.

34201-29342

1
Out of stock

6

SOCKET

34270-30520

1
Out of stock

7

BULB | 6V, 3W

09471-06002

2
Out of stock

8

BULB | 6V, 1.7W

09471-06001

2
Out of stock

9

BRACKET

34950-29300

1
Out of stock

10

CUSHION This part replaces 34955-30520.

34189-29330

4
Out of stock

11

WASHER (5.5X16X1.2) This part replaces 34181-30520.

09160-05037

4
Out of stock

12

NUT This part replaces 34185-30520.

08313-1005B

4
Out of stock

13

SPACER

34972-29300

4
Out of stock

14

UNDER PLATE, TACHOMETER

34961-30520

1
Out of stock

15

UNDER PLATE, SPEEDOMETER

34960-30520

1
Out of stock

16

2

$2.10

In stock

17

.WASHER This part replaces 08322-11068.

08322-0106B

2
Out of stock

18

CABLE ASSY,SPEE This part replaces 34910-25030.

34910-02901

1
Out of stock

19

CABLE ASSY,TACH | B This part replaces 34940-30031.

34940-29903

1
Out of stock

19

CABLE ASSY,TACH | C This part replaces 34940-32201.

34940-29903

1
Out of stock

20

CLAMP | L:110 This part replaces 09407-11302.

09407-18302

1
Out of stock
