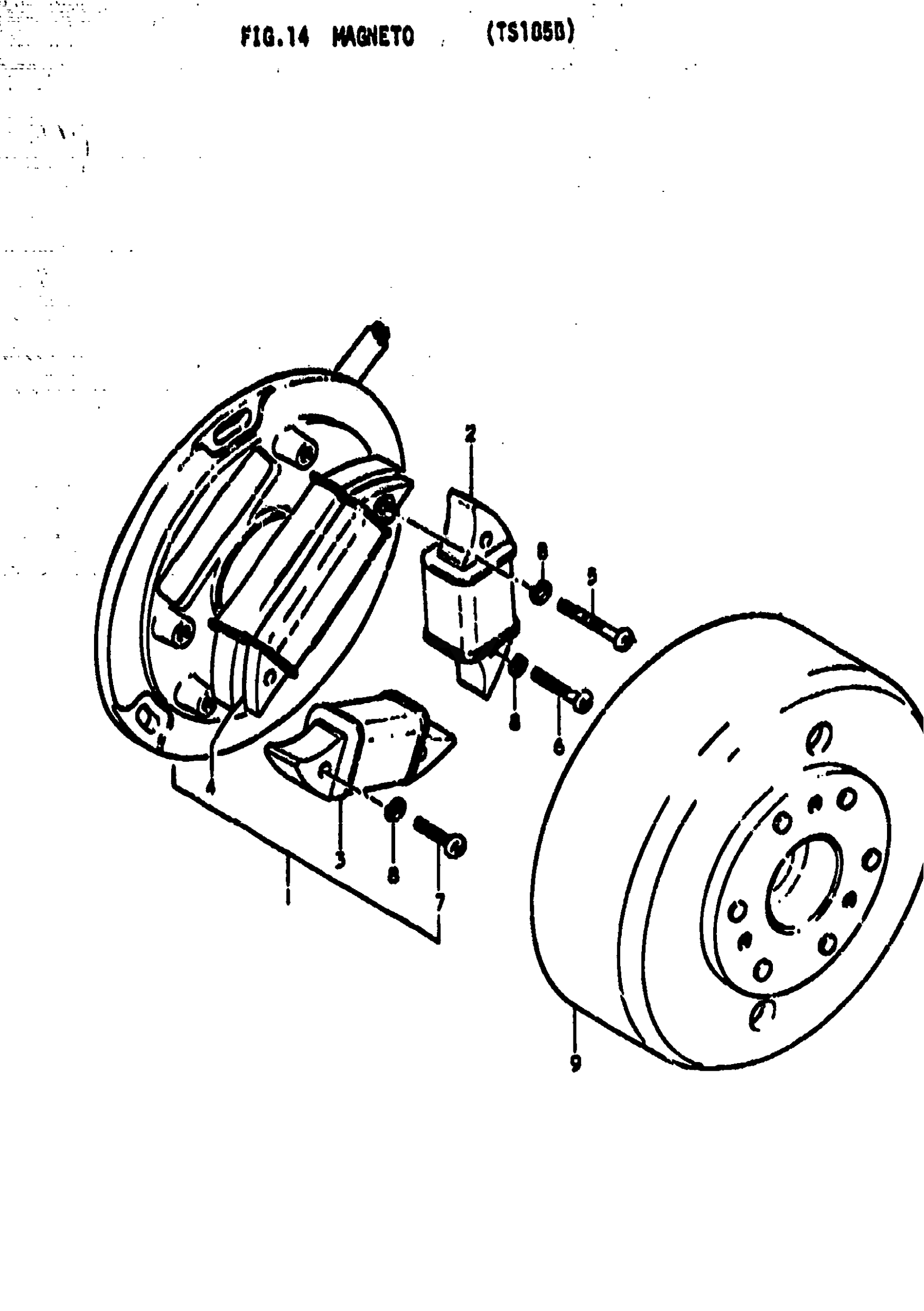

Find the part on the Magneto diagram for your 1979 Suzuki TS185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Suzuki TS185 Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

MAGNETO ASSY | ND; Includes Item(s) 1 - 9

32100-30510

—
Out of stock

1

STATOR ASSY

32101-30510

1
Out of stock

2

COIL, LIGHTING

32120-30510

1
Out of stock

3

COIL, CHARGING This part replaces 32130-30510.

32130-30511

1
Out of stock

4

COIL, IGNITION

32140-30510

1
Out of stock

5

2

$2.23

In stock

6

SCREW This part replaces 02112-05258.

02112-05257

2
Out of stock

7

SCREW This part replaces 02112-05208.

02112-05207

2
Out of stock

8

LOCK WASHER This part replaces 08321-21058.

08321-0105A

6
Out of stock

9

ROTOR

32102-30510

1
Out of stock
