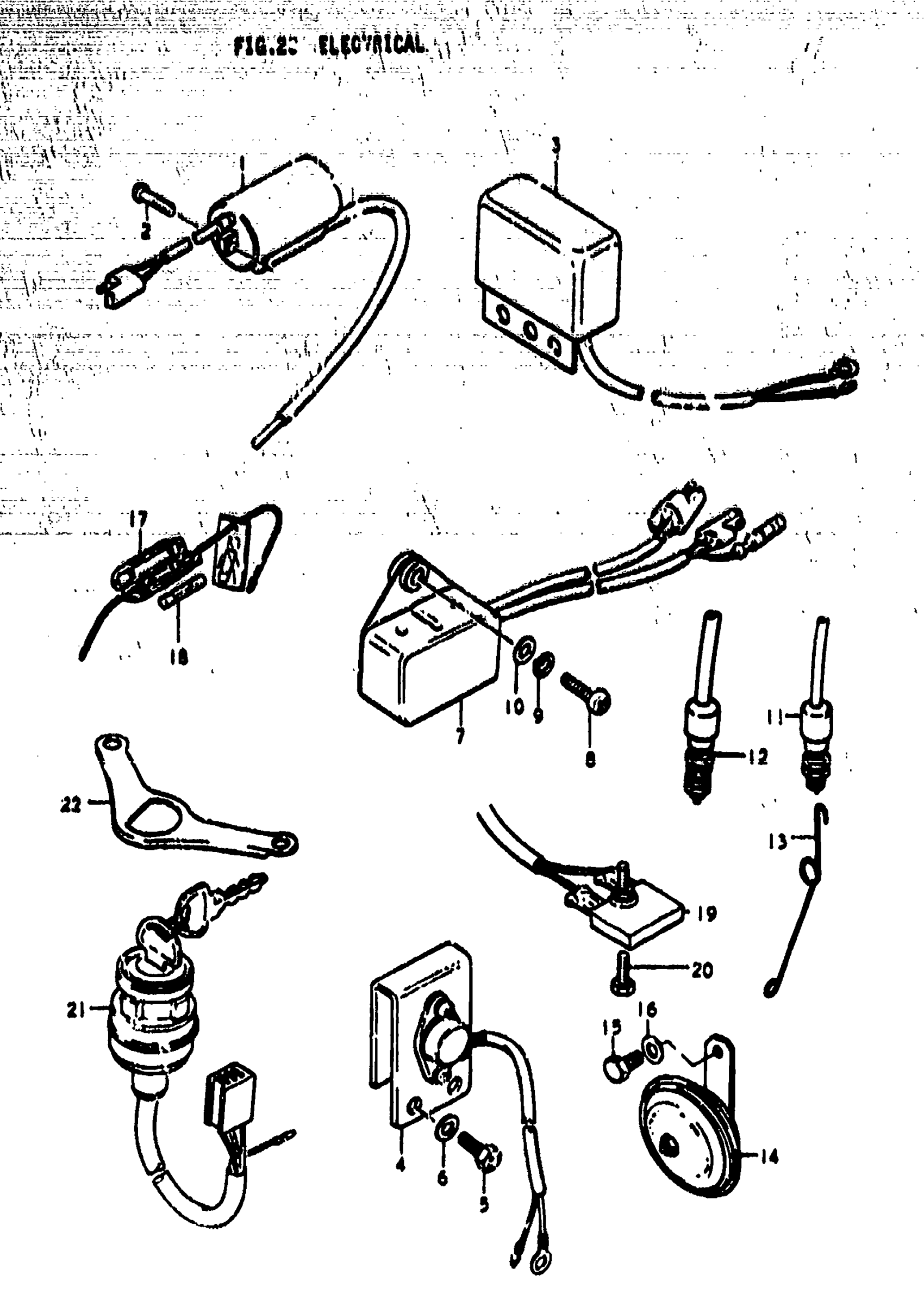

Suzuki TS185 (1979) ELECTRICAL Diagram

#

Description
Price

1

COIL ASSY, IGNITION | KOKUSAN This part replaces 33410-30020.

33410-14120

$109.63

1

COLD ASSY, IGNITION | B; ND

33410-28600

Unavailable

2

SCREW This part replaces 02112-05208.

02112-05207

$2.03

3

REGULATOR ASSY, VALTAGE | KOKUSAN

32500-25600

Unavailable

4

REGULATOR, VOLTAGE | B; NO This part replaces 32500-27600.

32500-25600

Unavailable

5

SCREW

09128-05101

$1.41

6

WASHER This part replaces 08322-21058.

08322-01057

$1.93

7

C.D.I UNIT ASSY | KOKUSAN

32900-30520

Unavailable

7

C.D.I UNIT ASSY | B; ND

32900-30511

Unavailable

8

SCREW This part replaces 02112-06208.

02112-06207

$1.83

9

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

10

WASHER This part replaces 08322-21068.

08322-01067

$1.94

11

SWITCH, REAR BRAKE LAMP This part replaces 37740-19051.

37740-48071

$18.88

12

SWITCH, REAR BRAKE LAMP | N This part replaces 37740-04570.

37740-48071

$18.88

13

SPRING

09448-11004

$2.80

14

HORN ASSY This part replaces 38500-30641.

38500-37310

Unavailable

15

PLUG, DRAIN | C,N This part replaces 01107-08168.

01500-0816B

$2.57

16

WASHER This part replaces 08322-11083.

08322-0108A

$2.18

17

FUSE CASE ASSY | Includes Item(s) 18 This part replaces 36740-15010.

36740-15011

$9.22

18

FUSE | 15A

09481-15001

$2.14

19

DIODE | B This part replaces 32800-19062.

32800-16A00

$22.07

19

DIODE | C,N This part replaces 32800-19063.

32800-16A00

$22.07

20

SCREW This part replaces 02112-05168.

02112-05167

$2.01

21

SWITCH ASSY, IGNITION This part replaces 37110-25318.

37110-25319

$109.65

22

BRACKET, IGNITION SWITCH This part replaces 37115-36000.

37115-36001

Unavailable
