1979 Suzuki TS185 Rear Swinging Arm Diagram

← All diagrams

Find the part on the Rear Swinging Arm diagram for your 1979 Suzuki TS185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

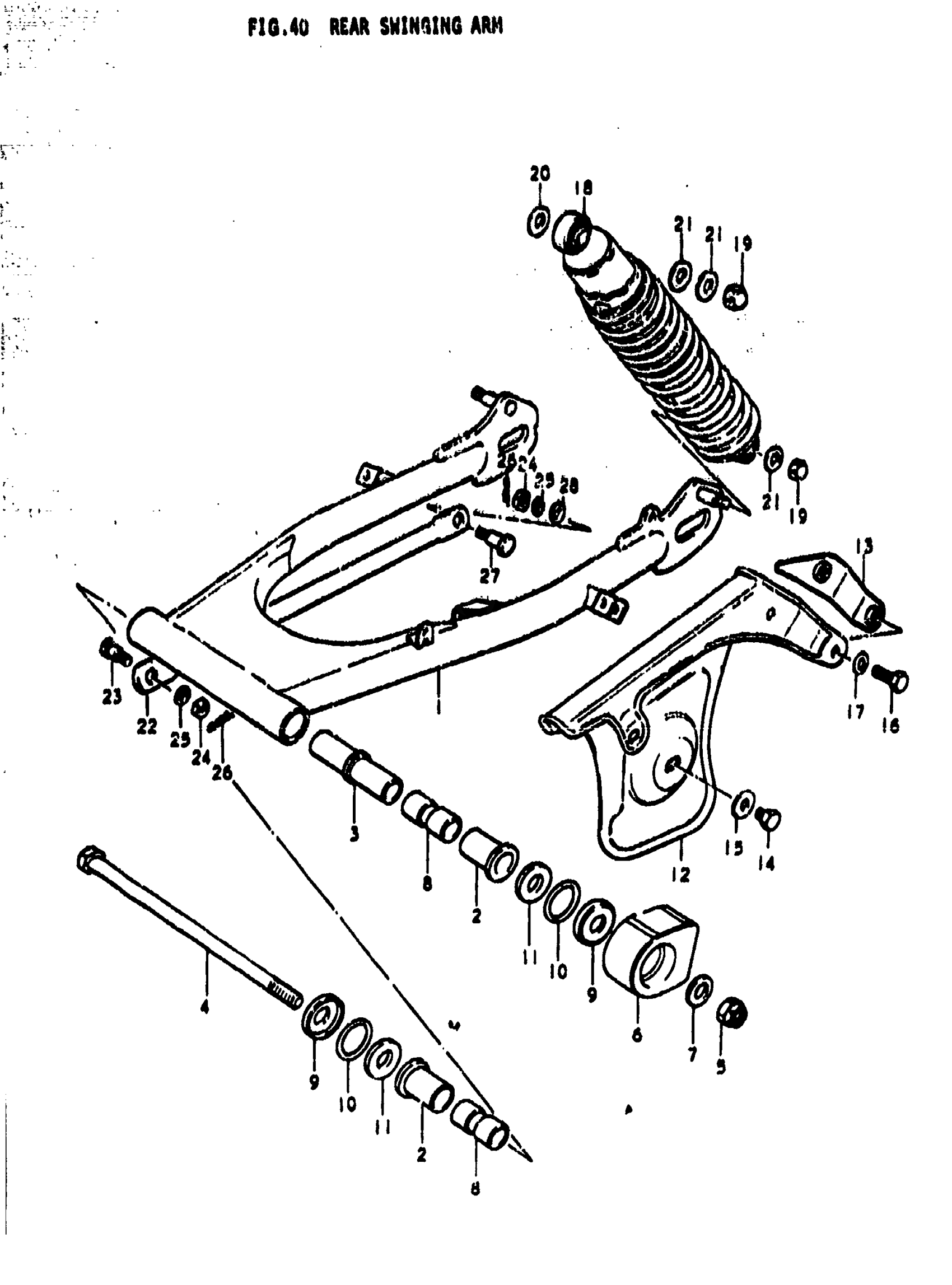

1979 Suzuki TS185 Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR SWINGING ARM SET | B This part replaces 61100-29811-019.

61100-29812-019

1
Out of stock

1

REAR SWINGING ARM SET | C,N; Includes Item(s) 2 - 3

61100-29812-019

1
Out of stock

2

BUSHING

09307-18002

2
Out of stock

3

SPACER

61280-29300

1
Out of stock

4

SWING ARM PVT S | B; L:207 This part replaces 61211-29300.

61211-29302

1
Out of stock

4

SWING ARM PVT S | L:208.5 This part replaces 61211-29301.

61211-29302

1
Out of stock

5

NUT

09159-12102

1
Out of stock

6

BUFFER,CHAIN TO This part replaces 61273-28001.

61273-28002

1
Out of stock

7

WASHER This part replaces 08322-11128.

08322-01127

1
Out of stock

8

SPACER

61251-28000

2
Out of stock

9

COVER

61262-09200

2
Out of stock

10

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

2
Out of stock

11

THRUST WASHER | 12.5x24x2.3

09160-12005

2
Out of stock

12

CHAIN CASE (BLACK) | B This part replaces 61311-29300-019.

61311-29302-019

1
Out of stock

12

CHAIN CASE (BLACK) | C,N This part replaces 61311-29301-019.

61311-29302-019

1
Out of stock

13

NO DESCRIPTION AVAILABLE This part replaces 61380-29300.

61380-26500

1
Out of stock

14

BOLT | 6x8

09100-06011

3
Out of stock

15

WASHER

09169-06010

3
Out of stock

16

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

1
Out of stock

17

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

18

SHOCK ABSORBER ASSY, REAR | B

62100-29310

2
Out of stock

18

SHOCK ABSORBER ASSY, REAR | C

62100-29320

—
Out of stock

18

SHOCK ABSORBER ASSY, REAR | N

62100-29330

2
Out of stock

19

NUT This part replaces 08313-11108.

08313-10107

4
Out of stock

20

WASHER This part replaces 08322-11128.

08322-01127

2
Out of stock

21

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

6
Out of stock

22

TORQUE LINK REA This part replaces 64311-28000.

64311-28000-019

1
Out of stock

23

BOLT

09111-08013

1
Out of stock

24

NUT

09140-08008

2
Out of stock

25

.LOCK WASHER This part replaces 08321-21088.

08321-01087

2
Out of stock

26

CLIP This part replaces 09385-10001.

09385-10005

2
Out of stock

27

BOLT

09111-08015

1
Out of stock

28

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock
