1979 Suzuki TS185 Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1979 Suzuki TS185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

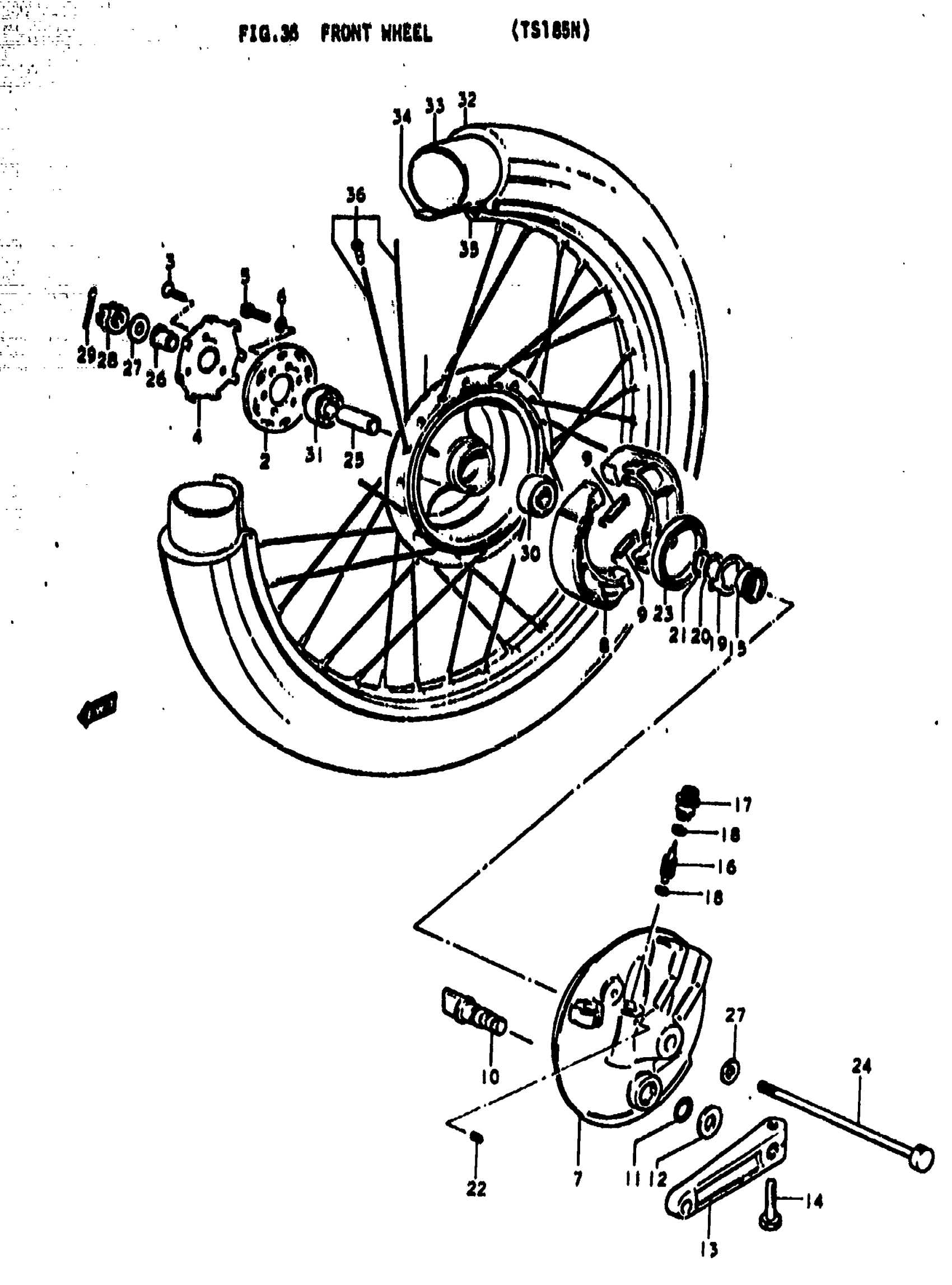

1979 Suzuki TS185 Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, WHEEL

54110-29300

1
Out of stock

2

HUB FLANGE, FRONT RH

54112-30500

1
Out of stock

3

SCREW This part replaces 02122-06168.

02122-06167

3
Out of stock

4

HOLDER, HUB BEARING RH

54151-30500

1
Out of stock

5

3

$2.10

In stock

6

3

$2.28

In stock

7

PANEL

54210-41502

1
Out of stock

8

SHOE SET, BRAKE This part replaces 54410-07002.

54401-07810

2
Out of stock

9

SPRING This part replaces 09443-07001.

09443-07025

2
Out of stock

10

CAM, BRAKE

54441-41300

1
Out of stock

11

O RING

09280-12001

1

$3.25

In stock

12

WASHER | 12.5x20x1

09160-12011

1
Out of stock

13

LEVER, BRAKE CAM

54451-41500

1
Out of stock

14

BOLT This part replaces 01107-06258.

01500-06257

1
Out of stock

15

NO DESCRIPTION AVAILABLE This part replaces 54611-41500.

54611-41501

1
Out of stock

16

NO DESCRIPTION AVAILABLE This part replaces 54621-41500.

54621-41501

1
Out of stock

17

BUSH

54632-01001

1
Out of stock

18

WASHER,5.1X9X0. | 5.1x9x0.4 This part replaces 09160-05001.

09160-05001-A05

2
Out of stock

19

DRIVER

54661-29300

1
Out of stock

20

THRUST WASHER | 18.9x24x1

09160-18002

1
Out of stock

21

CIRCLIP

08331-11189

1
Out of stock

22

SCREW,3X4.3 This part replaces 09134-03101.

09134-03101-A05

1
Out of stock

23

OIL SEAL This part replaces 09285-43001.

09283-43004

1
Out of stock

24

AXLE, FRONT This part replaces 54711-16502.

54711-16504

1
Out of stock

25

SPACER (12.5X19X52) | 12.6x19x52 This part replaces 09180-12041.

09180-12144

1
Out of stock

26

SPACER, RH

54741-41100

1
Out of stock

27

WASHER This part replaces 08322-11128.

08322-01127

2
Out of stock

28

NUT This part replaces 08314-31128.

08314-3112A

1
Out of stock

29

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

30

1

$10.66

In stock

31

BEARING This part replaces 08123-62017.

08133-62017

1
Out of stock

32

TIRE, FRONT | 2.75-21

55100-28600

1
Out of stock

33

TIRE, FRONT | 2.75-21 This part replaces 55200-16510.

55200-16511

1
Out of stock

34

PROTECTOR, INNER TUBE | 25X21 This part replaces 55261-16510.

55261-14540

1
Out of stock

35

RIM, WHEEL | 1.60x21

55311-48020

1
Out of stock

36

SPOKE SET This part replaces 55300-29830.

55320-29300

1
Out of stock
