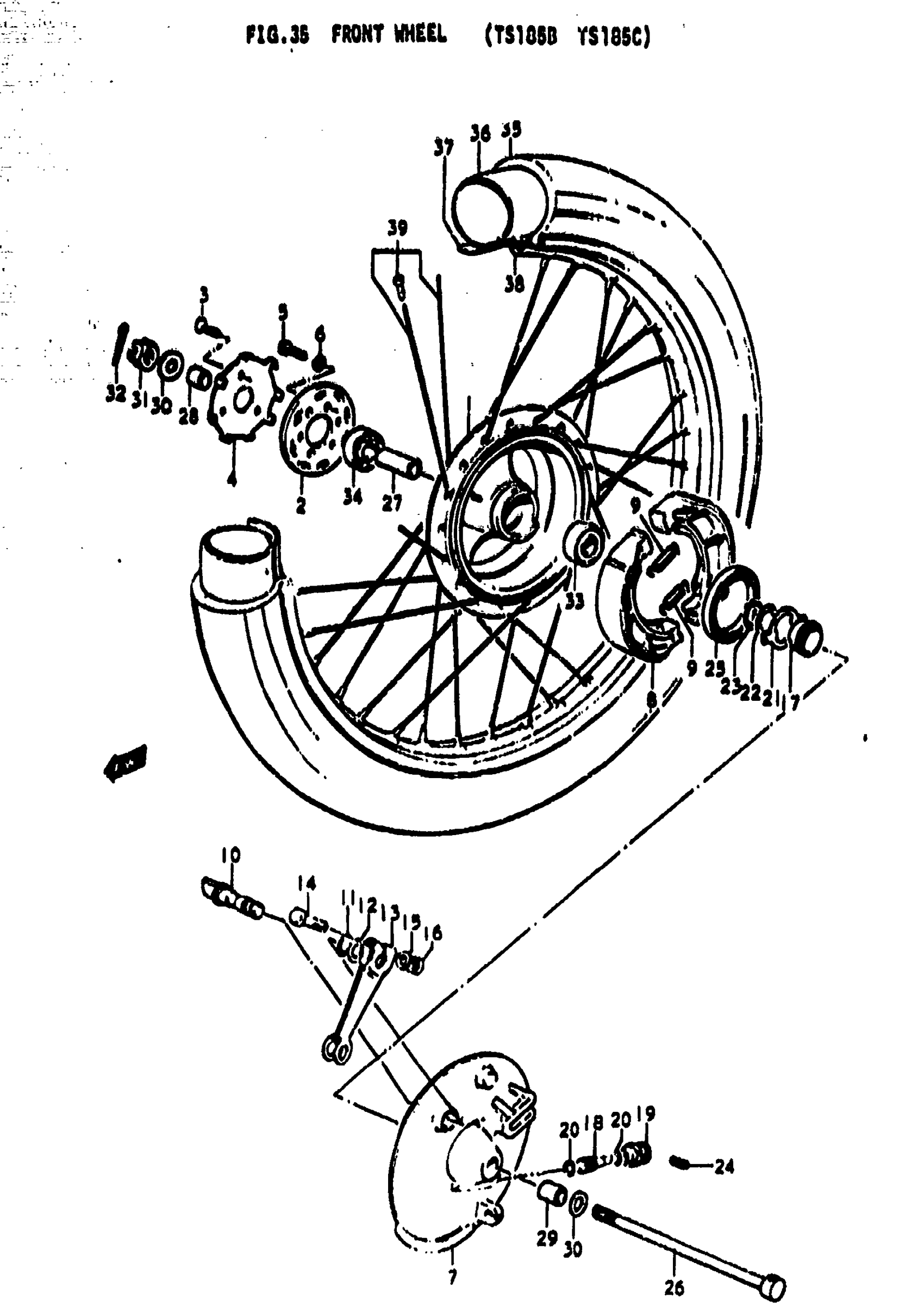

Suzuki TS185 (1979) FRONT WHEEL (TS185B TS185C) Diagram

#

Description
Price

1

HUB, WHEEL

54110-29300

Unavailable

2

HUB FLANGE, FRONT RH

54112-30500

Unavailable

3

SCREW This part replaces 02122-06168.

02122-06167

$1.49

4

HOLDER, HUB BOORING RH

54151-30500

$9.50

5

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$2.01

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

7

PANEL

54210-29300

Unavailable

8

SHOE SET, BRAKE This part replaces 54410-07002.

54401-07810

Unavailable

9

SPRING This part replaces 09443-07001.

09443-07025

$1.68

10

CAM, BRAKE | B This part replaces 54441-29300.

54441-29305

$22.58

10

CAM, BRAKE | C This part replaces 54441-29301.

54441-29305

$22.58

11

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.44

12

WASHER | 14.5x22x1.6 This part replaces 09160-14001.

09160-14055

$2.49

13

LEVER, BRAKE CAM

54451-29300

Unavailable

14

BOLT | B; 6x35 This part replaces 09100-06033.

64455-07L00

$1.68

14

BOLT | C; 6x33

09100-06078

$2.58

15

WASHER This part replaces 08322-21068.

08322-01067

$1.93

16

.NUT This part replaces 08310-11068.

08310-00067

$1.91

17

GEAR, SPEEDOMETER (NT:27) This part replaces 54611-28401.

54611-28402

Unavailable

18

PINION, SPEEDOMETER (NT:9) This part replaces 54621-28400.

54621-28401

Unavailable

19

BUSH

54632-01001

$14.45

20

WASHER,5.1X9X0. | 5.1x9x0.4. This part replaces 09160-05001.

09160-05001-A05

$2.17

21

DRIVER

54661-29300

$5.10

22

THRUST WASHER | 18.5x24x1

09160-18002

$2.58

23

CIRCLIP

08331-11189

Unavailable

24

SCREW,3X4.3 This part replaces 09134-03101.

09134-03101-A05

$1.95

25

OIL SEAL This part replaces 09285-43001.

09283-43004

$15.25

26

AXLE,FRONT This part replaces 64711-43000.

64711-43001

$47.37

27

SPACER (12.5X19X52) | 12.6x19x52 This part replaces 09180-12041.

09180-12144

$11.20

28

NO DESCRIPTION AVAILABLE | 12.2x19x18.5 This part replaces 09180-12076.

09180-12141

Unavailable

29

SPACER | 12x20x41

09180-12063

$7.95

30

WASHER This part replaces 08322-21128.

08322-01127

$1.94

31

NUT This part replaces 08314-31128.

08314-3112A

$2.50

32

PIN This part replaces 04111-30308.

04111-3030A

$1.41

33

BEARING This part replaces 08143-62017.

08143-6201B

$10.23

34

BEARING This part replaces 08123-62017.

08133-62017

$17.50

35

TIRE, FRONT | 2.75-21

55100-28600

Unavailable

36

TIRE, FRONT | 2.75-21 This part replaces 55200-16510.

55200-16511

$48.77

37

PROTECTOR, INNER TUBE | 25X21 This part replaces 55261-16510.

55261-14540

$3.77

38

NO DESCRIPTION AVAILABLE | B; 1.60Ax21 This part replaces 55311-29300.

55311-30501

Unavailable

38

RIM, WHEEL | C; 1.60x21

55311-48020

$190.30

39

NO DESCRIPTION AVAILABLE | B This part replaces 55300-29820.

55320-29310

Unavailable

39

SPOKE SET | C This part replaces 55300-29830.

55320-29300

$73.01
