1976 Suzuki TS185 Fuel Tank Diagram

← All diagrams

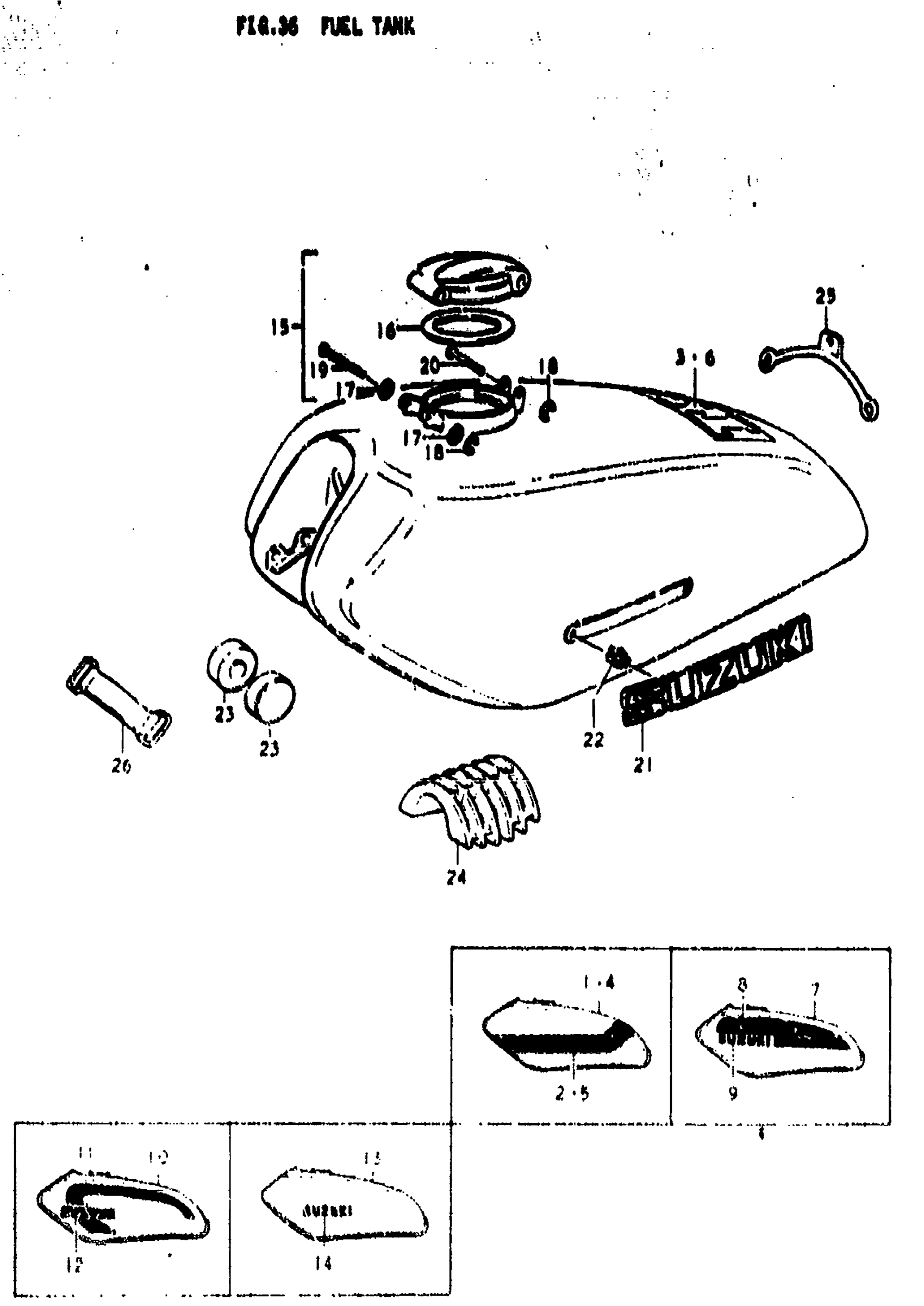

Find the part on the Fuel Tank diagram for your 1976 Suzuki TS185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Suzuki TS185 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | K; TO 44100-28870-279; Includes Item(s) 2 - 3 This part replaces 44110-28824-279.

44110-28690-737

1
Out of stock

2

NO DESCRIPTION AVAILABLE | K; TO 68100-28870-718 This part replaces 68115-28000-718.

68100-28870-718

1
Out of stock

2

NO DESCRIPTION AVAILABLE | K; TO 68100-28670-718 This part replaces 68125-28000-718.

68100-28870-718

1
Out of stock

3

EMBLEM, CENTER | K

68118-30000-718

1
Out of stock

4

NO DESCRIPTION AVAILABLE | K; TO 44100-28890-713; Includes Item(s) 5 - 6 This part replaces 44110-28824-713.

44110-28690-737

1
Out of stock

5

NO DESCRIPTION AVAILABLE | K; TO 68100-28870-002 This part replaces 68115-28000-002.

68100-28870-002

1
Out of stock

5

NO DESCRIPTION AVAILABLE | K; TO 68100-28870-002 This part replaces 68125-28000-002.

68100-28870-002

1
Out of stock

6

EMBLEM, CENTER | K

68118-30000-002

1
Out of stock

7

NO DESCRIPTION AVAILABLE | L; Includes Item(s) 8 - 9 This part replaces 44110-28400-737.

44110-28690-737

1
Out of stock

8

TAPE, STRIPING RH | L; TO 68100-28830-719

68115-28400-719

—
Out of stock

8

NO DESCRIPTION AVAILABLE | L; TO 68100-28830-719 This part replaces 68125-28400-719.

68100-28830-719

1
Out of stock

9

EMBLEM, RH | L

68111-28400-002

—
Out of stock

9

EMBLEM, LH | L

68121-28400-002

1
Out of stock

10

NO DESCRIPTION AVAILABLE | M; TO 44110-29600-714; Includes Item(s) 11 - 12 This part replaces 44110-28640-714.

44110-28690-737

1
Out of stock

11

TAPE, STRIPING RH | M; TO 68100-28860-991

68115-28600-991

—
Out of stock

11

NO DESCRIPTION AVAILABLE | M; TO 68100-28860-991 This part replaces 68125-28600-991.

68100-28860-991

—
Out of stock

12

NO DESCRIPTION AVAILABLE | M This part replaces 68111-26610-019.

68111-27610-019

2
Out of stock

13

NO DESCRIPTION AVAILABLE | A; Includes Item(s) 14 This part replaces 44110-29600-163.

44110-28690-737

1
Out of stock

14

EMBLEM | A

68111-25610-60K

2
Out of stock

15

CAP ASSY,FUEL T | Includes Item(s) 16 - 20 This part replaces 44200-33011.

44200-33012

1
Out of stock

16

GASKET This part replaces 44248-33011.

44248-33012

1
Out of stock

17

WASHER

44238-33010

2
Out of stock

18

E RING

09383-02003

2
Out of stock

19

PIN FRONT

44239-33010

1
Out of stock

20

PIN, LOCK

44233-33010

1
Out of stock

21

EMBLEM | K

68111-28600

2
Out of stock

22

NUT | K

09148-04005

4
Out of stock

23

CUSHION This part replaces 09329-10007.

09329-10026

2
Out of stock

24

CUSHION, REAR

44541-28000

1
Out of stock

25

BAND

09462-00042

1
Out of stock

26

BAND

09462-00007

1
Out of stock
