1976 Suzuki TS185 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1976 Suzuki TS185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

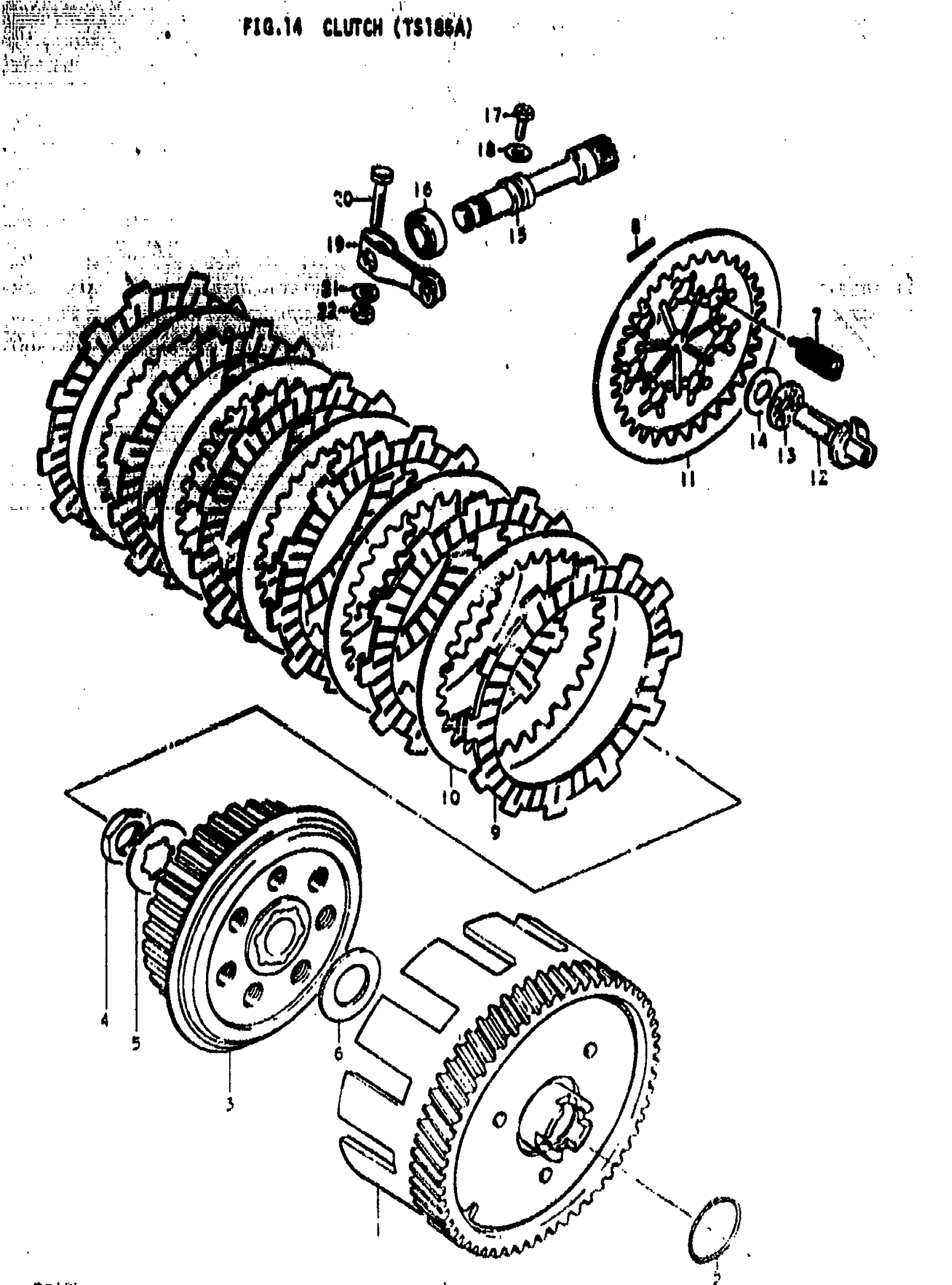

1976 Suzuki TS185 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | NT:61 TO 21200-29002 This part replaces 21200-29001.

21200-29003

1
Out of stock

2

CLIP

09380-30001

1
Out of stock

3

1

$100.46

In stock

4

1

$2.92

In stock

5

WASHER | 14x33x0.6

09167-17002

1

$2.03

In stock

6

1

$2.95

In stock

7

SPRING

09443-12010

7

$2.67

In stock

8

PIN

09261-02001

7

$1.80

In stock

9

PLATE, CLUTCH DRIVE This part replaces 21441-28300.

21441-13A01

6
Out of stock

10

PLATE, CLUTCH DRIVEN (T:1.6) This part replaces 21451-28000.

21451-19A00

5
Out of stock

11

1

$28.50

In stock

12

RACK RELEASE This part replaces 23165-28000.

23165-28001

1
Out of stock

13

THRUST BEARING

09263-10002

1

$9.87

In stock

15

1

$51.22

In stock

16

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

17

BOLT

09135-06009

1

$2.58

In stock

18

1

$1.84

In stock

19

ARM, CLUTCH RELEASE

23271-28300

1
Out of stock

20

1

$2.10

In stock

21

1

$1.84

In stock

22

1

$1.82

In stock
