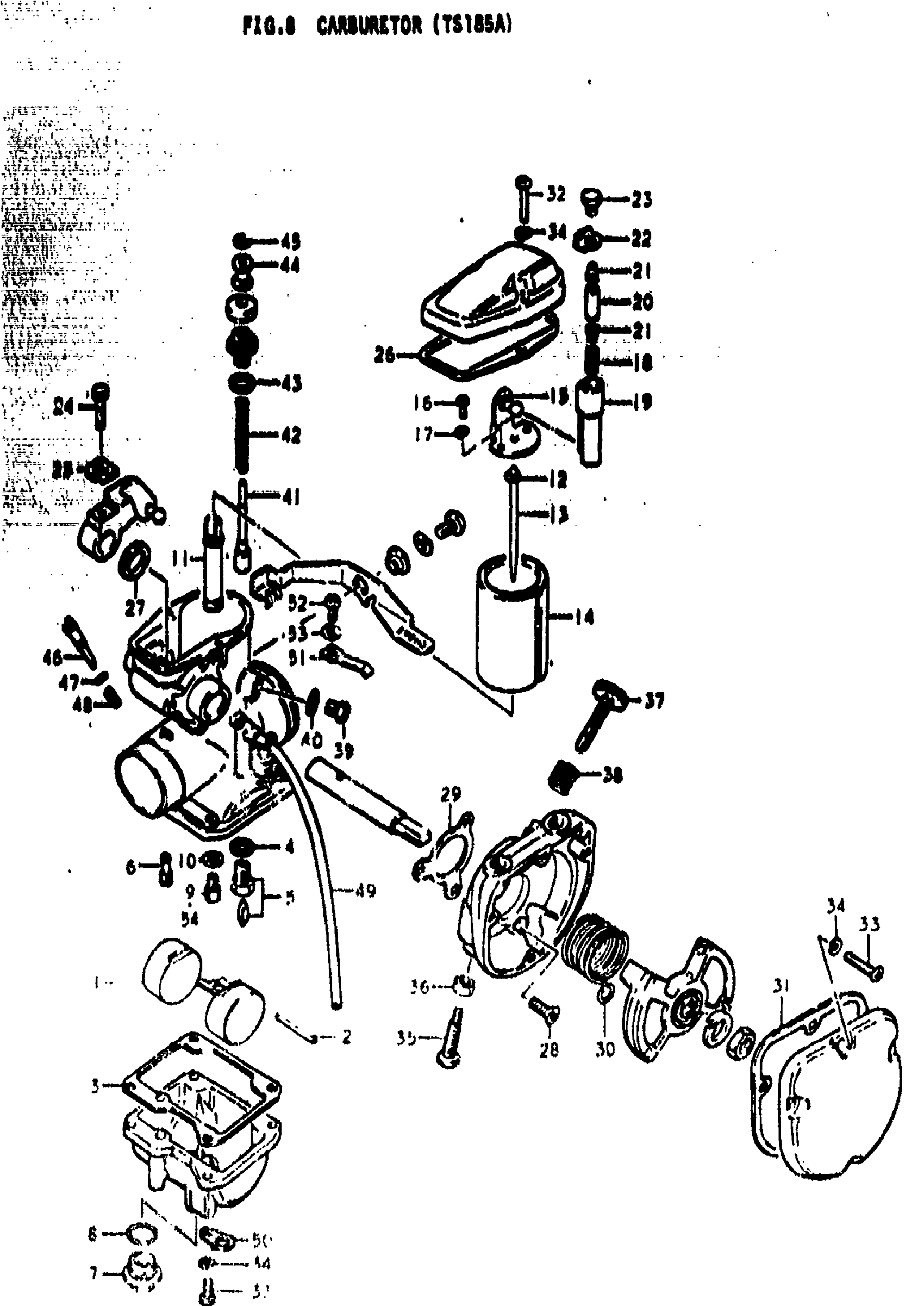

Find the part on the Carburetor diagram for your 1976 Suzuki TS185, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Suzuki TS185 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 53 This part replaces 13200-29630.

13200-29631

1
Out of stock

1

FLOAT

13252-29630

1
Out of stock

2

.PIN, FLOAT

13254-01010

1
Out of stock

3

GASKET

13251-29630

1
Out of stock

4

GASKET, VALVE

13251-29630

1
Out of stock

5

VALVE ASSY, NEEDLE This part replaces 13370-29630.

13370-30651

1
Out of stock

6

JET, PILOT (25) | #25 This part replaces 09492-25003.

09492-25005

1
Out of stock

7

PLUG, DRAIN

13247-29630

1
Out of stock

8

O RING

13246-29630

1
Out of stock

9

JET, MAIN | #130

09491-26003

1
Out of stock

10

WASHER

13382-03110

1
Out of stock

11

JET, NEEDLE | 0-9

09494-00170

1
Out of stock

12

CLIP

13394-10010

1
Out of stock

13

NEEDLE, JET | 5E116-3

13383-97311

1
Out of stock

14

VALVE, PISTON | CA:2.0

13551-29630

1
Out of stock

15

BRACKET

13398-30650

1
Out of stock

16

SCREW This part replaces 02111-03067.

02112-0306B

2
Out of stock

17

WASHER,LOCK This part replaces 08321-21038.

09162-03001

2
Out of stock

18

SPRING

13543-43010

1
Out of stock

19

CONNECTOR

13545-32212

1
Out of stock

20

PIN

13546-30650

1
Out of stock

21

PIN

13544-43010

2
Out of stock

22

PLATE

13547-43010

1
Out of stock

23

SCREW

13548-32212

1
Out of stock

24

BOLT

13613-30650

1
Out of stock

25

PLATE

13576-30650

1
Out of stock

26

GASKET

13266-29630

1
Out of stock

27

RING

13574-29630

1
Out of stock

28

SCREW This part replaces 02121-05147.

09126-05005

3
Out of stock

29

GASKET

13632-29630

1
Out of stock

30

SPRING

13573-29630

1
Out of stock

31

GASKET

13631-29630

1
Out of stock

32

SCREW

02111-04258

—
Out of stock

33

SCREW This part replaces 02111-04168.

02112-0416A

8
Out of stock

34

LOCK WASHER This part replaces 08321-21048.

08321-0104A

10
Out of stock

35

BOLT, GEAR SHIFT LINK This part replaces 13605-32212.

01500-0620A

1
Out of stock

36

.NUT This part replaces 08311-31068.

08310-00067

1
Out of stock

37

ADJUSTER, THROTTLE

13267-29630

1
Out of stock

38

SPRING

13268-33110

1
Out of stock

39

PLUG

13664-18654

1
Out of stock

40

GASKET

13663-31010

1
Out of stock

41

VALVE, STARTER

13411-33110

1
Out of stock

42

SPRING

13417-18630

1
Out of stock

43

O RING This part replaces 13295-15010.

09280-08014

1
Out of stock

44

BUSH

13424-33110

1
Out of stock

45

CLIP

13617-33110

1
Out of stock

46

SCREW, AIR PILOT

13269-15011

1
Out of stock

47

O RING

13295-33010

1
Out of stock

48

SPRING

13268-35010

1
Out of stock

49

HOSE This part replaces 13684-30010.

13684-40A00

2
Out of stock

50

PLATE

13693-30650

2
Out of stock

51

SPRING

13426-29630

—
Out of stock

52

SCREW This part replaces 02111-04067.

02112-0406B

1
Out of stock

53

LOCK WASHER This part replaces 08321-21048.

08321-0104A

1
Out of stock

54

JET, MAIN (115) | #115 OPT This part replaces 09491-23008.

09491-23010

1
Out of stock

54

JET, MAIN (120) | #120 OPT This part replaces 09491-24002.

09491-24014

1
Out of stock

54

JET, MAIN | #125 OPT This part replaces 09491-25004.

09491-25009

1
Out of stock

54

JET,MAIN #135 | #135 OPT This part replaces 09491-27005.

09491-27015

1
Out of stock

54

JET, MAIN | #140 OPT This part replaces 09491-28002.

09491-28009

1
Out of stock

54

JET, MAIN | #145 OPT

09491-29002

1
Out of stock
