1981 Suzuki TS125 Rear Swinging ARM Diagram

← All diagrams

Find the part on the Rear Swinging ARM diagram for your 1981 Suzuki TS125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

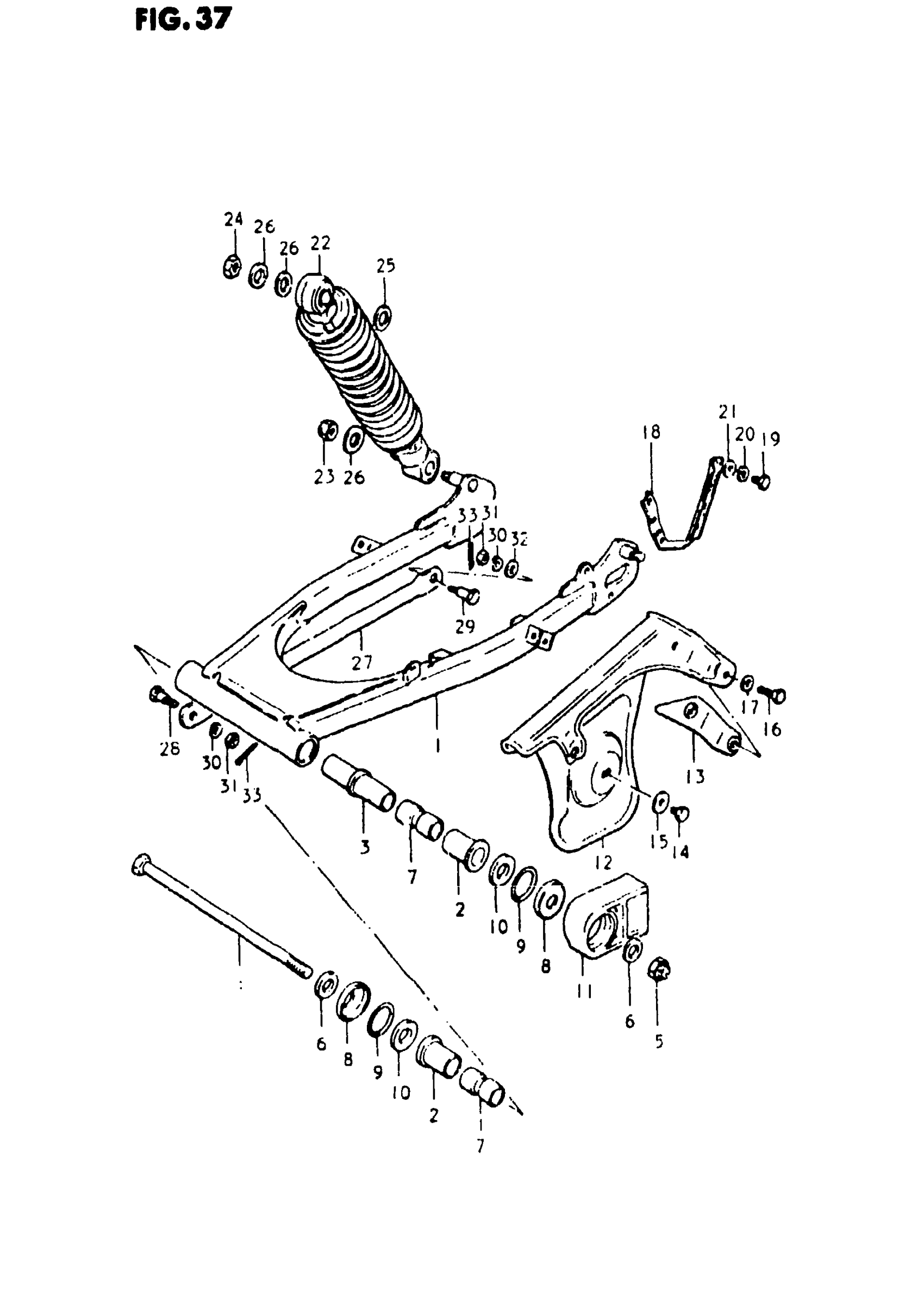

1981 Suzuki TS125 Rear Swinging ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL T FOR SOLO RIDING, GOLD This part replaces 61100-48860-08C.

61100-48860-019

1
Out of stock

1

REAR SWINGING ARM SET | MODEL X FOR DUAL RIDING, BLACK; Includes Item(s) 2 - 3 This part replaces 61100-48851-019.

61100-48852-019

1
Out of stock

2

BUSHING

09307-18002

2
Out of stock

3

SPACER, CENTER

61280-29300

1
Out of stock

4

SWING ARM PVT S This part replaces 61211-29301.

61211-29302

1
Out of stock

5

NUT This part replaces 08319-21128.

08319-2112A

1
Out of stock

6

WASHER This part replaces 08322-11128.

08322-01127

2
Out of stock

7

SPACER

61251-28000

2
Out of stock

8

COVER

61262-09200

2
Out of stock

9

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

2
Out of stock

10

THRUST WASHER | 12.5x24x2.3

09160-12005

2
Out of stock

11

BUFFER, CHAIN TOUCH DEFENSE

61273-48501

—
Out of stock

12

CHAIN CASE (BLACK)

61311-29302-019

1
Out of stock

13

NO DESCRIPTION AVAILABLE This part replaces 61380-29300.

61380-26500

1
Out of stock

14

BOLT (6x8)

09100-06011

3
Out of stock

15

WASHER

09169-06010

3
Out of stock

16

1

$2.10

In stock

17

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

18

GUIDE, CHAIN This part replaces 61341-48501.

61341-48504

1
Out of stock

19

BOLT This part replaces 01107-08128.

01500-08127

2
Out of stock

20

2

$2.28

In stock

21

WASHER | MODEL T This part replaces 08322-21088.

08322-01087

2
Out of stock

21

WASHER | MODEL X This part replaces 08322-11088.

08322-01087

2
Out of stock

22

NO DESCRIPTION AVAILABLE This part replaces 62100-48501.

62100-48520

2
Out of stock

23

NUT This part replaces 08313-11108.

08313-10107

2
Out of stock

24

NUT This part replaces 08310-11108.

08310-00107

2
Out of stock

25

WASHER This part replaces 08322-11128.

08322-01127

2
Out of stock

26

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

6
Out of stock

27

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 64311-46010-08C.

64311-46000-019

1
Out of stock

27

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 64311-46000.

64311-46000-019

1
Out of stock

28

BOLT

09111-08015

1
Out of stock

29

BOLT

09111-08013

1
Out of stock

30

2

$2.28

In stock

31

NUT

09140-08008

2
Out of stock

32

WASHER This part replaces 08322-11088.

08322-01087

1
Out of stock

33

.COTTER PIN This part replaces 04111-20158.

04111-2015A

2
Out of stock
