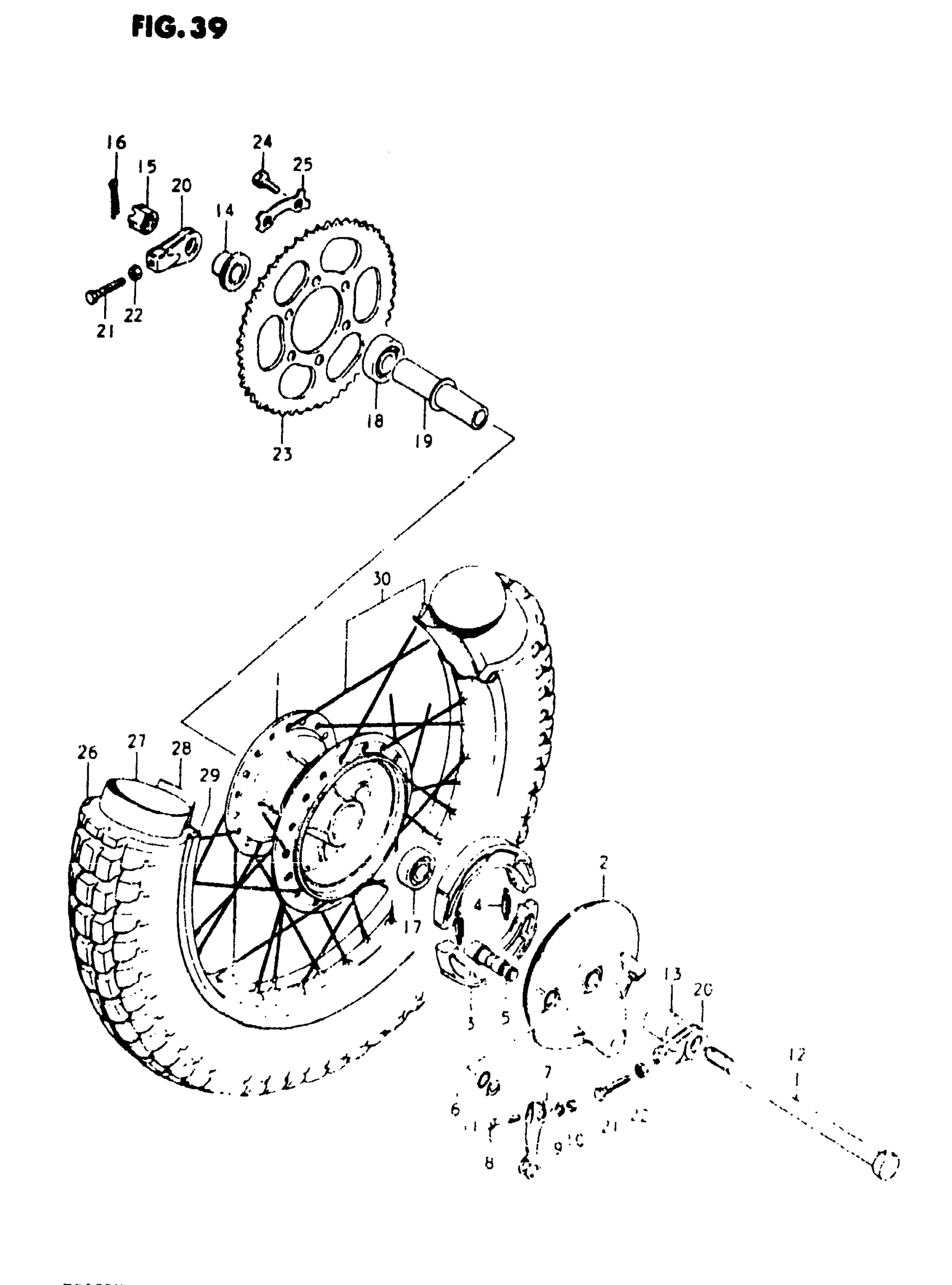

Suzuki TS125 (1981) REAR WHEEL Diagram

NO DESCRIPTION AVAILABLE This part replaces 64110-38001.

64110-38002

Unavailable

PANEL, BRAKE ANCHER

64210-48000

Unavailable

SHOE SET, BRAKE This part replaces 54410-07002.

54401-07810

Unavailable

SPRING This part replaces 09443-07001.

09443-07025

$1.68

CAM, BRAKE This part replaces 54441-29302.

54441-29305

$22.58

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.30

LEVER, BRAKE CAM This part replaces 64451-30500.

64451-30501

$18.89

BOLT (6x33) | MODEL T

09100-06078

$2.58

BOLT | MODEL X This part replaces 01107-06408.

01500-0640B

$2.64

WASHER This part replaces 08322-21068.

08322-01067

$1.86

.NUT This part replaces 08310-11068.

08310-00067

$1.83

WASHER This part replaces 09160-14001.

09160-14055

$2.40

AXLE, REAR This part replaces 64711-48000.

64711-48001

$57.45

SPACER, RH (15.2x22x26)

09180-15038

$8.45

SPACER, LH

64750-48000

Unavailable

NUT

09141-14001

$5.00

PIN This part replaces 04111-30308.

04111-3030A

$1.37

BEARING, RH

08143-62027

$14.44

BEARING This part replaces 08123-63027.

08123-6302B

$20.52

SPACER, REAR HUB BEARING

64730-28001

Unavailable

ADJUSTER,CHAIN, This part replaces 61410-28004.

61410-28005

$9.50

BOLT (8x40)

09100-08146

$2.80

NUT This part replaces 08310-12088.

08310-00087

$1.83

SPROCKET, REAR (NT:46)

64511-48010

Unavailable

BOLT (8x34)

09100-08094

$2.80

WASHER

09169-08013

$2.14

TIRE, REAR (4.10-18)

65100-48500

Unavailable

TUBE ASSY, WHEEL INNER This part replaces 65200-18010.

65200-44AA0

$60.32

IN TUBE PROTECT This part replaces 55261-11010.

55261-26F10

$4.12

RIM, WHEEL (1.85-18)

65311-48500

Unavailable

SPOKE ASSY

65320-28021

$64.75
