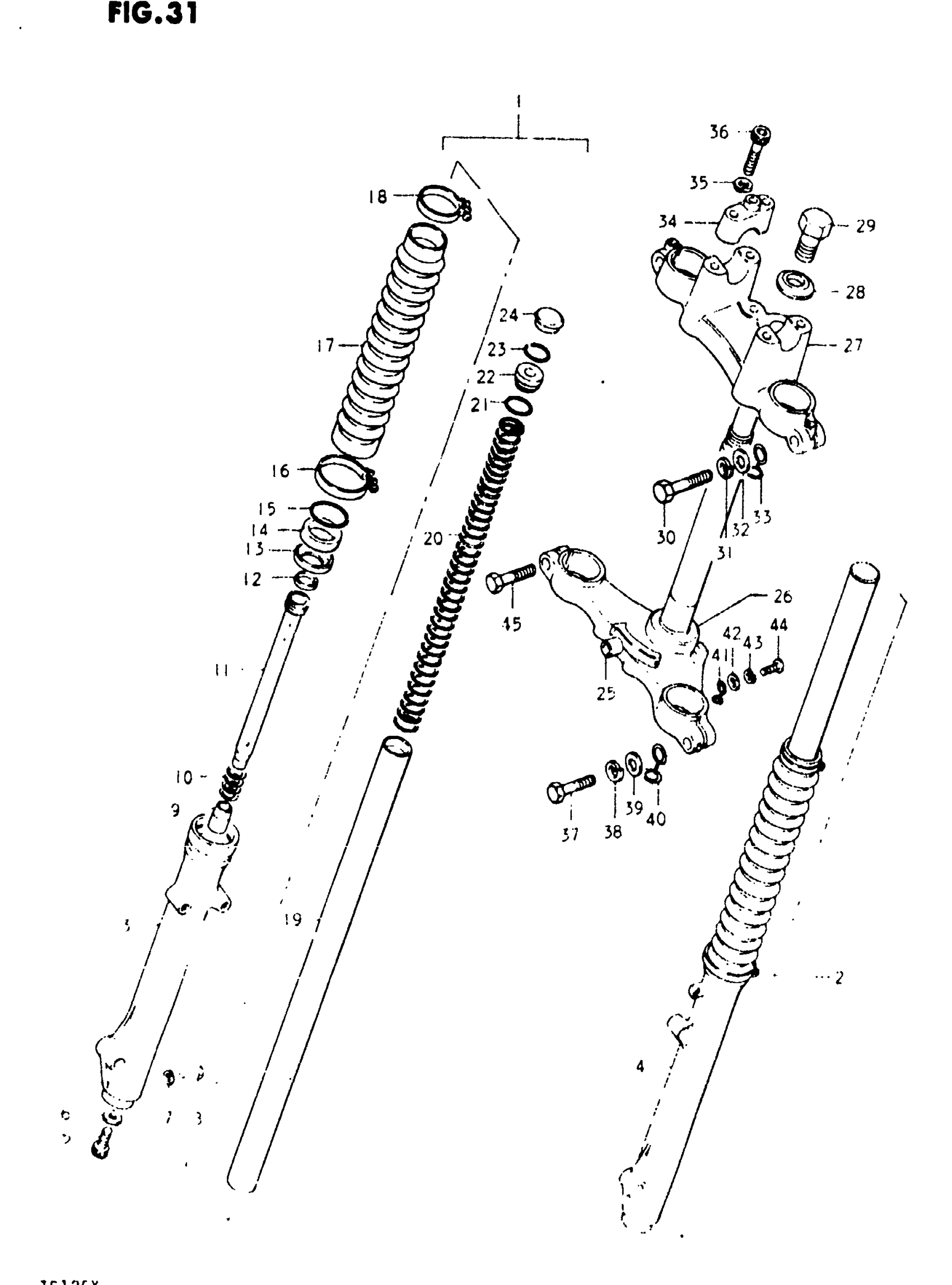

Suzuki TS125 (1981) FRONT FORK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 24 This part replaces 51103-48502.

51103-48503

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 51104-48502.

51104-48503

Unavailable

3

OUTER TUBE, RH

51130-48500

Unavailable

4

OUTER TUBE, LH

51140-48500

Unavailable

5

BOLT

51147-48130

$3.97

6

O RING This part replaces 51148-31030.

51148-36011

$3.26

7

GASKET

51183-31030

$3.55

8

BOLT

09100-06011

$1.58

9

.PIECE, OIL LOCK

51195-48000

Unavailable

10

REBOUND SPRING

51177-36030

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 51146-48502.

51146-48503

Unavailable

12

RING, PISTON

51196-33130

$9.17

13

SPACER

51168-48500

Unavailable

14

OIL SEAL This part replaces 51153-48500.

51153-05210

$18.93

15

.OIL SEAL This part replaces 51156-48500.

51156-48730

$6.00

16

BAND

09402-58306

$4.36

17

BOOT This part replaces 51571-48500.

51571-05210

Unavailable

18

BAND

51575-48500

Unavailable

19

NO DESCRIPTION AVAILABLE This part replaces 51110-48500.

51110-05200

Unavailable

20

SPRING A

51171-48501

Unavailable

21

O RING

51181-33131

$6.22

22

SEAT SPRING

51175-48500

Unavailable

23

STOPPER RING

51169-48500

$3.80

24

NO DESCRIPTION AVAILABLE This part replaces 51189-48500.

51189-13620

Unavailable

25

NO DESCRIPTION AVAILABLE This part replaces 51410-48500-291.

51410-48510-291

Unavailable

26

OUTER RACE

51621-33001

$18.33

27

NO DESCRIPTION AVAILABLE This part replaces 51311-48500-291.

51311-48500-08C

Unavailable

28

WASHER

51356-46030

Unavailable

29

BOLT

51352-46030

$10.35

30

BOLT, HOLDER This part replaces 51451-27431.

51451-12FA0

$4.47

31

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.83

32

WASHER This part replaces 08322-21108.

08322-01107

$1.88

33

CLIP

51455-48500

Unavailable

34

NO DESCRIPTION AVAILABLE This part replaces 56211-48500-291.

56211-26505-291

Unavailable

35

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

36

BOLT This part replaces 09106-08004.

07130-0835B

$3.58

37

BOLT This part replaces 01107-12458.

01500-12457

$6.65

38

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.07

39

WASHER This part replaces 08322-11128.

08322-01127

$1.86

40

CLIP

51455-48510

Unavailable

41

CLIP

51452-48500

Unavailable

42

WASHER This part replaces 08322-21068.

08322-01067

$1.86

43

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

44

SCREW This part replaces 02112-06128.

02112-06127

$1.83

45

NO DESCRIPTION AVAILABLE This part replaces 01104-12408.

01500-12403

Unavailable
