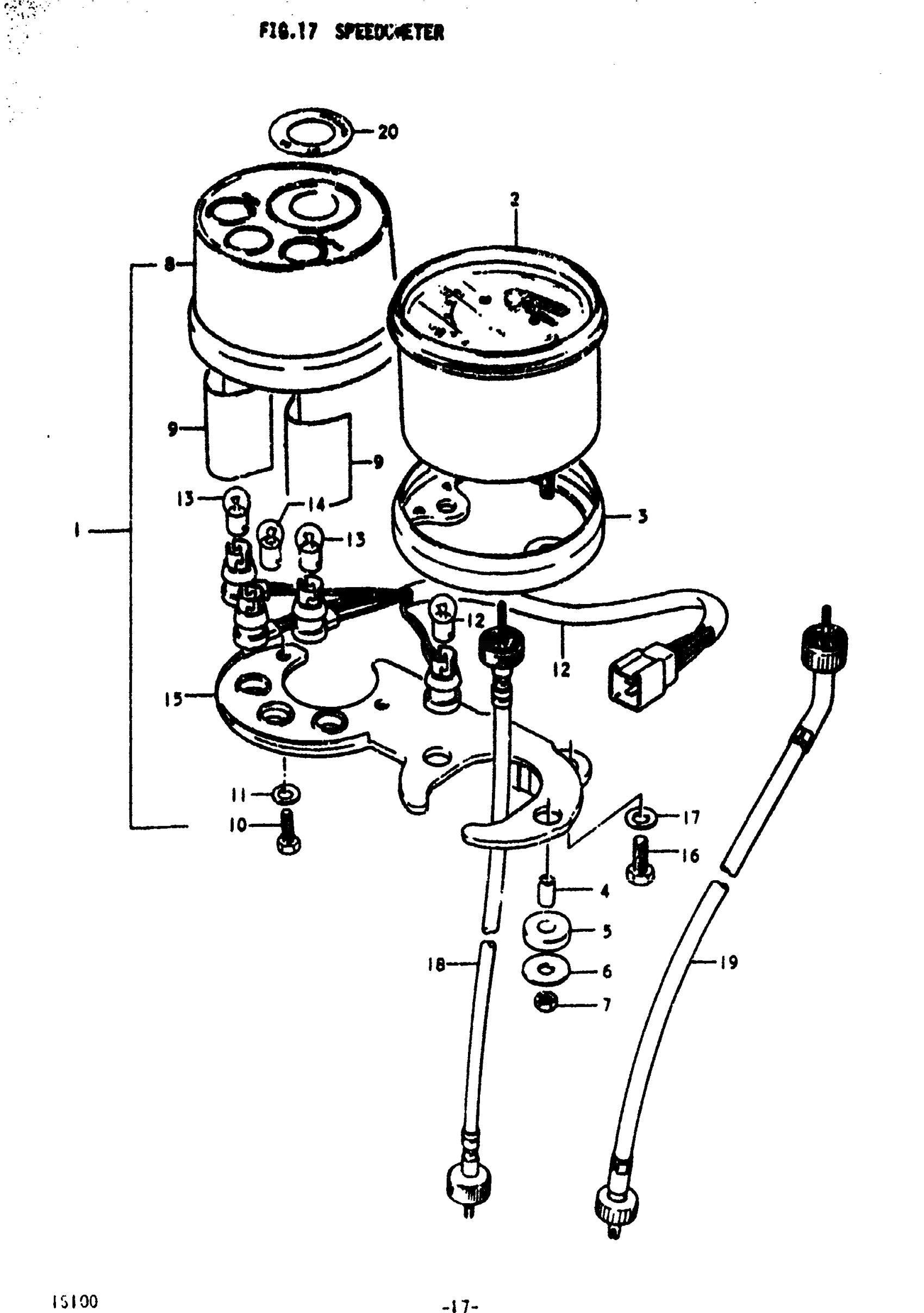

Suzuki TS100 (1979) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSY | CALE

34100-48110

Unavailable

1

SPEEDOMETER ASSY | MILE SCALE

34100-48111

Unavailable

2

SPEEDOMETER | Includes Item(s) 2 - 15

34110-48110

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 34110-48111.

34110-39673

Unavailable

3

CUSHION

34955-46221

Unavailable

4

SPACER

34978-46221

Unavailable

5

CUSHION

34961-46220

Unavailable

6

WASHER,5.5X18X1 This part replaces 09160-05006.

09160-05006-XC0

Unavailable

7

NUT This part replaces 08310-11058.

08310-00057

$1.84

8

CASE, PILOT BULB

36381-48640

Unavailable

9

PIPE

36328-46220

Unavailable

10

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

11

WASHER This part replaces 08322-21058.

08322-01057

$2.13

12

SOCKET

34173-48610

Unavailable

13

DULB

09471-06002

$2.25

14

BULB

09471-06001

$2.18

15

BRACKET

34950-46220

Unavailable

16

BOLT This part replaces 01107-08128.

01500-08127

$2.62

17

WASHER This part replaces 08322-11088.

08322-01087

$2.13

18

CABLE ASSY, SPEEDOMETER

34910-48130

Unavailable

19

CABLE ASSY,SPEE This part replaces 34910-26033.

34910-39991

Unavailable
