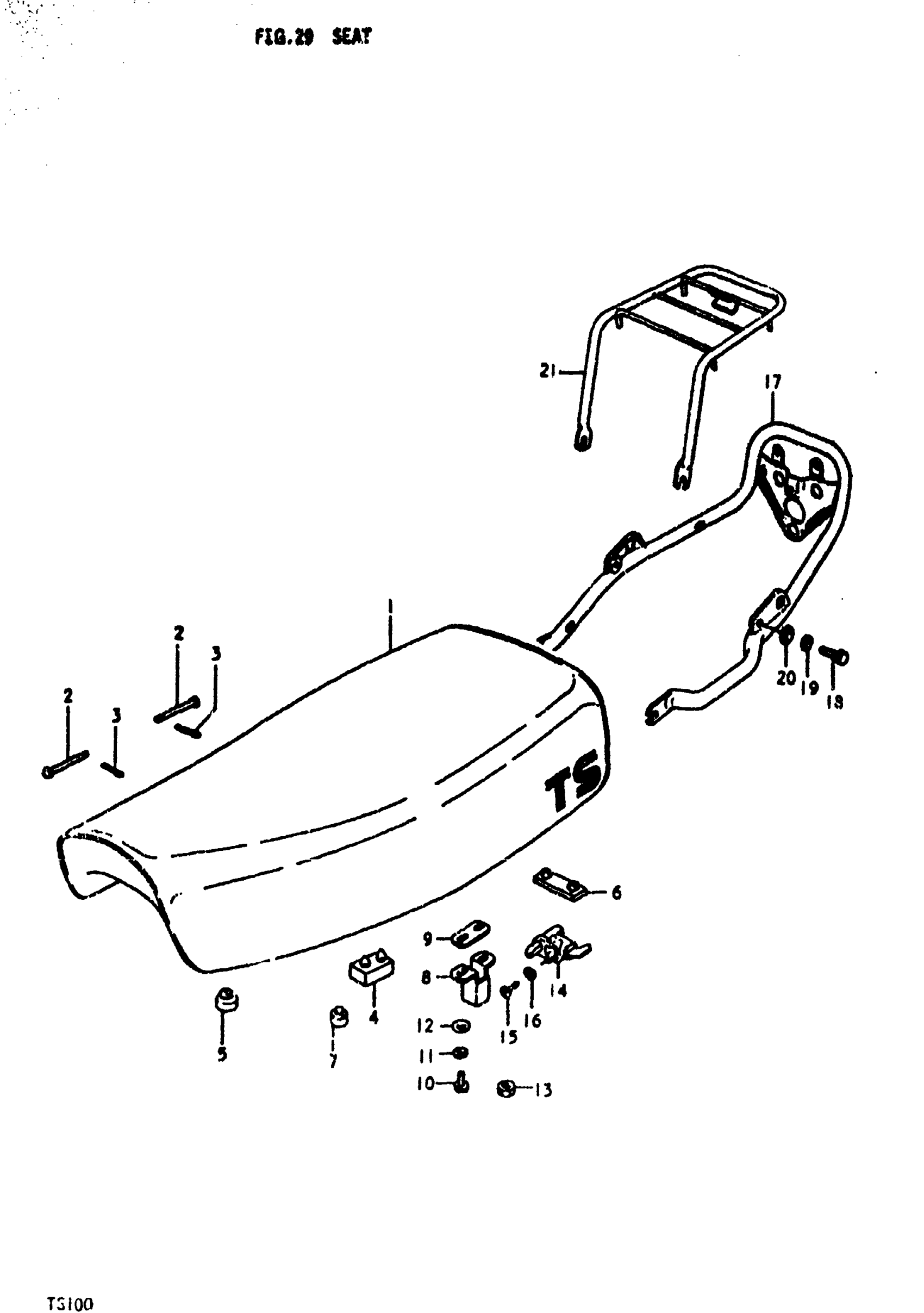

Suzuki TS100 (1979) SEAT Diagram

#

Description
Price

1

SEAT ASSY

45100-29600-865

Unavailable

1

SEAT ASSY This part replaces 45100-29620-865.

45100-29320-865

Unavailable

2

PIN

09200-06018

$2.06

3

.COTTER PIN This part replaces 04111-20156.

04111-2015A

$1.49

4

CUSHION

09321-08006

$2.90

5

CUSHION

09321-10002

$2.22

6

CUSHION

09321-08009

$3.05

7

CUSHION

09321-10001

$2.61

8

PLATE,CLAMP GUIDE

45213-29300

Unavailable

9

SHIM

45217-45001

Unavailable

9

SHIM | 0

09160-08043

$1.83

10

BOLT This part replaces 01107-06128.

01500-06127

$1.97

11

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

11

LOCK WASHER This part replaces 08321-31068.

08321-01067

$2.13

12

WASHER This part replaces 08322-21068.

08322-01067

$2.13

13

.NUT This part replaces 08310-11068.

08310-00067

$2.13

14

SEAT LOCK SET This part replaces 95700-30831.

95700-30832

$74.08

14

SEAT LOCK SET

95700-30832

$74.08

15

SCREW This part replaces 02112-05128.

02112-05127

$1.97

16

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

17

BAR,REAR COMBINATION LAMP

41580-48620

Unavailable

18

BOLT This part replaces 01107-08206.

01500-0820A

$2.28

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

WASHER This part replaces 08322-21088.

08322-01087

$2.13
