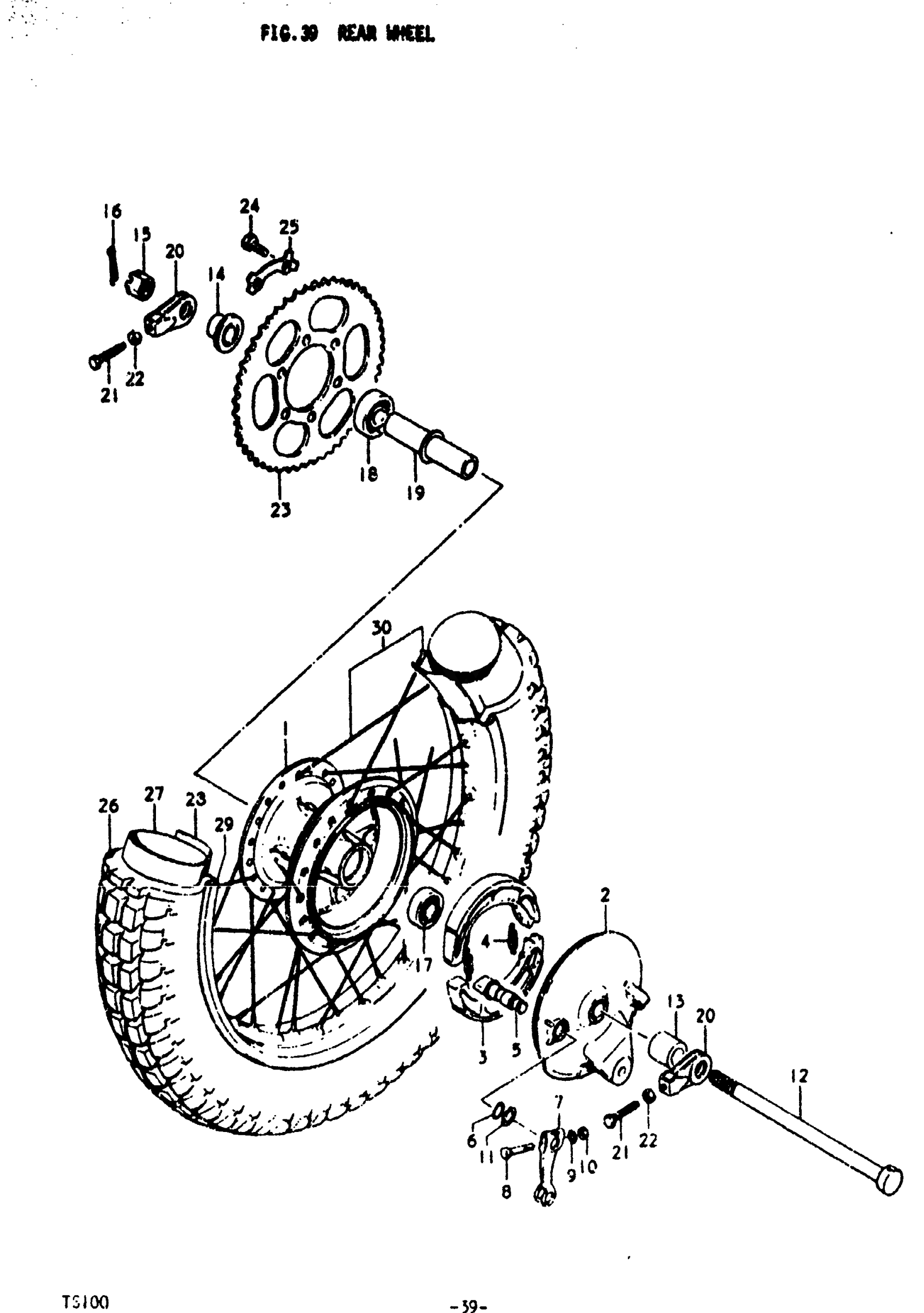

Suzuki TS100 (1979) REAR WHEEL Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 64110-38001.

64110-38002

Unavailable

2

PANEL, BRAKE ANCHER

64210-48000

Unavailable

3

SHOE SET, BRAKE This part replaces 54410-07002.

54401-07810

Unavailable

4

SPRING This part replaces 09443-07001.

09443-07025

$2.08

5

CAM, BRAKE This part replaces 54441-29300.

54441-29305

$20.02

5

CAM, BRAKE This part replaces 54441-29301.

54441-29305

$20.02

6

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

7

LEVER, BRAKE CAM

64451-48000

$26.71

8

BOLT

09100-06078

$2.38

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

.NUT This part replaces 08310-11068.

08310-00067

$2.13

11

WASHER | .6 This part replaces 09160-14001.

09160-14055

$2.39

12

AXLE, REAR This part replaces 64711-48000.

64711-48001

$50.92

13

SPACER, RH | 6

09180-15038

$7.77

14

SPACER, LH

64750-48000

$12.32

15

NUT

09141-14001

$4.60

16

PIN This part replaces 04111-30308.

04111-3030A

$1.49

17

BEARING, RH

08143-62027

$16.01

18

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

19

SPACER, REAR HUB BEARING

64730-28001

Unavailable

20

ADJUSTER,CHAIN, This part replaces 61410-28004.

61410-28005

$10.09

21

BOLT This part replaces 09100-08099.

09100-08146

$2.82

21

BOLT

09100-08146

$2.82

22

NUT This part replaces 08310-12088.

08310-00087

$2.13

23

NO DESCRIPTION AVAILABLE This part replaces 64511-48000.

64511-48001

Unavailable

23

SPROCKET, REAR | O. 119365@

64511-48010

Unavailable

24

BOLT

09100-08094

$2.71

25

WASHER

09169-08013

$2.23

26

TIRE, REAR (3.00-18) This part replaces 65100-25600.

65100-26510

Unavailable

27

TUBE ASSY,WHEEL This part replaces 55200-11601.

55200-26F01

$31.27

28

IN TUBE PROTECT This part replaces 55261-11010.

55261-26F10

$4.39

29

RIM, WHEEL

65311-48100

Unavailable
