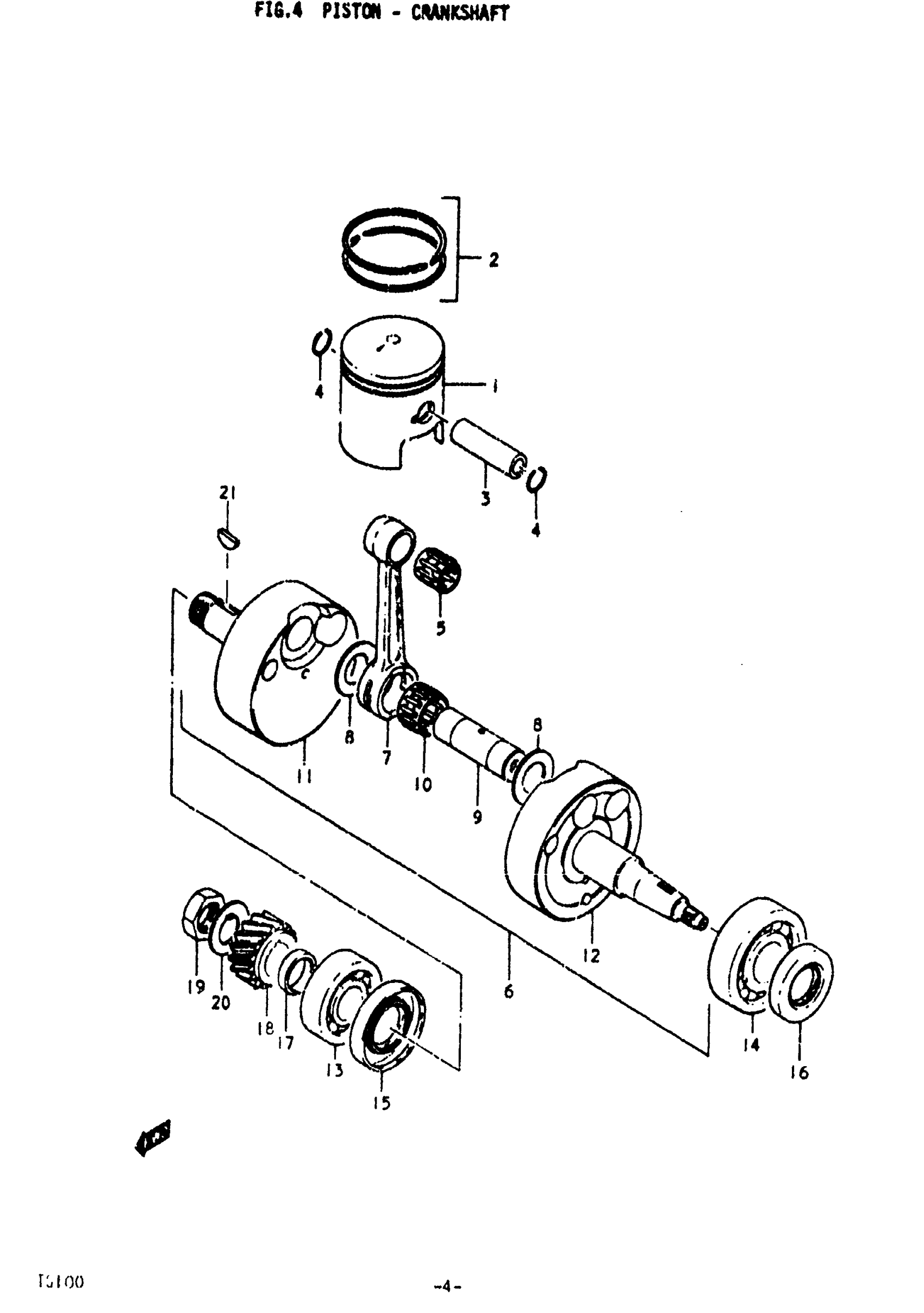

Suzuki TS100 (1979) PISTON - CRANKSHAFT Diagram

#

Description
Price

1

PISTON This part replaces 12110-48100.

12110-48101

Unavailable

1

PISTON SET,OS:0 This part replaces 12110-48100-050.

12100-48100-050

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 12110-48100-100.

12100-48100-100

Unavailable

2

RING SET, PISTON

12140-28630

$40.22

2

RING SET, PISTON

12140-28630-050

$40.98

2

RING SET, PISTON (OS:1.0) This part replaces 12140-28630-100.

12140-40B30-100

$47.05

3

PIN,PISTON This part replaces 12151-07000.

12151-23400-0A0

$8.67

4

RING

09381-14001

$1.49

5

ROLLR BRG,14X18 This part replaces 09263-14006.

09263-14022

$11.97

6

NO DESCRIPTION AVAILABLE This part replaces 12200-48000.

12200-48002

Unavailable

6

NO DESCRIPTION AVAILABLE | Includes Item(s) 7 - 12 This part replaces 12200-48001.

12200-48002

Unavailable

7

CONNECTING ROD This part replaces 12161-12002.

12161-39300

$69.47

8

THRUST WASHER

09160-19001

$3.27

9

PIN, CRANK This part replaces 12211-48000.

12211-48001

$38.85

10

BEARING This part replaces 09263-19007.

09263-19009

$16.75

10

BEARING

09263-19009

$16.75

11

CRANKSHAFT, RH

12221-48000

Unavailable

12

CRANKSHAFT,L This part replaces 12261-48000.

12261-48002

Unavailable

12

CRANKSHAFT,L This part replaces 12261-48001.

12261-48002

Unavailable

13

BEARING, COUNTER SHAFT This part replaces 09262-20009.

09262-20073

$23.28

14

BEARING, LH

09262-25049

$38.05

15

OIL SEAL, RH

09283-26007

$7.37

16

OIL SEAL, LH This part replaces 09283-25037.

09283-25066

$7.50

17

SPACER

09180-20037

Unavailable

18

NO DESCRIPTION AVAILABLE This part replaces 21111-28000.

21111-28001

Unavailable

19

NUT

09140-18002

$3.87

20

WASHER

09166-18001

$2.71
