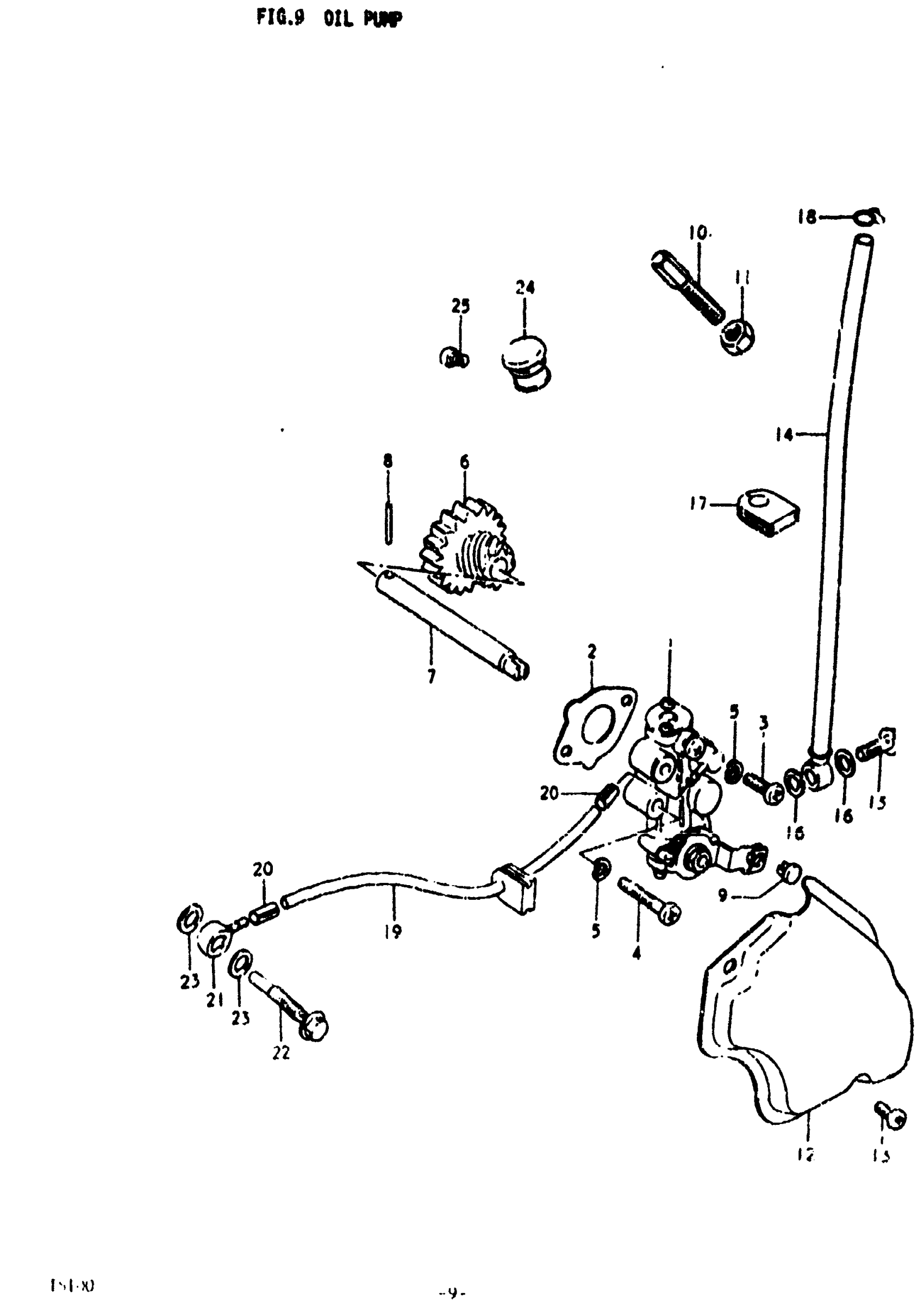

Suzuki TS100 (1979) OIL PUMP Diagram

#

Description
Price

1

PUMP, OIL This part replaces 16100-48010.

16100-48020

Unavailable

2

GASKET, OIL PUMP This part replaces 16731-03100.

16731-03101

$2.81

2

GASKET

16731-03101

$2.81

3

SCREW This part replaces 02112-05168.

02112-05167

$1.97

4

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

6

GEAR, OIL PUMP DRIVE

16321-48030

Unavailable

7

SHAFT, OIL PUMP DRIVE

16322-48000

Unavailable

8

PIN

09261-02001

$1.56

9

TERMINAL, CABLE This part replaces 16292-03111.

16292-03112

$5.05

10

BOLT

09119-08014

$3.55

11

.NUT This part replaces 08310-12068.

08310-00067

$2.13

12

CAP, OIL PUMP INSPECTION

11385-48000

$20.45

13

SCREW This part replaces 02112-06108.

02112-06107

$1.49

14

HOSE, OIL (L:512!97) This part replaces 16810-30500.

16810-07520

Unavailable

15

UNION BOLT

09360-06003

$3.76

16

GASKET

09168-06004

$1.49

17

GROMMET This part replaces 09309-08002.

09309-08015

$2.38

18

CLAMP

09401-08401

$1.54

19

HOSE, OIL NO.2 This part replaces 16820-48001.

16820-39101

$8.02

20

CLIP

09401-04401

$2.06

21

UNION This part replaces 09363-02001.

09363-02002

$8.23

22

UNION BOLT, CYLINDER

09360-06009

$6.83

23

GASKET

09168-06004

$1.49

24

PLUG(OD:19) This part replaces 09250-14002.

09250-14010

$2.25
