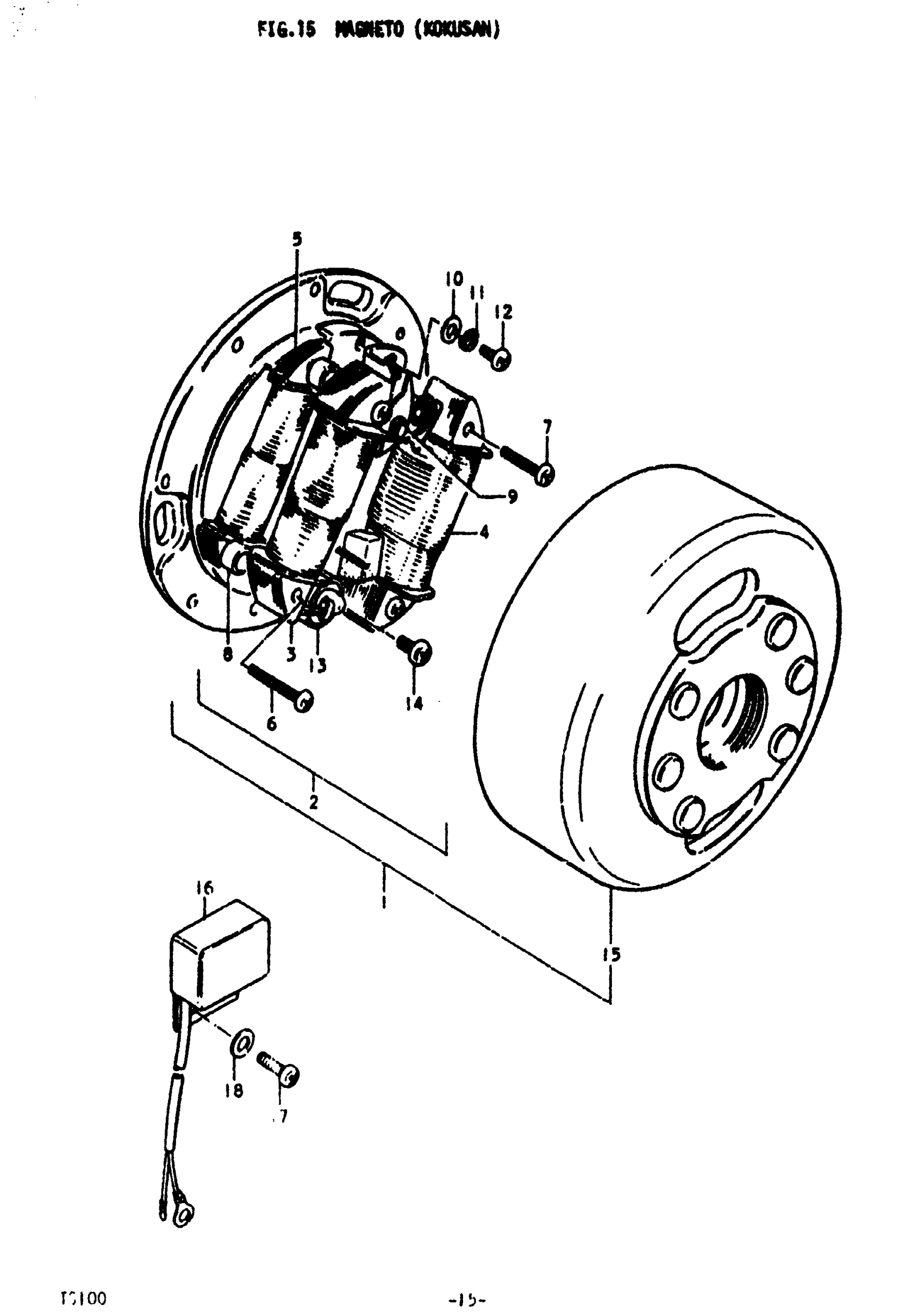

Suzuki TS100 (1979) MAGNETO (KOKUSAN) Diagram

#

Description
Price

1

STATOR ASSY | Includes Item(s) 2 - 15 This part replaces 32100-48610.

32101-48610

Unavailable

2

STATOR ASSY

32101-48610

Unavailable

3

COIL, PRIMARY

32140-48610

Unavailable

4

COIL, LIGHTING

32120-48610

Unavailable

5

COIL, CHARGING

32130-48610

Unavailable

6

SCREW (4X30) This part replaces 02111-04308.

09125-04023

$2.30

7

SCREW This part replaces 02112-04258.

02112-0425B

$2.34

8

SPACER

32160-48610

Unavailable

9

POINT ASSY, CONTACT

32240-03120

Unavailable

10

WASHER This part replaces 08322-21048.

08322-01047

$1.86

11

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

12

SCREW

09125-04001

Unavailable

13

CONDENSER

32341-22020

Unavailable

14

SCREW This part replaces 02112-05088.

02112-05087

$1.49

15

NO DESCRIPTION AVAILABLE This part replaces 32102-48610.

32102-17240

Unavailable

16

REGULATOR ASSY, VOLTAGE

32500-25600

Unavailable

17

SCREW This part replaces 02112-06128.

02112-06127

$1.84
