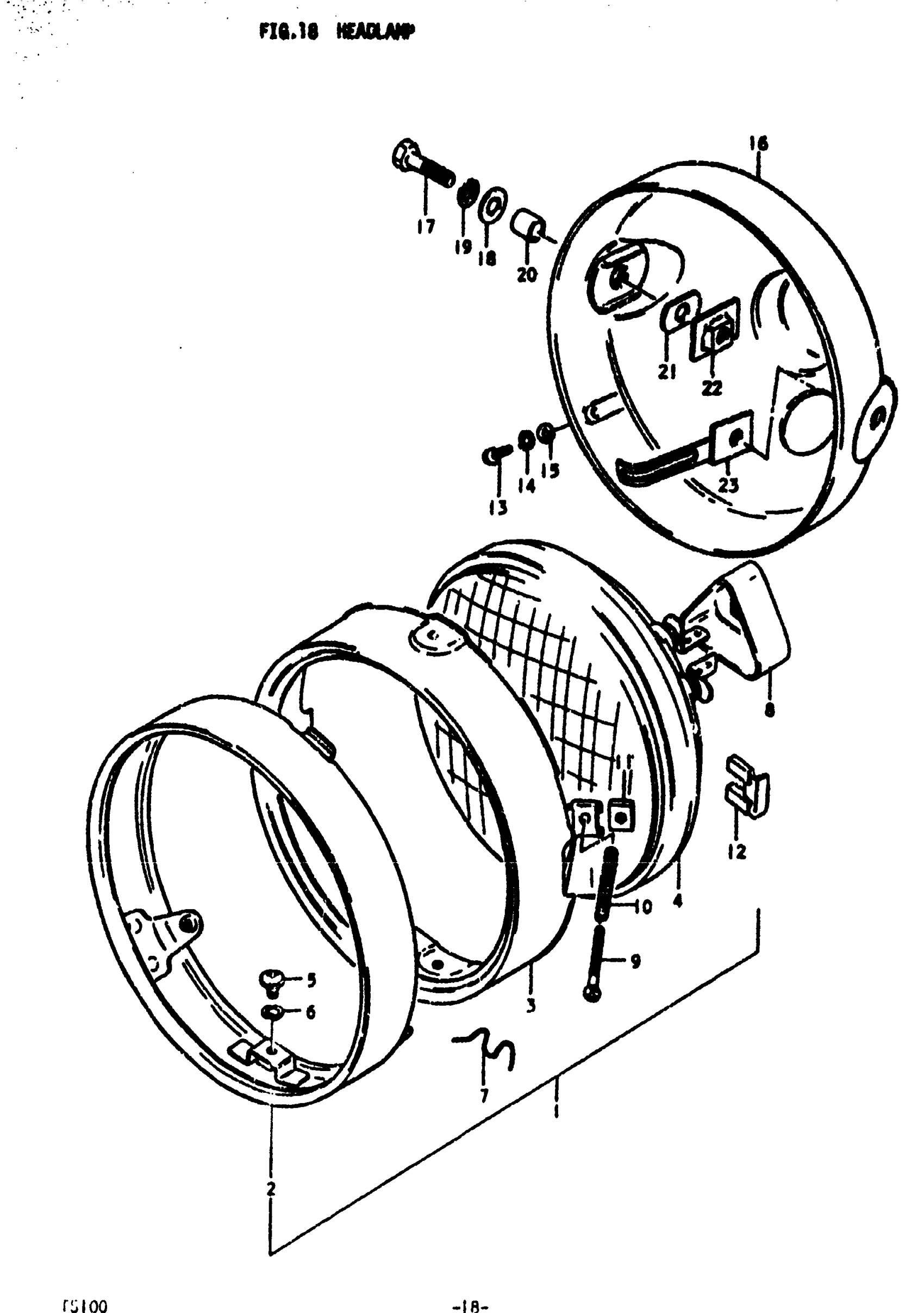

Suzuki TS100 (1979) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 12

35100-29611

Unavailable

2

RIM This part replaces 35111-29610.

35111-29611

Unavailable

2

RIM

35111-29611

Unavailable

3

RETAINER

35127-29610

Unavailable

4

UNIT | W

35121-29610

Unavailable

5

SCREW

35136-29610

Unavailable

6

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

7

SPRING

35128-29611

Unavailable

8

COVER

35173-29610

Unavailable

9

SCREW

35151-31610

Unavailable

10

SPRING This part replaces 35154-29610.

35154-33630

Unavailable

11

NUT

35152-15611

$3.25

12

COVER, FITING

35174-29610

Unavailable

13

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

14

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

15

WASHER This part replaces 08322-21048.

08322-01047

$1.86

16

HOUSING, HEADLAMP

51811-29302-291

Unavailable

17

BOLT

01204-08257

$1.96

18

WASHER This part replaces 08322-11088.

08322-01087

$2.13

19

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

20

SPACER This part replaces 09180-08030.

09180-08187

$2.65

21

CUSHION This part replaces 09329-12002.

09329-12005

$2.32

22

PLATE RH

51860-45000

$4.43
