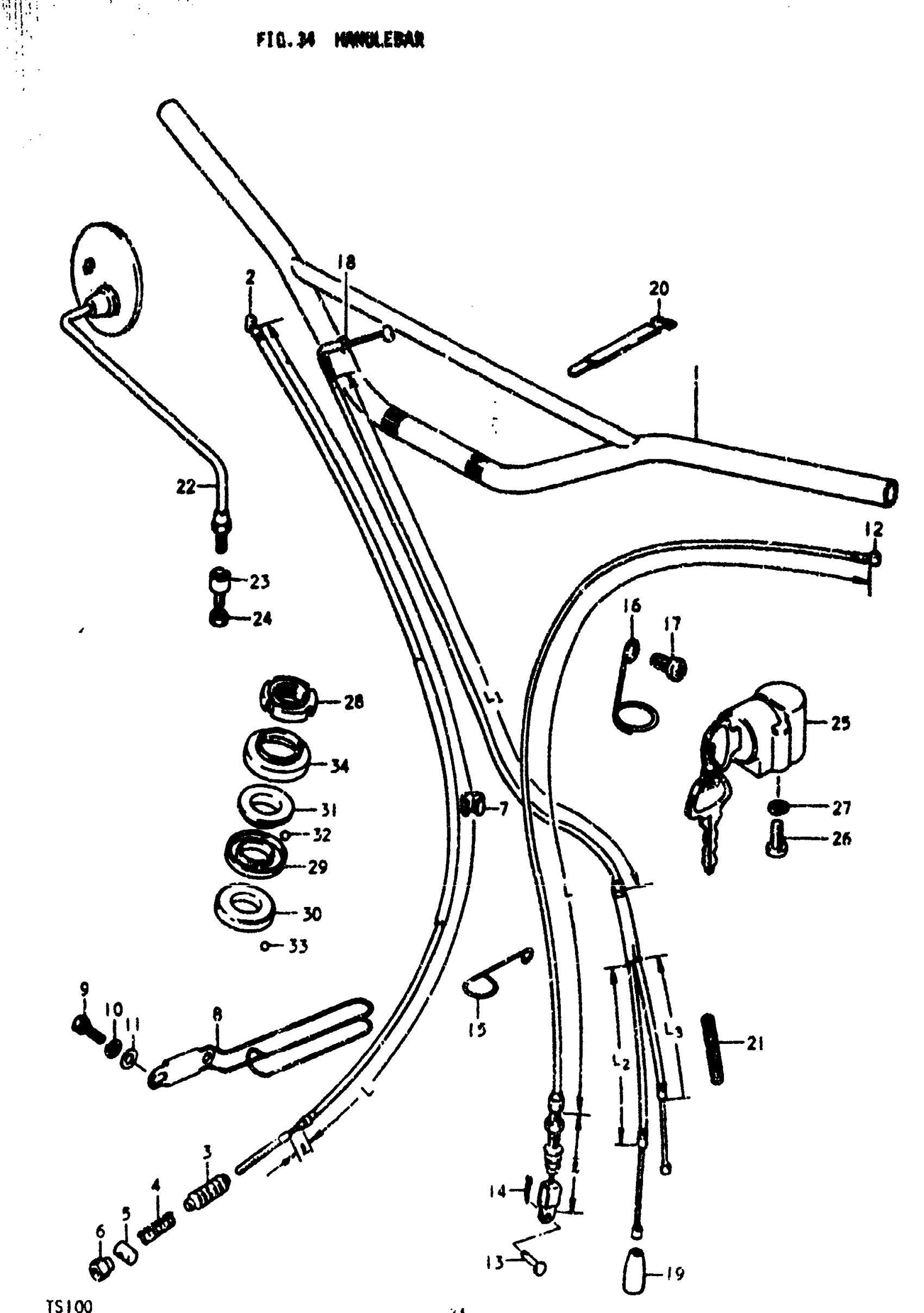

Suzuki TS100 (1979) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR This part replaces 56110-48101.

56110-29405-13L

$251.76

1

HANDLEBAR This part replaces 56110-48102.

56110-29405-13L

$251.76

1

HANDLEBAR This part replaces 56110-48103.

56110-29405-13L

$251.76

2

CABLE,FR BRAKE | :66; Includes Item(s) 3 - 6 This part replaces 58100-25300.

58100-25390

Unavailable

3

DUST SEAL

09287-07001

$2.00

4

SPRING

09440-06003

$2.44

5

PIN

09209-10001

$1.49

6

NUT

09150-05101

$3.04

7

CLIP, CABLE

09408-00002

$2.30

8

GUIDE,CABLE This part replaces 58620-30501.

34930-05203

$18.80

9

BOLT This part replaces 01107-08128.

01500-08127

$2.62

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

WASHER This part replaces 08322-11088.

08322-01087

$2.13

12

CABLE,CLUTCH | 136 This part replaces 58200-48000.

58200-46090

$14.75

13

PIN

09200-06011

Unavailable

14

.COTTER PIN This part replaces 04111-20156.

04111-2015A

$1.49

15

CLAMP

34948-29000

Unavailable

16

GUIDE, HIGHTENSION CORD This part replaces 34949-30001.

34949-30002

$5.69

17

SCREW This part replaces 02112-06088.

02112-06087

$1.49

18

CABLE ASSY, THROTTLE | 5366 L1:640, L2:330, L3:9

58300-48000

Unavailable

18

CABLE ASSY,THRO | 367~L1:640, L2:330, L3:2 This part replaces 58300-48001.

58300-48402

Unavailable

19

SEAL,DUST This part replaces 09287-07002.

09287-07006

$2.30

20

CLAMP This part replaces 09407-11302.

09407-18302

$2.28

21

PROTECTOR

58399-27100

$3.78

22

MIRROR ASSY,RR This part replaces 56500-31011.

56500-31014

$48.02

22

MIRROR ASSY,RR This part replaces 56600-31011.

56600-31014

$48.02

23

CUSHION, REAR VIEW MIRROR This part replaces 56700-31001.

56700-45400

$21.90

24

NUT This part replaces 08310-22108.

08310-00107

$2.19

25

LOCK ASSY, STEERING This part replaces 51910-25310.

51910-25311

$40.33

26

SCREW This part replaces 02112-05128.

02112-05127

$1.97

27

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

28

NUT, STEERING STEM

51631-28000

$17.37

29

RACE,STEERING INNER UPPER

51611-20002

$11.95

30

RACE, INNER LOWER

51611-33002

$13.81

31

RACE,STEERING OUTER UPPER

51621-28000

$11.95

32

STEEL BALL

06111-06003

$1.49

33

STEEL BALL

06111-08003

$1.49
