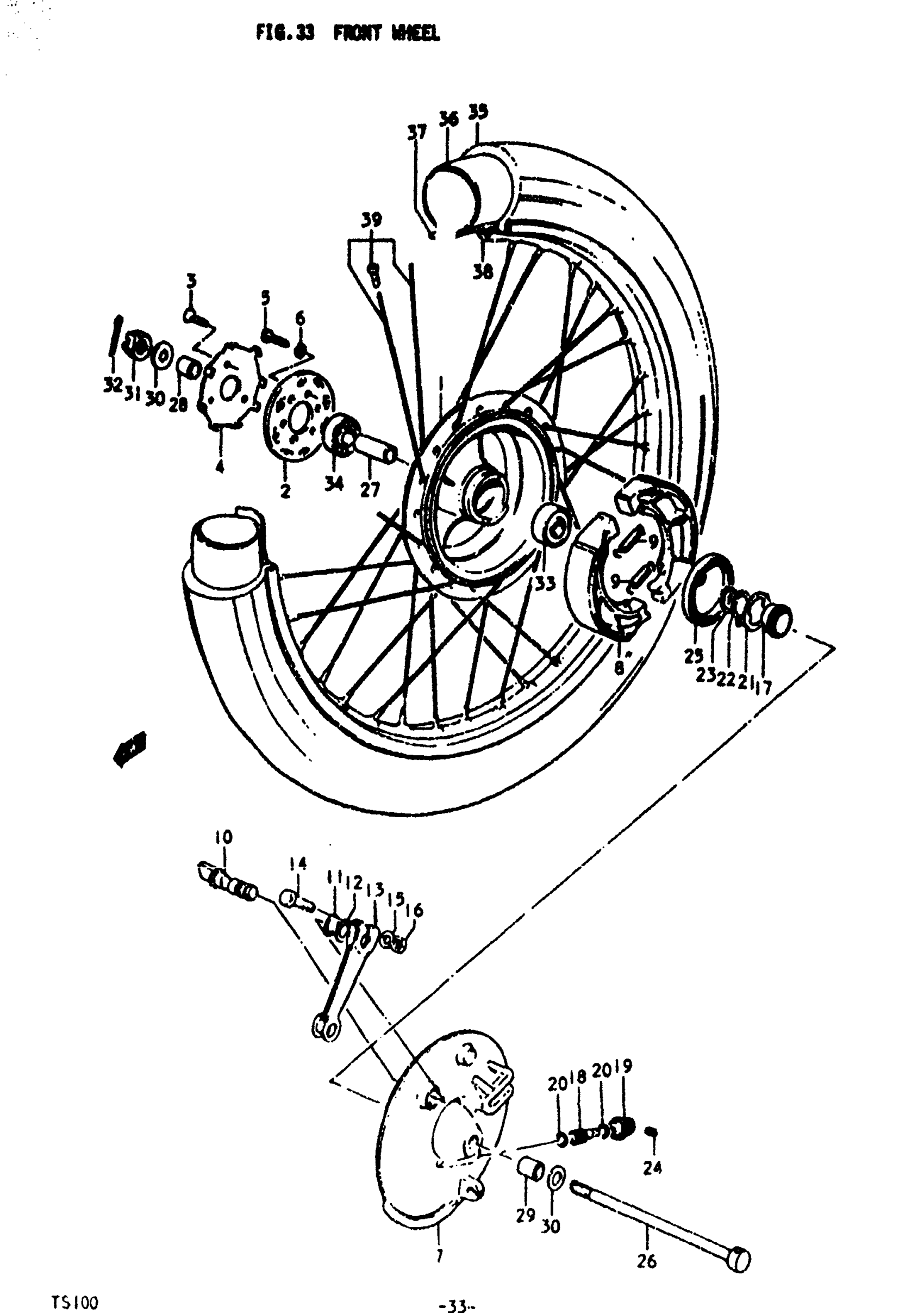

Suzuki TS100 (1979) FRONT WHEEL Diagram

#

Description
Price

1

HUB, WHEEL

54110-29300

Unavailable

2

HUB FLANGE, FRONT RH

54112-30500

Unavailable

3

SCREW This part replaces 02122-06168.

02122-06167

$1.49

4

RETAINER, HUB BEARING RH

54151-30500

$8.42

5

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

PANEL

54210-29300

Unavailable

8

SHOE SET, BRAKE This part replaces 54410-07002.

54401-07810

Unavailable

9

SPRING This part replaces 09443-07001.

09443-07025

$2.08

10

CAM, BRAKE This part replaces 54441-29300.

54441-29305

$20.02

10

CAM, BRAKE This part replaces 54441-29301.

54441-29305

$20.02

11

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

12

WASHER | .6 This part replaces 09160-14001.

09160-14055

$2.39

13

LEVER, BRAKE CAM

54451-29300

Unavailable

14

BOLT

09100-06078

$2.38

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

.NUT This part replaces 08310-11068.

08310-00067

$2.13

17

NO DESCRIPTION AVAILABLE This part replaces 54611-28001.

54611-28002

Unavailable

18

NO DESCRIPTION AVAILABLE This part replaces 54611-28000.

54611-28002

Unavailable

19

BUSH

54632-01001

$12.80

20

WASHER,5.1X9X0. This part replaces 09160-05001.

09160-05001-A05

$1.87

21

DRIVER

54661-29300

$4.52

22

THRUST WASHER

09160-18002

$2.38

23

CIRCLIP

08331-11189

Unavailable

24

SCREW,3X4.3 This part replaces 09134-03101.

09134-03101-A05

$1.78

25

OIL SEAL This part replaces 09285-43001.

09283-43004

$14.03

26

AXLE,FRONT This part replaces 64711-43000.

64711-43001

$41.97

27

SPACER (12.5X19X52) | 2 This part replaces 09180-12041.

09180-12144

$10.30

28

NO DESCRIPTION AVAILABLE | 8.5 This part replaces 09180-12076.

09180-12141

Unavailable

29

SPACER,

09180-12063

$7.30

30

WASHER This part replaces 08322-21128.

08322-01127

$1.84

31

NUT This part replaces 08314-31128.

08314-3112A

$2.41

32

PIN This part replaces 04111-30308.

04111-3030A

$1.49

33

BEARING This part replaces 08143-62017.

08143-6201B

$10.80

34

BEARING This part replaces 08123-62017.

08133-62017

$18.47

35

TIRE, FRONT

55100-25600

Unavailable

36

TUBE, INNER

55200-29010

Unavailable

37

PROTECTOR, WHEEL INNER TUBE FRONT This part replaces 55261-29010.

55261-15020

$3.15

38

RIM, WHELL

55311-48120

Unavailable
