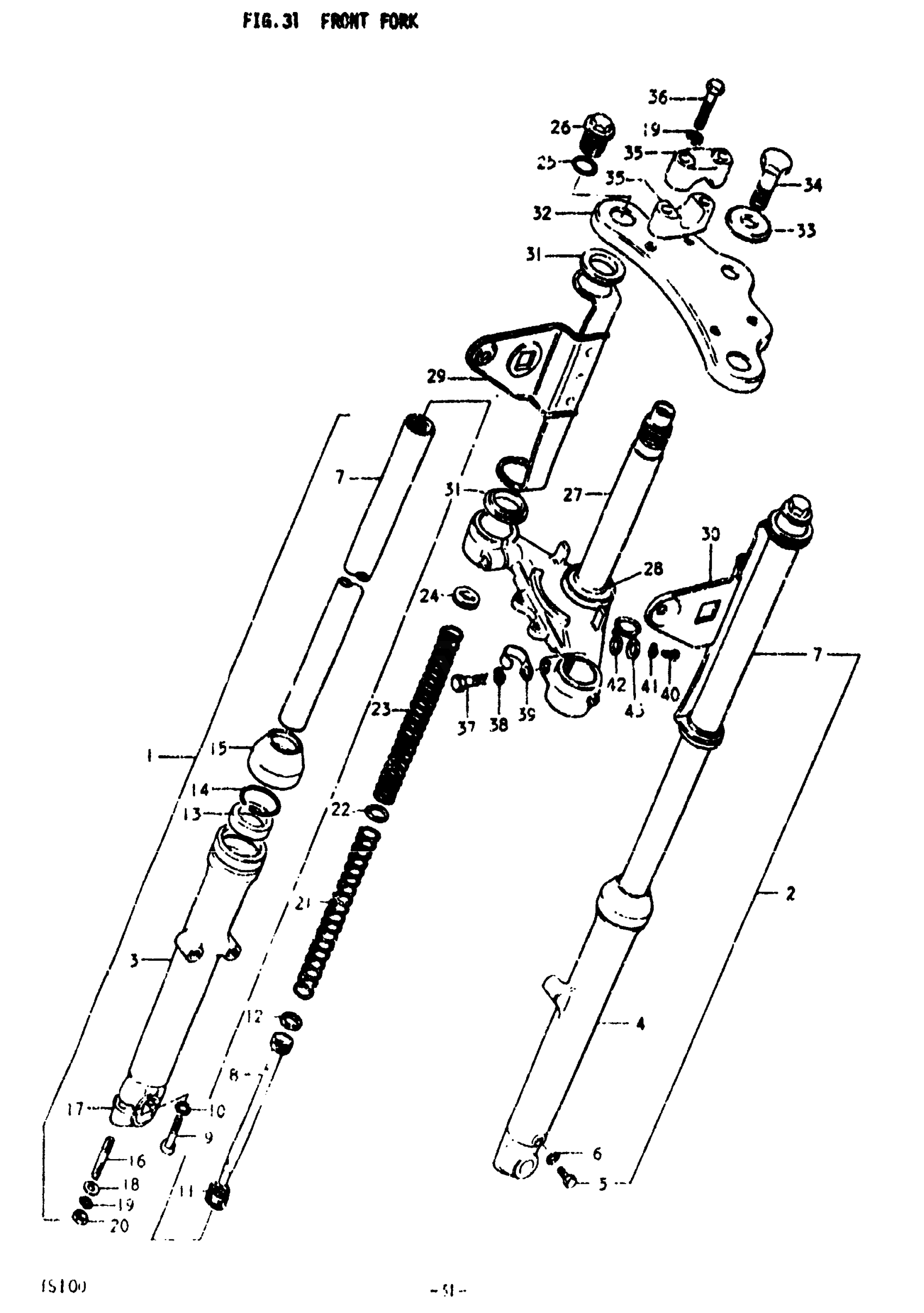

Suzuki TS100 (1979) FRONT FORK Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 42 This part replaces 51100-48130-291.

51100-48131-291

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 51103-48130.

51103-48131

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 51104-48130.

51104-48131

Unavailable

3

NO DESCRIPTION AVAILABLE This part replaces 51131-48130.

51131-48300-291

Unavailable

4

BOTTOM CASE, LH

51141-48130

Unavailable

5

BOLT

09100-06011

$1.67

6

GASKET

51183-31030

$3.77

7

NO DESCRIPTION AVAILABLE This part replaces 51110-48130.

51110-48131

Unavailable

8

PIPE, UNDER SEATS

51146-48130

Unavailable

9

BOLT

51147-48130

$4.34

10

O RING This part replaces 51148-31030.

51148-36011

$3.56

11

SPRING, REBOUND STOP

51177-46100

Unavailable

12

RING , PLSTON

51196-46100

$8.42

13

OIL SEAL, FRONT This part replaces 51153-26130.

51153-13200

Unavailable

14

STOPPER RING, OIL SEAL

51156-48130

$5.32

15

DUST SEAL This part replaces 51173-26130.

51571-13200

Unavailable

16

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.03

17

HOLDER, AXLE

51132-48000

Unavailable

18

WASHER This part replaces 08322-21088.

08322-01087

$2.13

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

20

NUT This part replaces 08310-22088.

08310-00087

$2.13

21

SPRING A

51171-48130

Unavailable

22

JOINT, SPRING

51192-46100

$4.52

23

SPRING B

51184-48130

Unavailable

24

NUT

51353-48130

Unavailable

25

O RING (D:2.4,ID:17.8) This part replaces 51181-46190.

09280-18004

$5.18

26

CAP

51351-46190

$20.45

27

NO DESCRIPTION AVAILABLE This part replaces 51410-48130.

51410-48131

Unavailable

28

RACE, OUTER LOWER

51621-33001

$16.25

29

BRACKET, HEADLAMP RH

51530-48130-291

Unavailable

30

BRACKET, HEADLAMP LH

51540-48130-291

Unavailable

31

CUSHION, BRACKET

51553-46100

$6.23

32

STEM HEAD

51311-48130-291

Unavailable

33

WASHER This part replaces 51356-07030.

51356-46030

Unavailable

34

BOLT This part replaces 51352-46100.

51352-46101

$11.83

35

HOLDER, HANDLEBAR

56211-27200-291

$17.90

36

BOLT This part replaces 01107-08558.

01500-08557

$3.16

37

BOLT

01107-12358

Unavailable

38

LOCK WASHER This part replaces 08321-21128.

08321-01127

$2.06

39

CLIP, FRONT

51455-36030

Unavailable

40

SCREW This part replaces 02112-06128.

02112-06127

$1.84

41

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

42

CLIP, REAR

51452-46100

Unavailable
