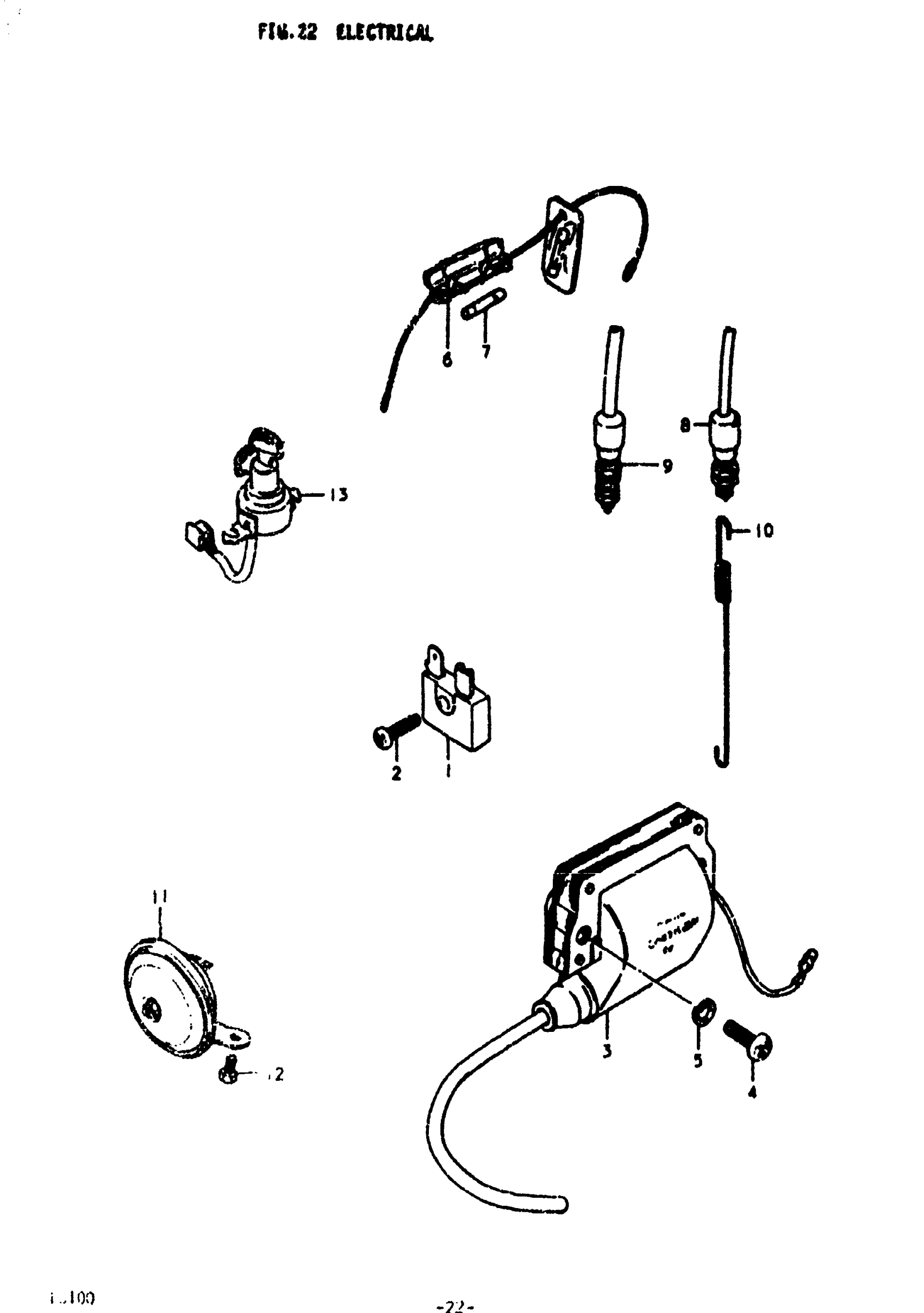

Suzuki TS100 (1979) ELECTRICAL Diagram

#

Description
Price

1

DIODE This part replaces 32800-19063.

32800-16A00

$23.07

2

SCREW This part replaces 02112-05168.

02112-05167

$1.97

3

COIL ASSY,IGNIT This part replaces 33410-43010.

33410-43011

Unavailable

3

COIL ASSY,IGNIT This part replaces 33410-43020.

33410-43011

Unavailable

4

SCREW This part replaces 02112-06258.

02112-06257

$1.78

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

6

FUSE CASE ASSY | Includes Item(s) 7 This part replaces 36740-35011.

36740-35012

$11.60

7

FUSE

09481-10001

$1.71

8

SWITCH, REAR BRAKE LAMP This part replaces 37740-19051.

37740-48071

$19.18

9

SWITCH, REAR BRAKE LAMP This part replaces 37740-04570.

37740-48071

$19.18

10

SPRING

09443-06005

$3.37

11

NO DESCRIPTION AVAILABLE This part replaces 38500-48130.

38500-48080

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 38500-48131.

38500-48080

Unavailable

12

BOLT

09100-06011

$1.67

12

BOLT This part replaces 01107-06108.

01500-06107

$2.06
