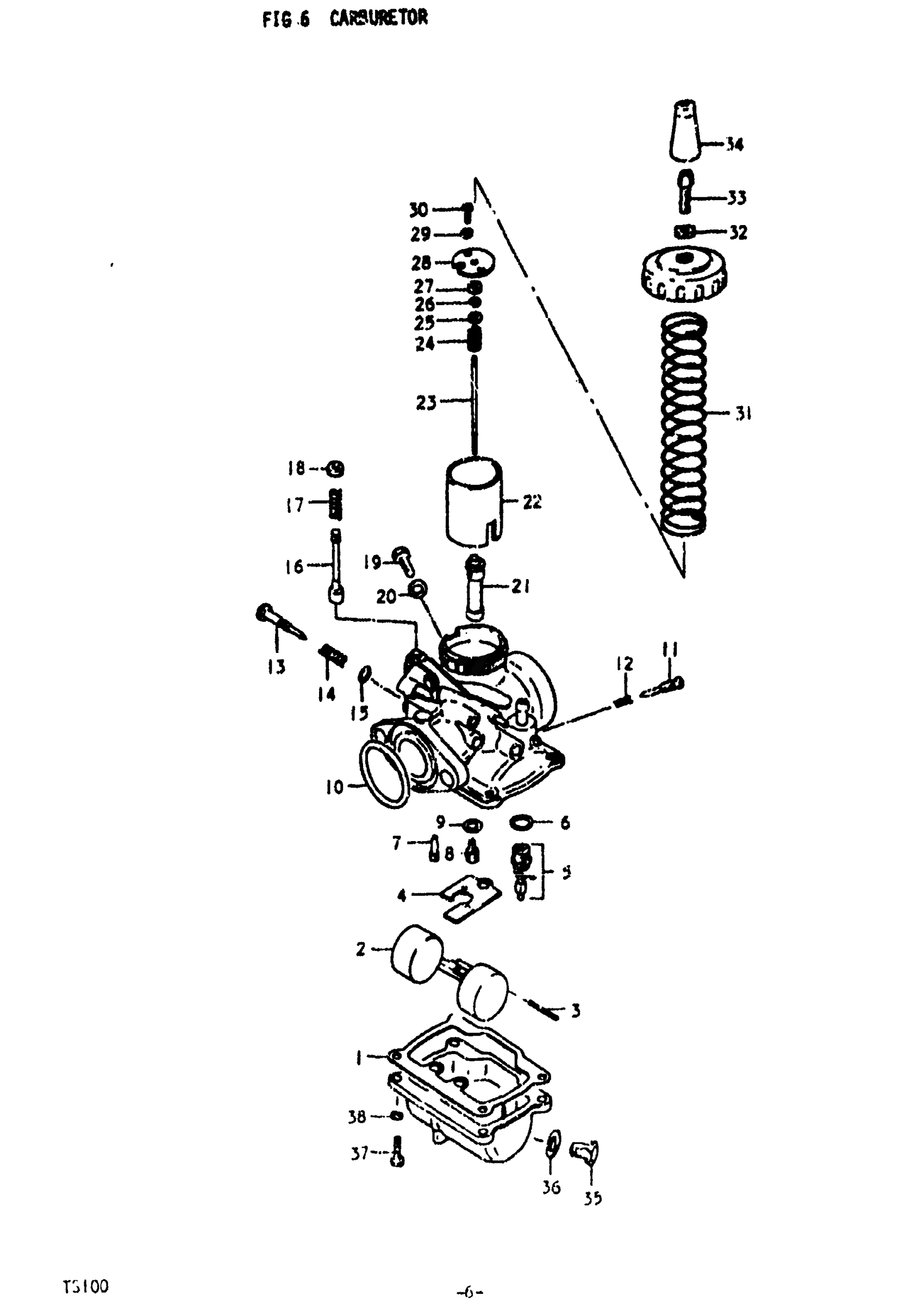

Suzuki TS100 (1979) CARBURETOR (TS100N) (TS100C F.NO.119365-TSTCON) Diagram

#

Description
Price

0

CARBURETOR | Includes Item(s) 1 - 37

13200-48130

Unavailable

1

GASKET, FLOAT CHAMBER

13251-11010

$5.14

2

FLOAT

13252-11010

$28.07

3

.PIN, FLOAT

13254-01010

$3.41

4

PLATE

13259-97010

$3.42

5

VALVE ASSY, NEEDLE

13370-18111

$49.26

6

GASKET, NEEDLE VALVE

13392-58600

$1.85

7

JET, PILOT

09492-17006

$8.70

8

JET, MAIN

09491-23010

Unavailable

9

WASHER, NEEDLE JET

13382-03110

$2.80

10

O RING This part replaces 13295-28010.

13295-28011

$3.07

11

SCREW, PILOT AIR

13269-01010

$15.58

12

SPRING, PILOT AIR SCREW

13268-01010

$4.11

13

SCREW, THROTTLE STOP

13267-41640

$21.62

14

SPRING

13268-48110

$6.15

15

O RING This part replaces 13294-30010.

13278-02340

$1.91

16

VALVE, STARTER

13411-15010

Unavailable

17

SPRING

13417-18630

$6.77

18

CAP

13682-98010

$4.05

19

PLUG

13664-18654

$10.15

20

WASHER

13663-31010

$2.80

21

NOZZLE, NEEDLE

09494-00242

Unavailable

22

VALVE, THROTTLE

13551-48020

Unavailable

23

NEEDLE, JET

13383-48130

Unavailable

24

SPRING

13388-47010

$9.17

25

WASHER

13382-47010

$3.35

26

CLIP, NEEDLE

13394-10010

$6.15

27

RING

13387-47010

$6.80

28

SEAT, THROTTIA VALVA SPRING

13581-48020

Unavailable

29

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.18

30

SCREW This part replaces 02111-03067.

02112-0306B

$1.61

31

SPRING, THROTTLE VALVE

13573-27650

Unavailable

32

NUT, CABLE ADJUSTER

13661-16600

$4.37

33

ADJUSTER, CABLE

13577-48110

$9.37

34

BOOT, CABLE ADJUSTER

13681-16601

$7.78

35

SCREW

13247-05010

$4.81

36

GASKET

13249-05010

$1.93

37

SCREW This part replaces 02112-04168.

02112-0416A

$1.24
