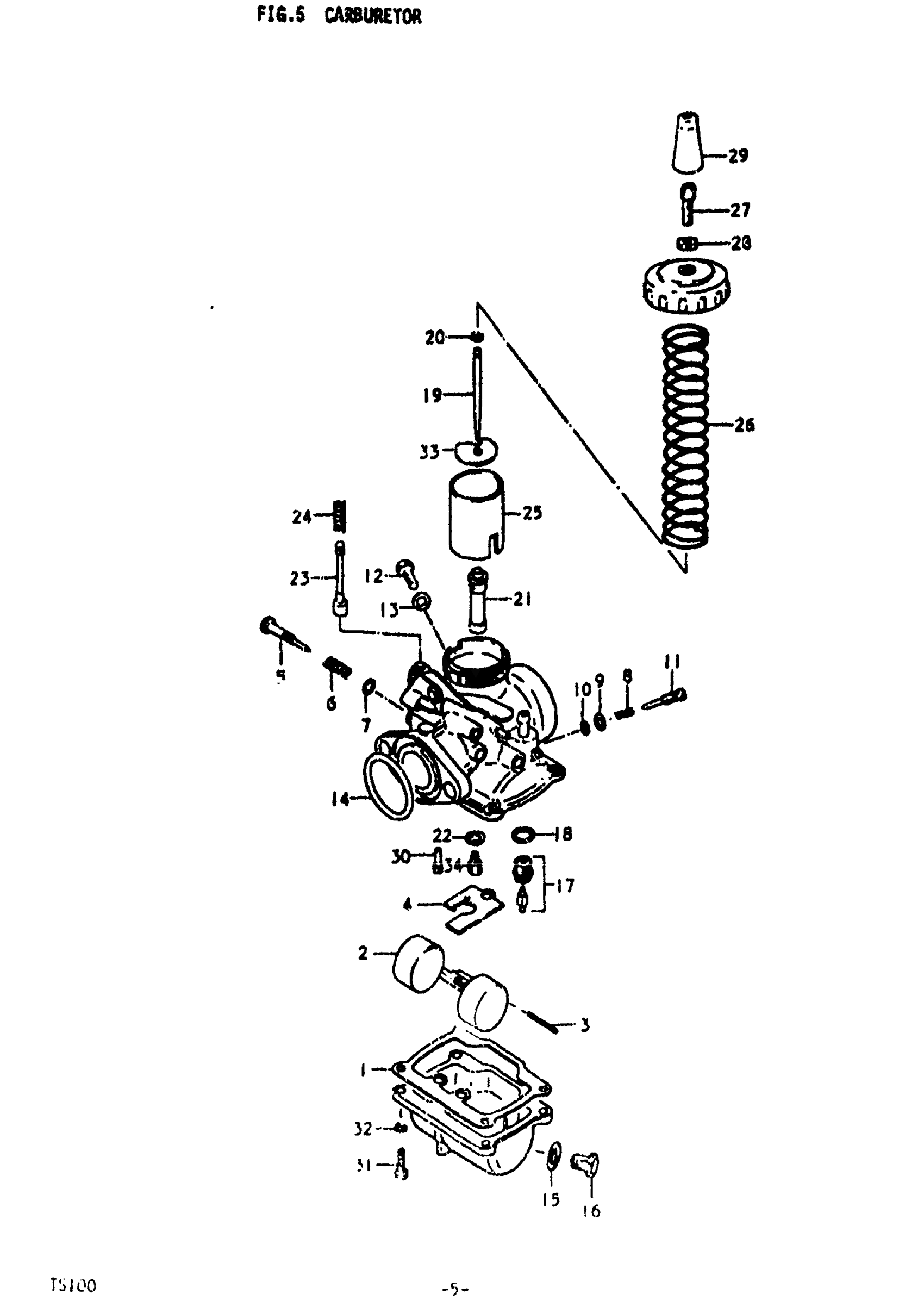

Find the part on the Carburetor diagram for your 1979 Suzuki TS100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Suzuki TS100 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

CARBURETOR ASSY | Includes Item(s) 1 - 34 This part replaces 13200-48111.

13200-48120

1
Out of stock

1

GASKET, FLOAT CHAMBER

13251-11010

1
Out of stock

2

FLOAT

13252-11010

1
Out of stock

3

.PIN, FLOAT

13254-01010

1

$4.80

In stock

4

PLATE

13259-97010

1
Out of stock

5

SCREW, THROTTLE STOP

13267-41640

1
Out of stock

6

SPRING

13268-48110

1
Out of stock

7

O RING This part replaces 13294-30010.

13278-02340

1
Out of stock

8

SPRING, PILOT AIR

13271-96110

1
Out of stock

9

WASHER This part replaces 13291-41640.

13606-18E00

1
Out of stock

10

O RING

13278-45010

1

$7.12

In stock

11

SCREW, PILOT AIR

13269-41640

1
Out of stock

12

PLUG

13664-18654

1
Out of stock

13

WASHER

13663-31010

1
Out of stock

14

O RING This part replaces 13295-28010.

13295-28011

1
Out of stock

15

GASKET

13249-05010

1
Out of stock

16

SCREW

13247-05010

1
Out of stock

17

VALVE,NEEDLE This part replaces 13370-28010.

13370-48051

1
Out of stock

18

GASKET, NEEDLE VALVE

13392-58600

2
Out of stock

19

NEEDLE, JET

13383-33010

1
Out of stock

20

CLIP, NEEDLE

13394-10010

1

$4.76

In stock

21

NOZZLE, NEEDLE

09494-00207

1
Out of stock

22

WASHER, NEEDLE JET

13382-03110

1

$2.92

In stock

23

VALVE, STARTER

13411-15010

1
Out of stock

24

SPRING

13417-18630

1
Out of stock

25

VALVE, THROTTLE

13551-48110

1
Out of stock

26

SPRING, THROTTLE VALVE This part replaces 13573-97010.

13573-30900

1
Out of stock

27

ADJUSTER, CABLE

13577-48110

1
Out of stock

28

NUT, CABLE ADJUSTER

13661-16600

1
Out of stock

29

BOOT, CABLE ADJUSTER

13681-16601

1
Out of stock

30

JET, PILOT (30) This part replaces 09492-30003.

09492-30006

1
Out of stock

31

4

$1.34

In stock

32

LOCK WASHER This part replaces 08321-21048.

08321-0104A

4
Out of stock

33

SEAT, THROTTLE VALVE SPRING

13581-28010

1
Out of stock

34

JET, MAIN

09491-85002

1
Out of stock

34

JET, MAIN

09491-80003

1
Out of stock

34

JET, MAIN

09491-90002

1
Out of stock

34

JET, MAIN This part replaces 09491-95002.

09491-95006

1
Out of stock

34

JET, MAIN

09491-20002

1
Out of stock
