1976 Kawasaki Trial Transmission/change Drum Diagram

← All diagrams

Find the part on the Transmission/change Drum diagram for your 1976 Kawasaki Trial, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

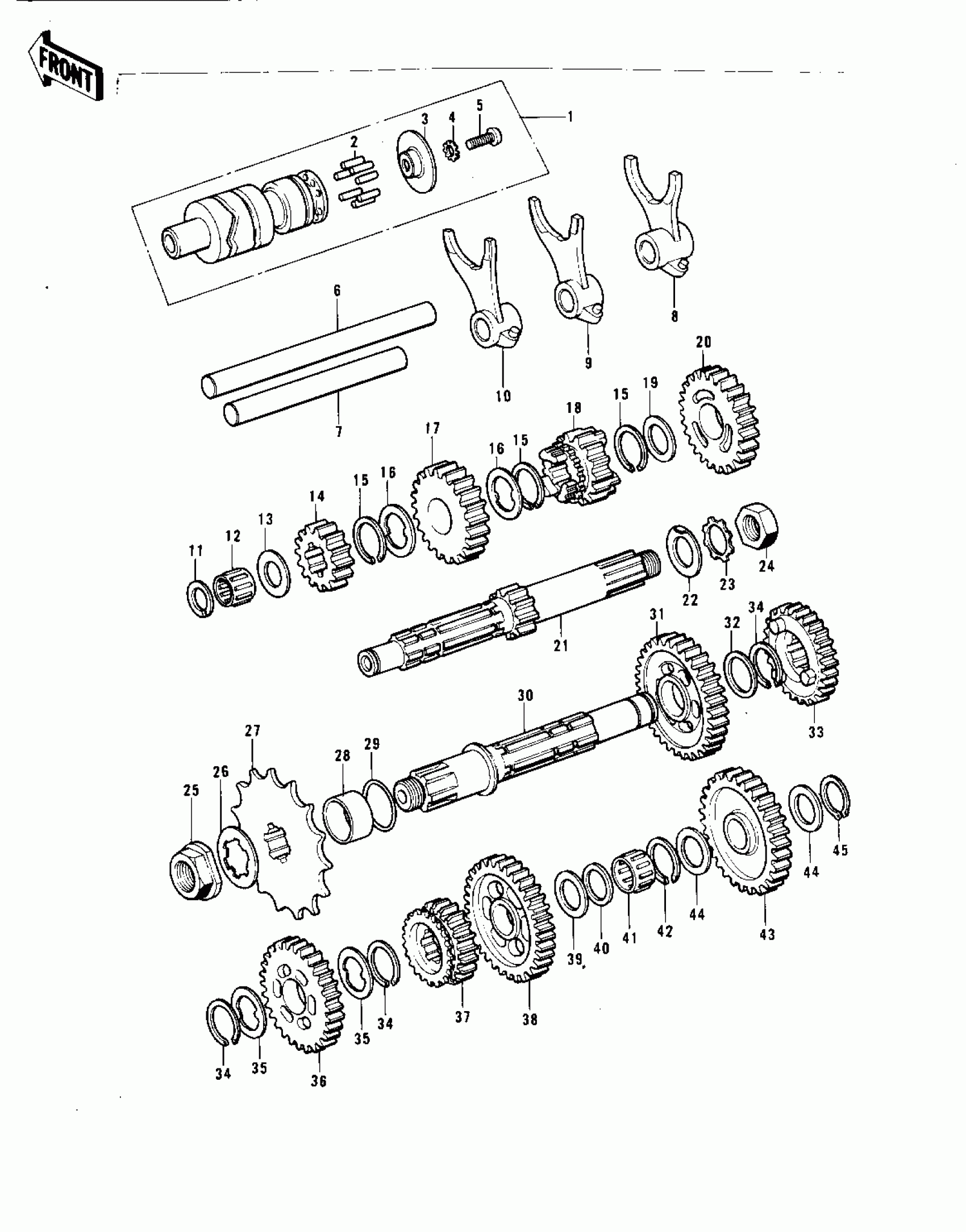

1976 Kawasaki Trial Transmission/change Drum Diagram

#

Description
Price
Status
Order Qty

1

DRUM ASSY-CHANGE

13239-016

Out of stock

2

PIN,DOWEL,4X16.8

92042-029

$4.52

In stock

3

$20.34

In stock

4

WASHER LOCK 6MM

464H0600

Out of stock

5

$1.32

In stock

6

ROD-SHIFT,L=93.7

49047-1003

Out of stock

7

ROD,SHIFT 71.7M/M

49047-1002

Out of stock

8

FORK,SELECTOR,LOW

13140-061

Out of stock

9

FORK,SELECTOR,2ND&3RD

13140-062

Out of stock

10

FORK,SELECTOR,4TH&TOP

13140-063

Out of stock

11

CIRCLIP,DRIVE SHAFT

92033-030

Out of stock

12

BEARING,BALL

92046-038

Out of stock

13

WASHER,THRUST,15MM

92022-279

Out of stock

14

2ND GEAR,DRIVE 15T

13130-040

Out of stock

15

RING-SNAP,18MM

92033-029

$7.79

In stock

16

WASHER,LOCK

92024-059

Out of stock

17

4TH GEAR,DRIVE 23T

13134-022

Out of stock

18

3RD GEAR

13132-042

Out of stock

19

WASHER,20.5X25.5X0.5

92022-252

Out of stock

20

TOP GEAR

13136-055

Out of stock

21

SHAFT,DRIVE 12T

13127-050

Out of stock

22

WASHER,16.8X32X1.6

92022-1277

Out of stock

23

WASHER,LOCK,16MM

464H1600

Out of stock

24

NUT,LOCK,16MM

92015-072

Out of stock

25

NUT,18MM

92015-075

Out of stock

26

WASHER,LOCK

92024-065

Out of stock

27

ENGINE SPROCKET,15T

13144-064

Out of stock

27

ENGINE SPROCKET 14T

13144-059

Out of stock

27

ENGINE SPROCKET,13T

13144-067

Out of stock

28

$8.27

In stock

29

RING-O

92055-035

$3.97

In stock

30

SHAFT,OUTPUT

13128-043

Out of stock

31

2ND GEAR,OUTPUT 37T

13131-047

Out of stock

32

WASHER,22.3X27X0.5

92022-198

Out of stock

33

4TH GEAR,OUTPUT 28T

13135-028

Out of stock

34

$3.94

In stock

35

WASHER,TOOTHED,22.5X27X0.5

92024-039

Out of stock

36

3RD GEAR,OUTPUT.33T

13133-039

Out of stock

37

TOP GEAR,OUTPUT 22T

13137-033

Out of stock

38

LOW GEAR,OUTPUT 39T

13129-055

Out of stock

39

WASHER,PLAIN

92022-280

Out of stock

40

WASHER,PLAIN

92022-281

Out of stock

41

BEARING-NEEDLE

92046-1184

Out of stock

42

RING-SNAP

92033-032

$3.94

In stock

43

IDLE GEAR 28T

13073-012

Out of stock

44

WASHER-THRUST

92022-197

Out of stock

45

$3.43

In stock
