1976 Kawasaki Trial Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 1976 Kawasaki Trial, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

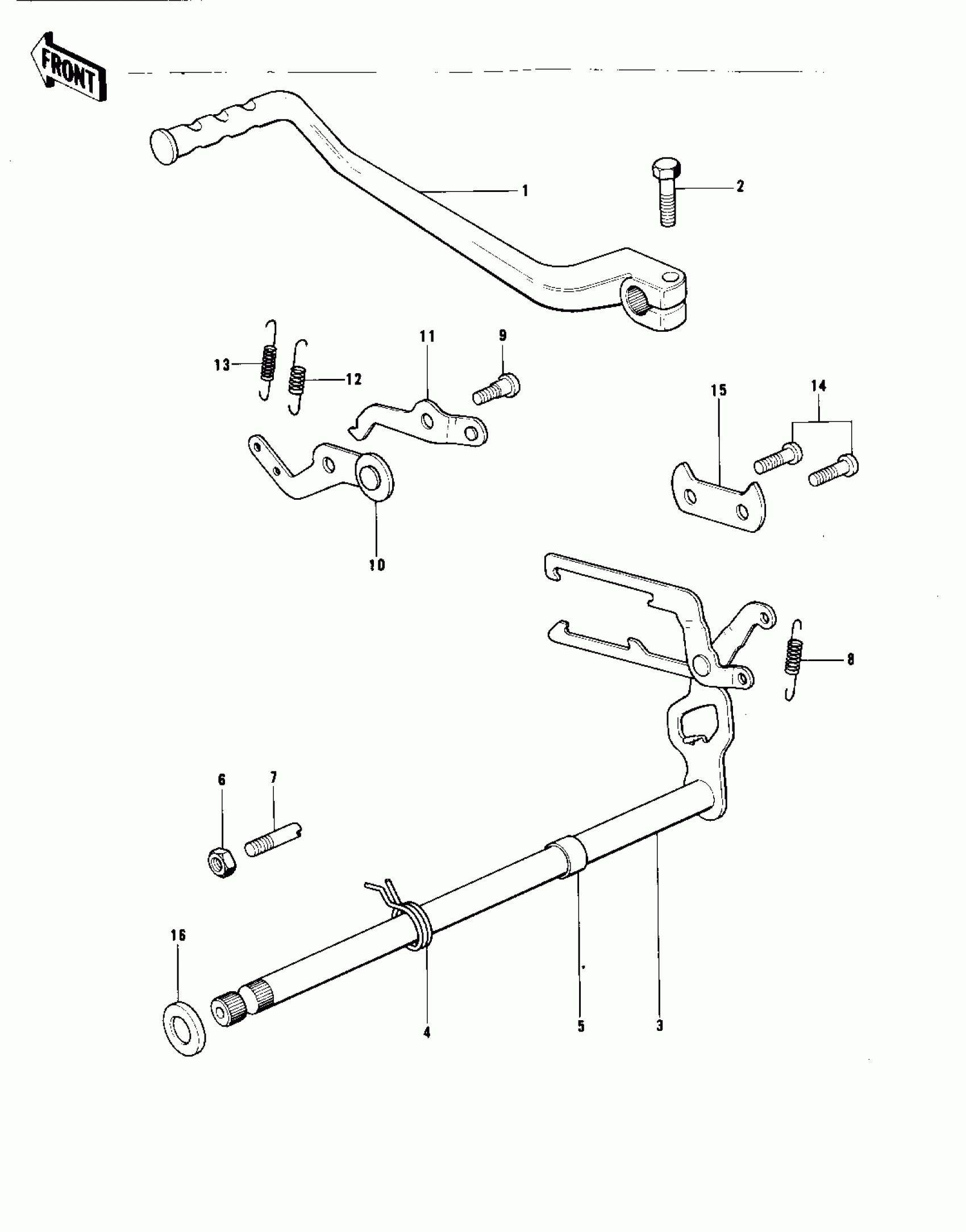

1976 Kawasaki Trial Gear Change Mechanism Diagram

#

Description
Price
Status
Order Qty

1

PEDAL,GEAR CHANGE

13156-062

Out of stock

2

BOLT-UPSET,6X20

112G0620

Out of stock

2

BOLT-UPSET,6X20

112G0620

Out of stock

3

LEVER ASSY,GEAR CHANG

13161-033

Out of stock

4

SPRING,TENSION

92081-1129

$7.48

In stock

5

COLLAR

92027-189

Out of stock

6

NUT 8MM

312B0800

Out of stock

7

BOLT,RETURN SPRING

92001-1401

$4.17

In stock

8

$4.34

In stock

9

SCREW,6MM

92011-023

Out of stock

10

LEVER ASSY,GEAR CHANG

13236-006

Out of stock

11

LEVER ASSY,GEAR CHANG

13236-007

Out of stock

12

SPRING-COIL

92081-091

Out of stock

13

SPRING

92081-119

Out of stock

14

$1.32

In stock

15

PLATE,CHANGE DRUM

13169-012

$15.44

In stock

16

$1.83

In stock
