1976 Kawasaki Trial Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1976 Kawasaki Trial, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

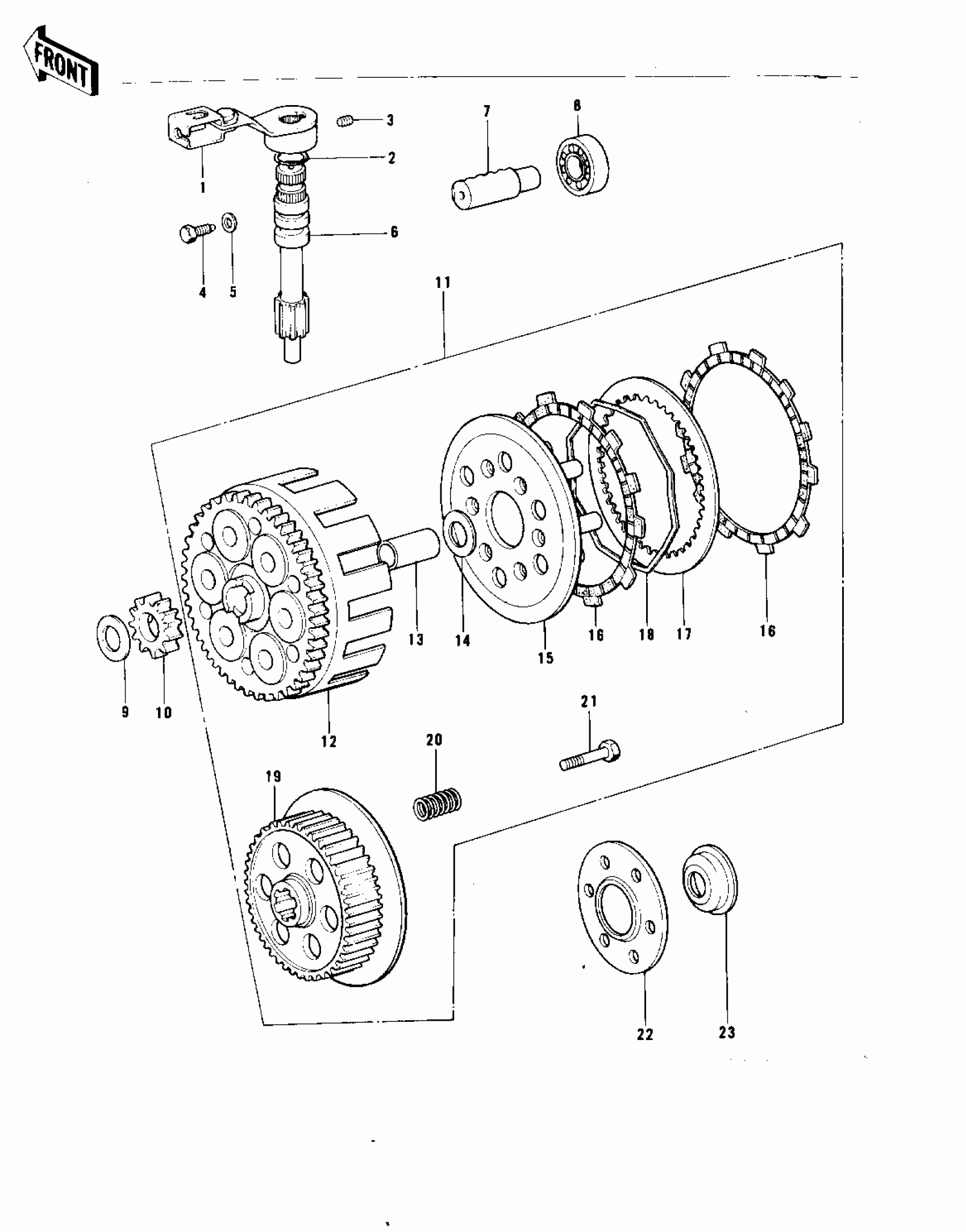

1976 Kawasaki Trial Clutch Diagram

#

Description
Price
Status
Order Qty

1

LEVER,CLUTCH RELEASE

13102-024

Out of stock

2

O RING,10MM

670B2010

$1.31

In stock

3

SCREW,CLUTCH RELEASE

92013-005

Out of stock

4

BOLT,CLUTCH RELEASE

92003-130

Out of stock

5

GASKET,6X14X0.8

92065-092

$3.46

In stock

6

SHAFT,CLUTCH RELEASE

13106-009

Out of stock

7

ROD,CLUTCH PUSH

13116-025

Out of stock

8

BEARING-BALL,#627

92045-026

$18.51

In stock

9

WASHER,20.5X34X2

92022-031

$12.47

In stock

10

PINION,KICK GEAR 16T

13075-011

Out of stock

11

CLUTCH-ASSY

13081-076

Out of stock

12

HOUSING,CLUTCH

13095-047

Out of stock

13

BUSHING,CLUTCH

92028-173

$11.85

In stock

14

WASHER,CLUTCH THRUST

92022-282

Out of stock

15

WHEEL,CLUTCH

13086-017

Out of stock

16

PLATE-FRICTION

13088-1015

$19.58

In stock

17

PLATE CLUTCH STEEL

13089-003

$11.25

In stock

18

RING-CLUTCH STEEL

13229-002

Out of stock

19

HUB,CLUTCH

13087-041

Out of stock

20

SPRING,CLUTCH

92081-123

Out of stock

21

BOLT,5X18

92003-078

Out of stock

22

HOLDER,CLUTCH

13091-015

Out of stock

23

PUSHER,CLUTCH RELEASE

13114-008

Out of stock
