1976 Kawasaki Trial Rear Hub/brake/chain Diagram

← All diagrams

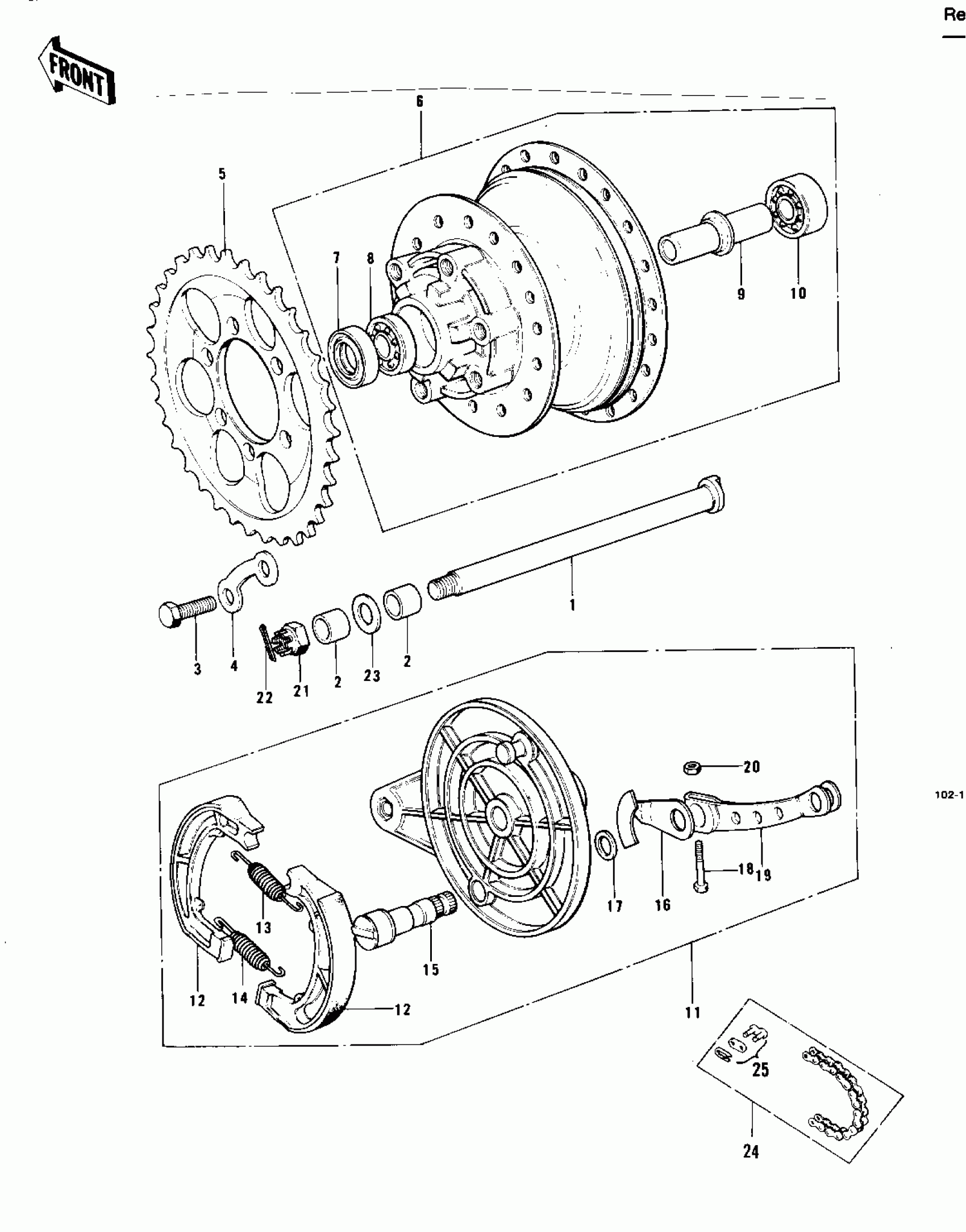

Find the part on the Rear Hub/brake/chain diagram for your 1976 Kawasaki Trial, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki Trial Rear Hub/brake/chain Diagram

#

Description
Price
Status
Order Qty

1

AXLE,REAR

42031-046

Out of stock

2

COLLAR-REAR AXLE

42032-036

Out of stock

3

BOLT-HEX HEAD,10X25

92001-087

Out of stock

4

WASHER LOCK

92088-007

Out of stock

5

REAR,SPROCKET 52T

42041-151

Out of stock

6

DRUM ASY,RR BK,BUFF

42005-029-80

Out of stock

7

OIL SEAL RR BRK DRUM

92050-009

Out of stock

8

BEARING-BALL,#6302C3

601B6302

Out of stock

9

SPACER-RR HUB BEARING

42010-019

Out of stock

10

BEARING BALL #6302Z

601B6302Z

Out of stock

11

PANEL-ASY,RR BRK,BUFF

42006-074-80

Out of stock

11

PANEL-ASY,RR BRK,BUFF

42006-074-80

Out of stock

12

SHOE,BRAKE

42019-010

Out of stock

12

SHOE,BRAKE

42019-010

Out of stock

13

SPRING,BRAKE SHOE

92081-1766

Out of stock

14

SPRING,BRAKE SHOE

92081-1550

Out of stock

15

CAM SHAFT,REAR BRAKE

42026-014

Out of stock

15

CAM SHAFT,REAR BRAKE

42026-025

Out of stock

16

INDICATOR,BRAKE SHOE

41085-012

Out of stock

17

RING-O,BRAKE CAM

92055-004

Out of stock

18

BOLT-UPSET

112G0630

Out of stock

19

LEVER-REAR BRAKE CAM

42029-023

Out of stock

20

NUT,6MM

41072-007

Out of stock

21

NUT,CASTLE,14MM

92103-006

Out of stock

22

PIN-COTTER,4.0X35

550D4035

Out of stock

23

SPACER,REAR AXLE

42035-002

Out of stock

24

DR CHAIN 428X120

92057-095

Out of stock

25

JOINT-CHAIN

92058-1015

Out of stock
