1976 Kawasaki Trial Front Hub/brake Diagram

← All diagrams

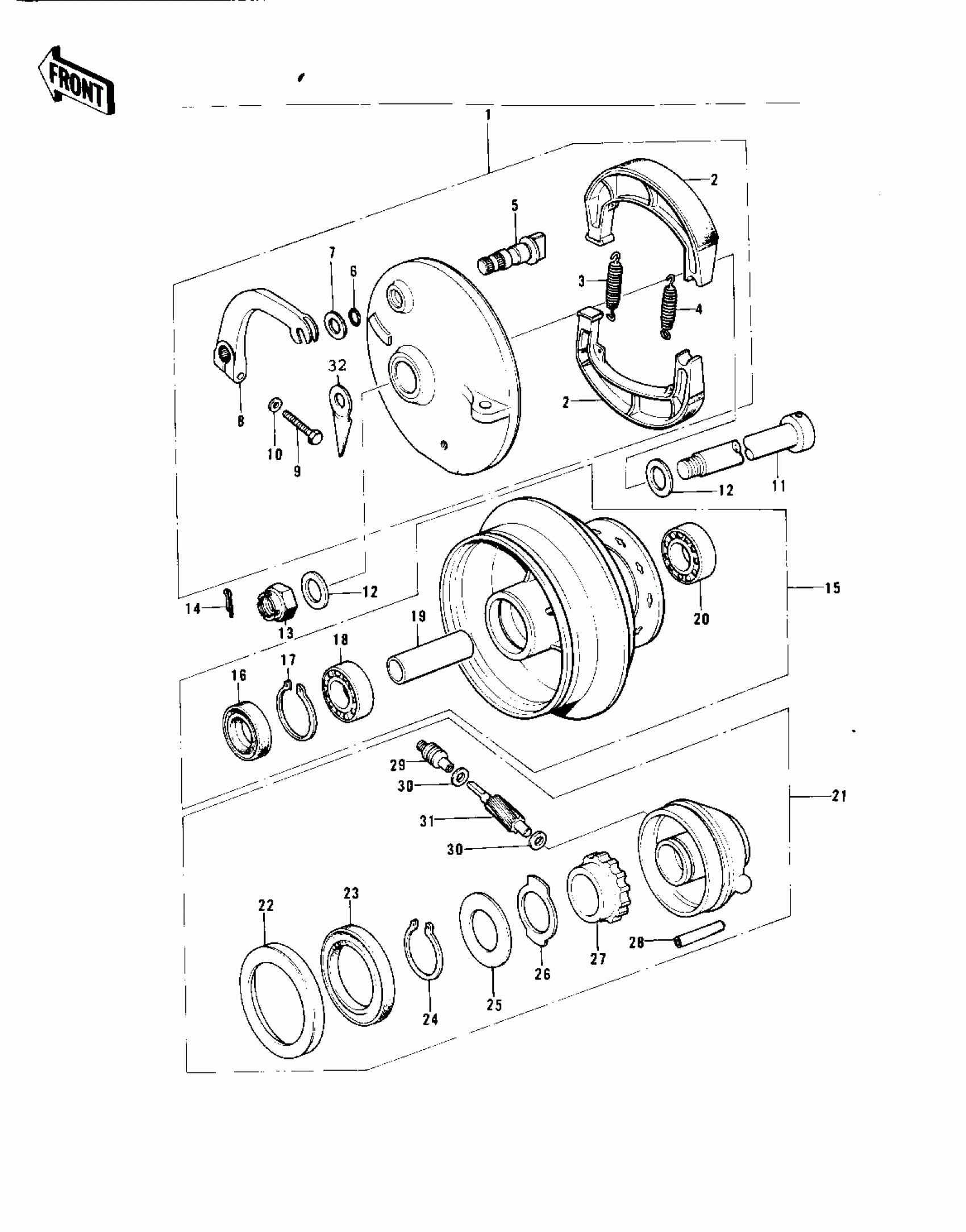

Find the part on the Front Hub/brake diagram for your 1976 Kawasaki Trial, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki Trial Front Hub/brake Diagram

#

Description
Price
Status
Order Qty

1

PANEL-ASY,FR BRK BLK

41035-064-80

$155.21

In stock

1

PANEL ASY,FR BK,BUFF

41035-078-80

$121.54

In stock

2

SHOE,BRAKE

41048-015

Out of stock

3

SPRING,BRAKE SHOE

92081-1766

Out of stock

4

SPRING,BRAKE SHOE

92081-1550

Out of stock

5

CAM-BRAKE

41050-018

$21.98

In stock

6

RING-O,BRAKE CAM

92055-004

Out of stock

7

WASHER BRAKE CAM SHT

41052-001

Out of stock

8

$46.92

In stock

8

$45.41

In stock

9

BOLT-UPSET,6X20

112G0620

Out of stock

9

BOLT-UPSET

112G0625

Out of stock

10

WASHER-PLAIN-SMALL,6MM

410B0600

Out of stock

11

AXLE,FRONT

41068-047

Out of stock

1

WASHER PLAIN 12MM

411B1200

Out of stock

13

NUT-CASTLE

320G1200

Out of stock

14

PIN-COTTER,3.0X25

550D3025

Out of stock

15

DRUM-ASSY,FR BRK,BUFF

41034-031-80

$205.49

In stock

16

OIL SEAL,FR BK DRUM

92050-059

Out of stock

17

CIRCLIP-TYPE-C,37MM

481J3700

Out of stock

18

BEARING BALL #6301

601B6301

Out of stock

19

$15.76

In stock

20

BEARING-BALL,#6201C3

601B6201

Out of stock

21

CASE ASSY,SPEED GEAR

41078-009

Out of stock

21

CASE ASSY,SPEED GEAR

41078-009

Out of stock

22

DUST COVER

41042-013

Out of stock

23

OIL SEAL

654A405208

Out of stock

24

CIRCLIP-TYPE-C,19MM

480J1900

Out of stock

25

WASHER,19.5X26X0.8

41065-004

Out of stock

26

$5.25

In stock

27

GEAR,SPEEDOMETER

41059-024

$37.43

In stock

28

PIN,SPRING

41082-001

Out of stock

29

$18.66

In stock

30

WASHER,5.1X9X0.4

41063-001

$4.17

In stock

31

GEAR-METER SCREW,8T

41060-015

Out of stock

32

INDICATOR,FR BK SHOE

41085-018

Out of stock
