1976 Kawasaki Trial Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 1976 Kawasaki Trial, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

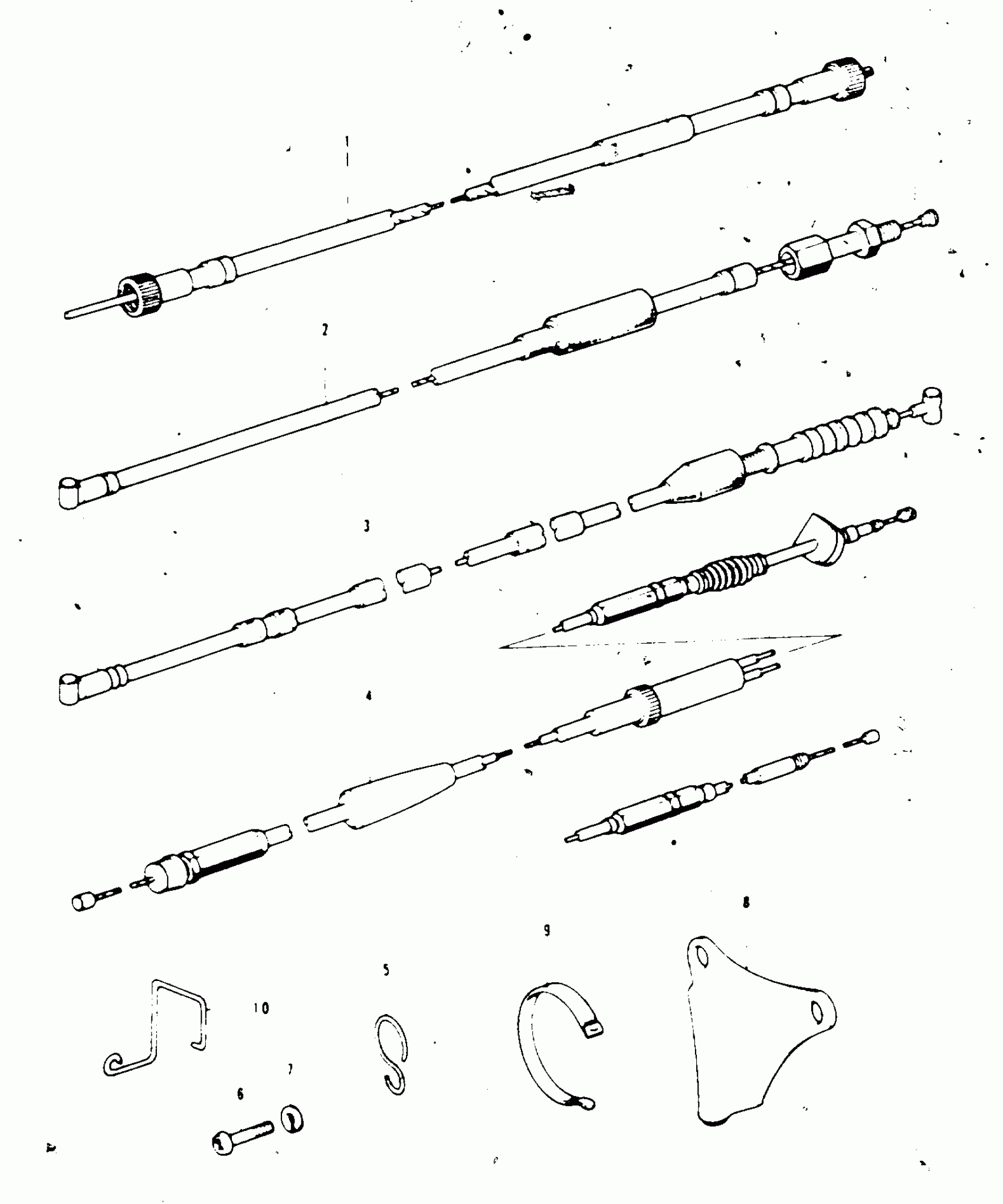

1976 Kawasaki Trial Cables Diagram

#

Description
Price
Status
Order Qty

1

CABLE,SPEEDOMETER

54001-051

Out of stock

2

CABLE,FRONT BRAKE

54005-082

Out of stock

2

CABLE,FRONT BRAKE

54005-085

Out of stock

3

CABLE,CLUTCH

54011-076

$28.68

In stock

4

CABLE,CONTROL

54012-119

Out of stock

5

CLAMP,CABLE

92037-126

Out of stock

6

BOLT SMALL

114G0812

Out of stock

7

WASHER SPRING 8MM

461F0800

Out of stock

8

BRACKET,CABLE

32122-045

$4.36

In stock

9

BAND,L=218

92072-032

$3.97

In stock

10

CLAMP,CABLE

92037-164

$4.80

In stock
