Find the part on the Meter/headlight/taillight diagram for your 1976 Kawasaki Trial, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

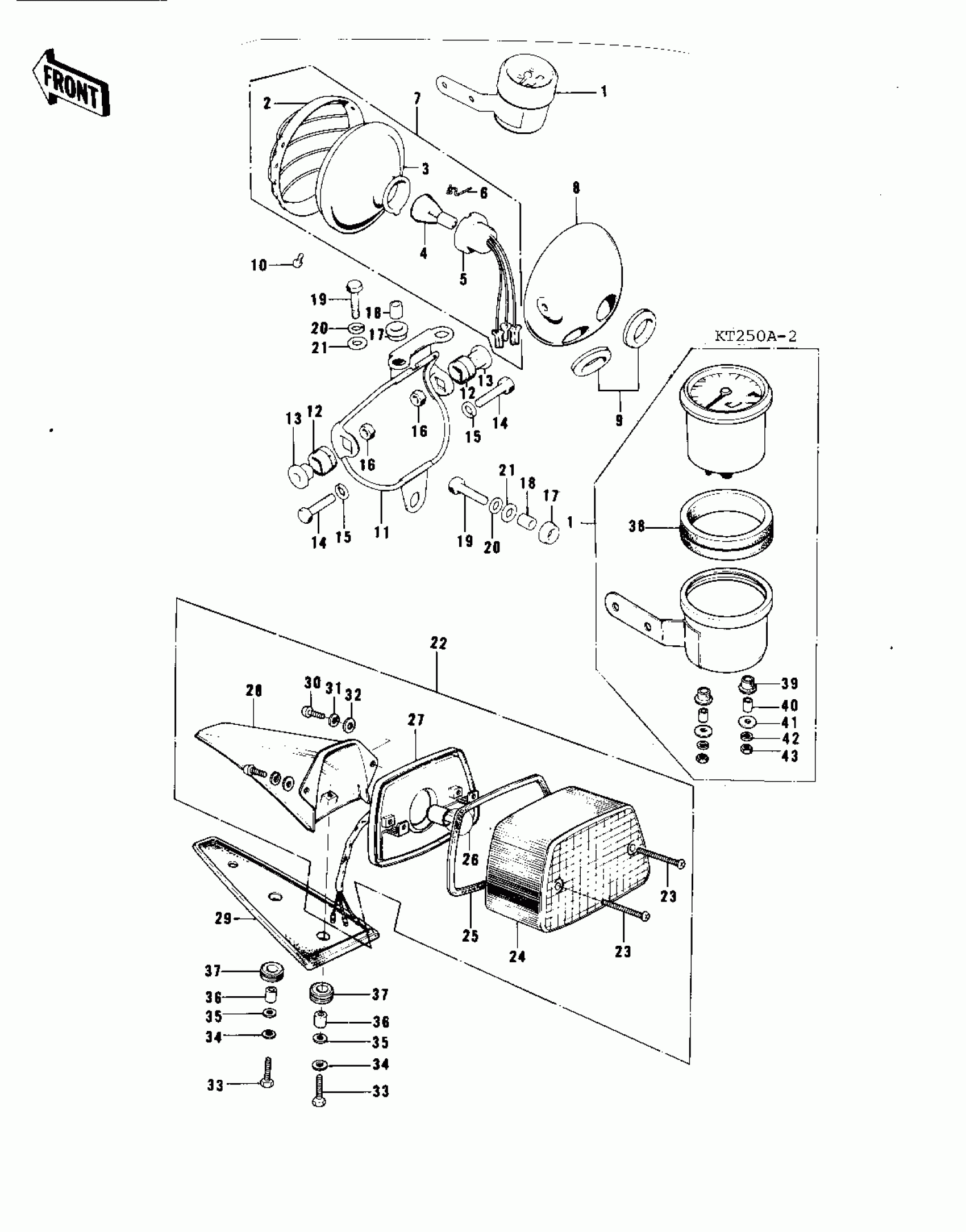

1976 Kawasaki Trial Meter/headlight/taillight Diagram

#

Description
Price
Status
Order Qty

1

$545.16

In stock

2

RIM,HEAD LIGHT

23006-047

Out of stock

3

LENS,HEAD LIGHT

23007-063

Out of stock

4

BULB,6V 35/35W

92069-078

Out of stock

5

SOCKET,HEAD LIGHT

23008-039

$36.55

In stock

6

$4.78

In stock

7

LAMP UNIT,HEAD

23004-060

Out of stock

8

BODY,HEAD LIGHT,WHITE

23005-021-3G

$62.34

In stock

9

GROMMET

23023-011

$5.78

In stock

10

$0.51

In stock

11

BRACKET,HEAD LIGHT

23064-020-3G

$57.31

In stock

12

DAMPER RUBBER

23066-017

Out of stock

13

COLLAR

23052-008

$15.76

In stock

14

BOLT,HEX HEAD,10X30

92007-041

Out of stock

15

WASHER SPRING 10MM

461F1000

Out of stock

16

NUT 10MM

92016-027

Out of stock

17

$3.72

In stock

18

COLLAR 6.8X10X10.5

92027-120

$3.97

In stock

19

BOLT-UPSET

112G0630

Out of stock

20

WASHER SPRING 6MM

461F0600

Out of stock

21

WASHER,6.5X22X1.6

92022-237

Out of stock

22

LAMP ASSY,TAIL,WHITE

23024-084-3G

Out of stock

22

LAMP ASSY,TAIL,WHITE

23024-084-3G

Out of stock

23

SCREW-PAN-CROS

220E0325

Out of stock

23

SCREW-PAN-CROS

220B0330

Out of stock

24

LENS,TAIL LAMP

23026-040

Out of stock

24

LENS,TAIL LAMP

23026-040

Out of stock

25

GASKET,TAIL LIGHT

23028-020

Out of stock

26

BULB,6V 17/5.3W

92069-028

Out of stock

27

CASE,TAIL LAMP

23027-044

$91.23

In stock

27

CASE,TAIL LAMP

23027-044

$91.23

In stock

28

BKT,LICENSE PLT,WHITE

23036-042-3G

$76.15

In stock

29

DAMPER RUBBER

23066-018

$6.86

In stock

30

SCREW PAN HEAD 5X10

220B0510

Out of stock

31

WASHER SPRING 5MM

461F0500

Out of stock

32

WASHER-PLAIN,5MM

411B0500

Out of stock

33

BOLT-UPSET,6X20

112G0620

Out of stock

33

BOLT-UPSET,6X20

112G0620

Out of stock

34

WASHER SPRING 6MM

461F0600

Out of stock

35

WASHER,6.5X20X1.6

92022-125

$1.25

In stock

36

COLLAR,6.8X10X8.5

92027-129

$3.97

In stock

3

DAMPER RUBBER

92075-263

Out of stock

38

SHOCK DAMPER,METER

25019-022

Out of stock

39

DAMPER,METER

25019-023

$3.42

In stock

40

$1.49

In stock

41

WASHER,5.2X16X1.2

92022-263

Out of stock

42

WASHER SPRING 4MM

461F0400

Out of stock

43

NUT-HEX

311B0400

Out of stock
