1976 Kawasaki Trial Chassis Electrical Equipment Diagram

← All diagrams

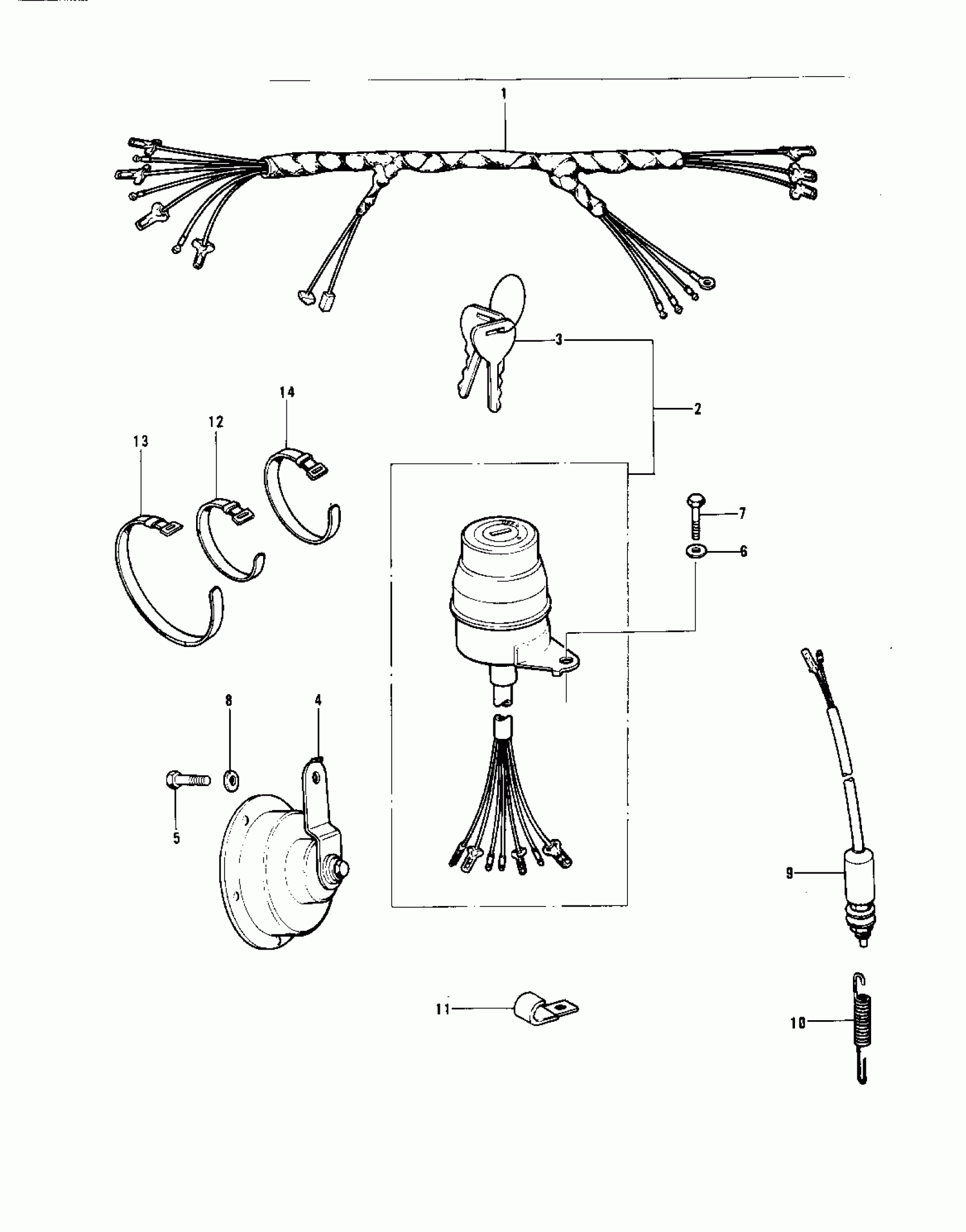

Find the part on the Chassis Electrical Equipment diagram for your 1976 Kawasaki Trial, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki Trial Chassis Electrical Equipment Diagram

#

Description
Price
Status
Order Qty

1

WIRING HARNESS,MAIN

26001-127

Out of stock

2

SWITCH ASSY,IGNITION

27005-079

Out of stock

3

KEY SET,#311

27008-050-11

$8.29

In stock

3

KEY SET,#312

27008-050-12

$8.25

In stock

3

KEY SET,#313

27008-050-13

Out of stock

3

KEY SET,#314

27008-050-14

$8.25

In stock

3

KEY SET,#315

27008-050-15

$8.25

In stock

3

KEY,BLANK

27008-1030

$13.34

In stock

3

KEY,BLANK

27008-1031

$12.68

In stock

3

KEY,BLANK

27008-1032

$12.68

In stock

3

KEY,BLANK

27008-1033

$12.68

In stock

4

HORN

27003-058

Out of stock

5

BOLT-UPSET 6X14

112B0614

Out of stock

5

BOLT-UPSET 6X14

112B0614

Out of stock

6

WASHER SPRING 6MM

461F0600

Out of stock

7

BOLT-UPSET,6X12

112G0612

Out of stock

7

BOLT-UPSET,6X12

112G0612

Out of stock

8

WASHER SPRING 6MM

461F0600

Out of stock

9

SWITCH-BRAKE LAMP

27010-015

Out of stock

10

$11.62

In stock

11

CLAMP

92037-113

$5.10

In stock

12

BAND,L=123

92072-030

$3.97

In stock

13

BAND,L=218

92072-032

$3.97

In stock

14

BAND,L=186

92072-056

$3.97

In stock
