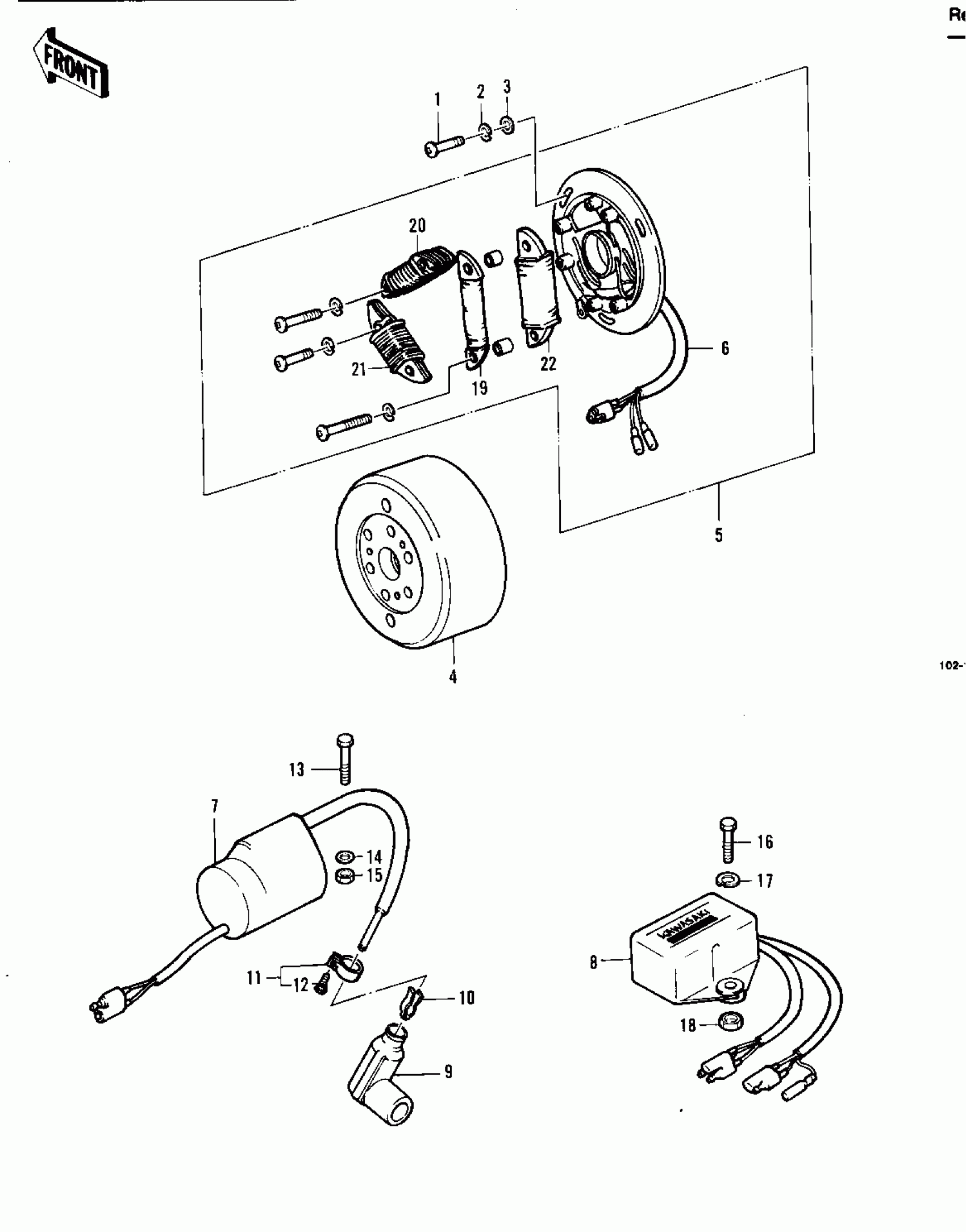

Find the part on the Ignition/generator diagram for your 1976 Kawasaki Trial, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki Trial Ignition/generator Diagram

#

Description
Price
Status
Order Qty

1

UNAVAILABLE IN PRICE BOOK

214B0516A

Out of stock

2

WASHER SPRING 5MM

461F0500

Out of stock

3

WASHER-PLAIN,5MM

411B0500

Out of stock

4

FLYWHEEL,MAGNETO

21050-020

$376.06

In stock

5

$164.76

In stock

6

WIRING HARNESS,MAG

21029-033

$40.78

In stock

7

COIL,IGNITION

21121-077

$149.63

In stock

8

IGNITION UNIT

21119-023

$344.69

In stock

9

CAP-SPARK PLUG

21130-1006

Out of stock

10

TERMINAL,PLUG CAP

21169-001

Out of stock

11

CLAMP

92037-1173

$2.92

In stock

12

SCREW-PAN-CROS

220B0310

$3.44

In stock

13

BOLT, HEX HEAD 5X22

110B0522A

Out of stock

14

WASHER-PLAIN,5MM

411B0500

Out of stock

15

NUT-HEX

311B0500

$0.51

In stock

16

BOLT-UPSET

112G0618

Out of stock

17

WASHER SPRING 6MM

461F0600

Out of stock

18

NUT 6MM

311B0600

Out of stock

19

COIL,PULSER

21047-033

$92.93

In stock

20

COIL,LIGHTING

21047-034

$64.64

In stock

21

COIL,CHARGE

21047-035

$67.56

In stock

22

COIL

21049-019

Out of stock
