1976 Kawasaki Trial Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1976 Kawasaki Trial, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

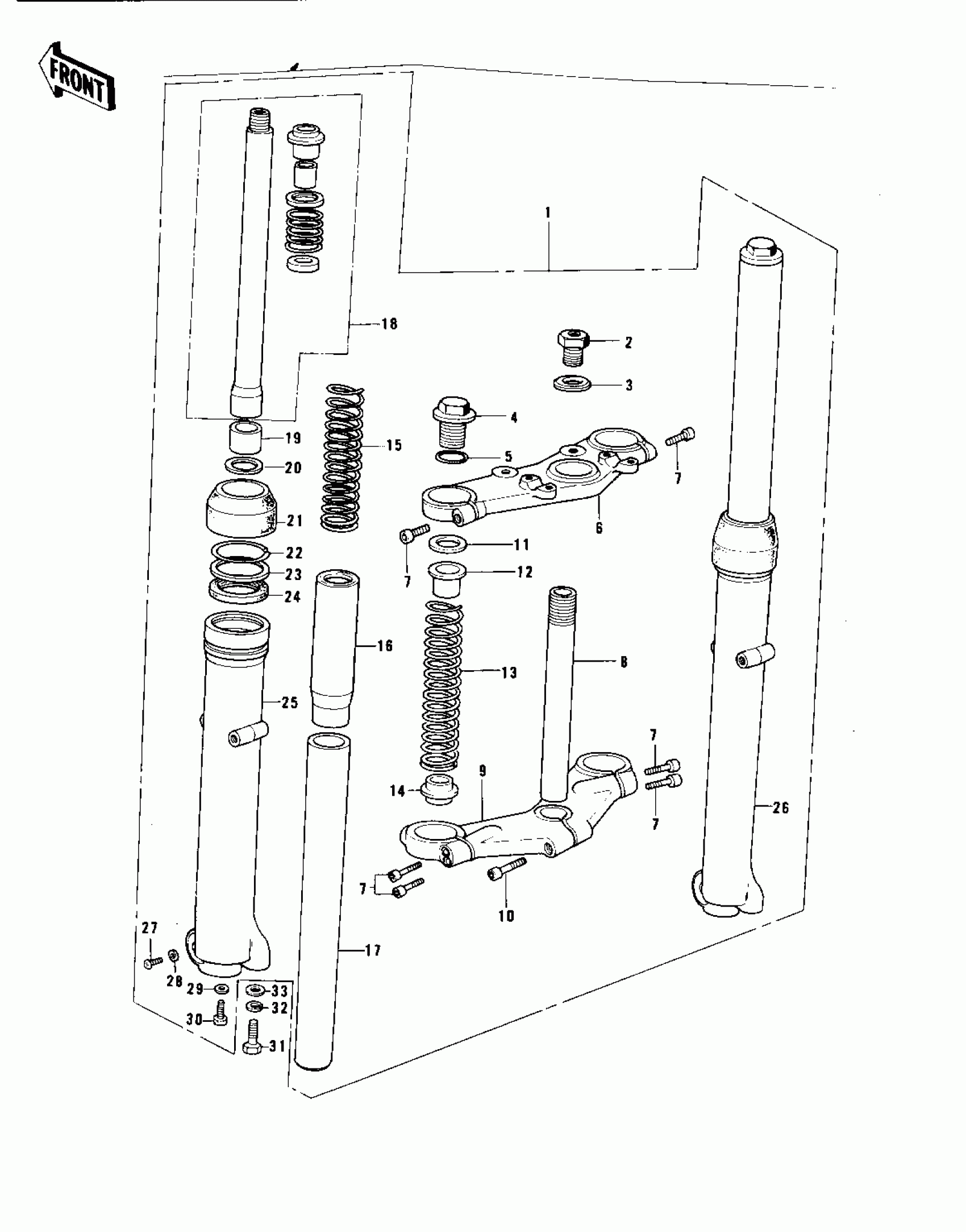

1976 Kawasaki Trial Front Fork Diagram

#

Description
Price
Status
Order Qty

1

FORK-FRONT

44001-157

$1,104.44

In stock

2

BOLT,FORK TOP

44041-065

Out of stock

3

WASHER

44043-052

$7.47

In stock

4

BOLT,FORK TOP

44041-080

$23.17

In stock

5

'O' RING FORK TOP

44046-015

Out of stock

6

HEAD,STEERING STEM

44039-067

$137.17

In stock

7

BOLT

44041-061

$5.02

In stock

8

$118.51

In stock

9

STEM,STEERING

44038-009

$245.94

In stock

10

BOLT-STEERING STEM

44041-043

Out of stock

12

SPACER,FORK SPRING

44028-035

$9.17

In stock

13

$38.58

In stock

14

GUIDE,FORK SPRING

44028-037

$4.93

In stock

15

$28.92

In stock

16

SPACER,FORK SPRING

44028-036

$9.39

In stock

17

TUBE,FORK INNER

44013-050

$180.06

In stock

18

CYLINDER-FORK

44022-025

$103.75

In stock

19

PISTON,FORK

44018-009

Out of stock

20

CIRCLIP,FORK PISTON

44044-019

Out of stock

21

DUST SHIELD,FORK

44010-031

Out of stock

22

CIRCLIP OIL SEAL FIT

44044-005

Out of stock

23

WASHER OIL SEAL FIT

44043-023

Out of stock

24

OIL SEAL

44009-026

$61.69

In stock

25

TUBE,LH,FORK OUTER

44005-059

$167.38

In stock

26

TUBE,RH,FORK OUTER

44006-057

$185.41

In stock

27

SCREW

44041-062

$2.75

In stock

28

GASKET

44045-045

$1.69

In stock

29

GASKET

44045-057

$3.86

In stock

30

$5.21

In stock

31

BOLT,12X32

113N1232A

Out of stock

32

WASHER-SPRING,12MM

461F1200

Out of stock

33

WASHER-PLAIN-SMALL,12MM

410B1200

Out of stock
