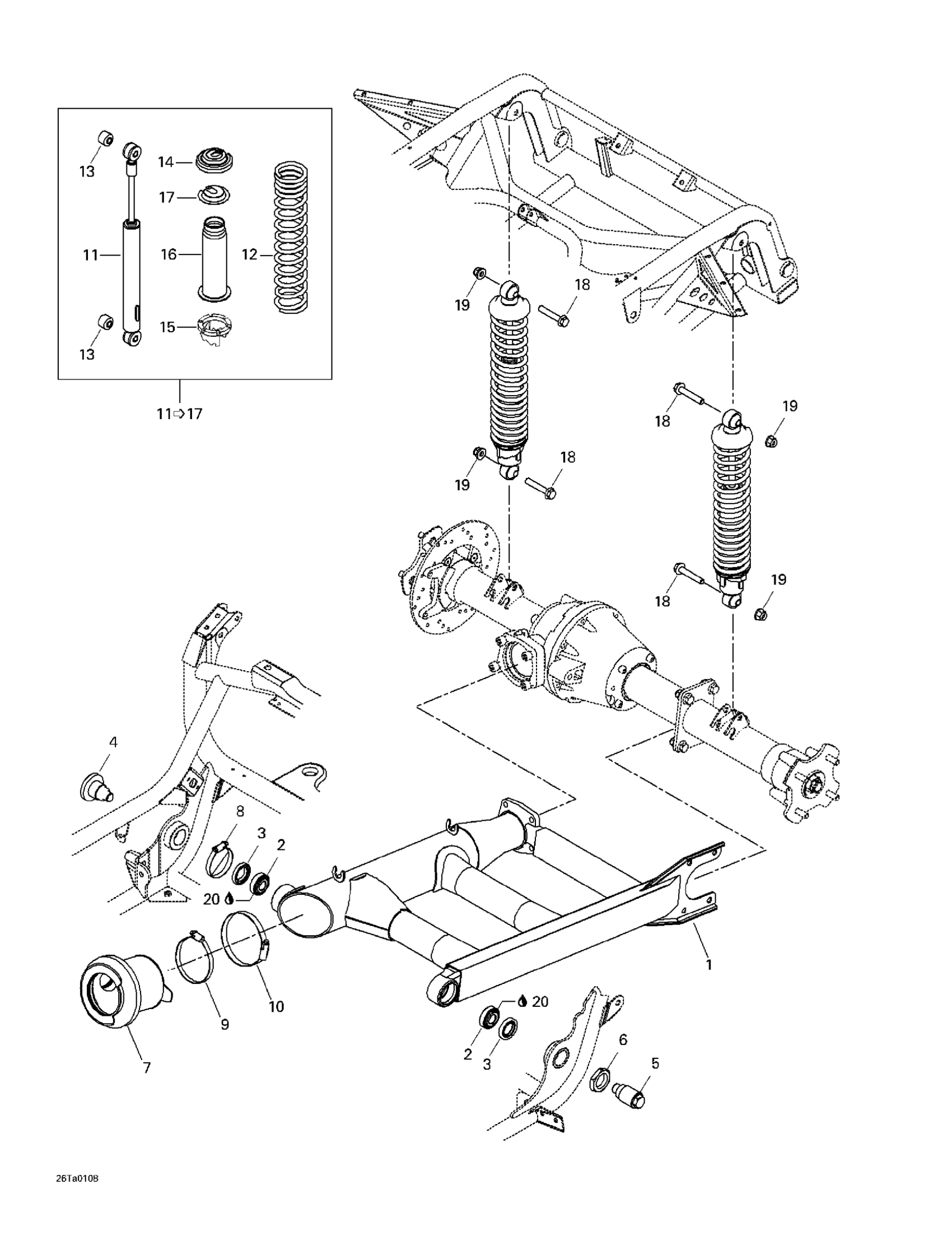

Can-Am Traxter XL, 7448/7489, 2001 Rear Suspension Diagram

#

Description
Price

1

Swing Arm

706000108

Unavailable

2

CONE BEARING - Call your local BRP dealership

706000009

$27.66

3

OIL SEAL - Call your local BRP dealership

706000010

Unavailable

4

RH Pivot Bolt

706000092

Unavailable

5

LH PIVOT BOLT - Call your local BRP dealership

706000093

$33.05

6

HEX. JAM NUT - Call your local BRP dealership

706000006

$13.05

7

Swing Arm Bellows

706000011

Unavailable

8

Norma Gear Clamp

293650090

$4.38

9

Norma Clamp

293650096

$3.09

10

Norma Clamp

514052924

$10.58

11

Not Available As Spare Part - Friction Washer

Unavailable

11

Rear Shock

706000113

Unavailable

12

SPRING_COMPRESSION B-190 PAINTED - Call your local BRP dealership

706000114

$59.97

13

Lower Bushing | Traxter XT.

706000147

Unavailable

14

Spring Stopper

706200881

$10.30

15

Cam

503189205

Unavailable

16

Protector

706000137

Unavailable

17

Cap

706200785

$4.42

18

Hex. Flange Screw M10 X 55

207605544

$2.78

19

Hex. Flange Elastic Nut M10

233201414

$1.26

20

Synthetic Grease, 400 G

293550010

Unavailable
