- Traxter XL, 7448/7489, 2001
07- Front Suspension

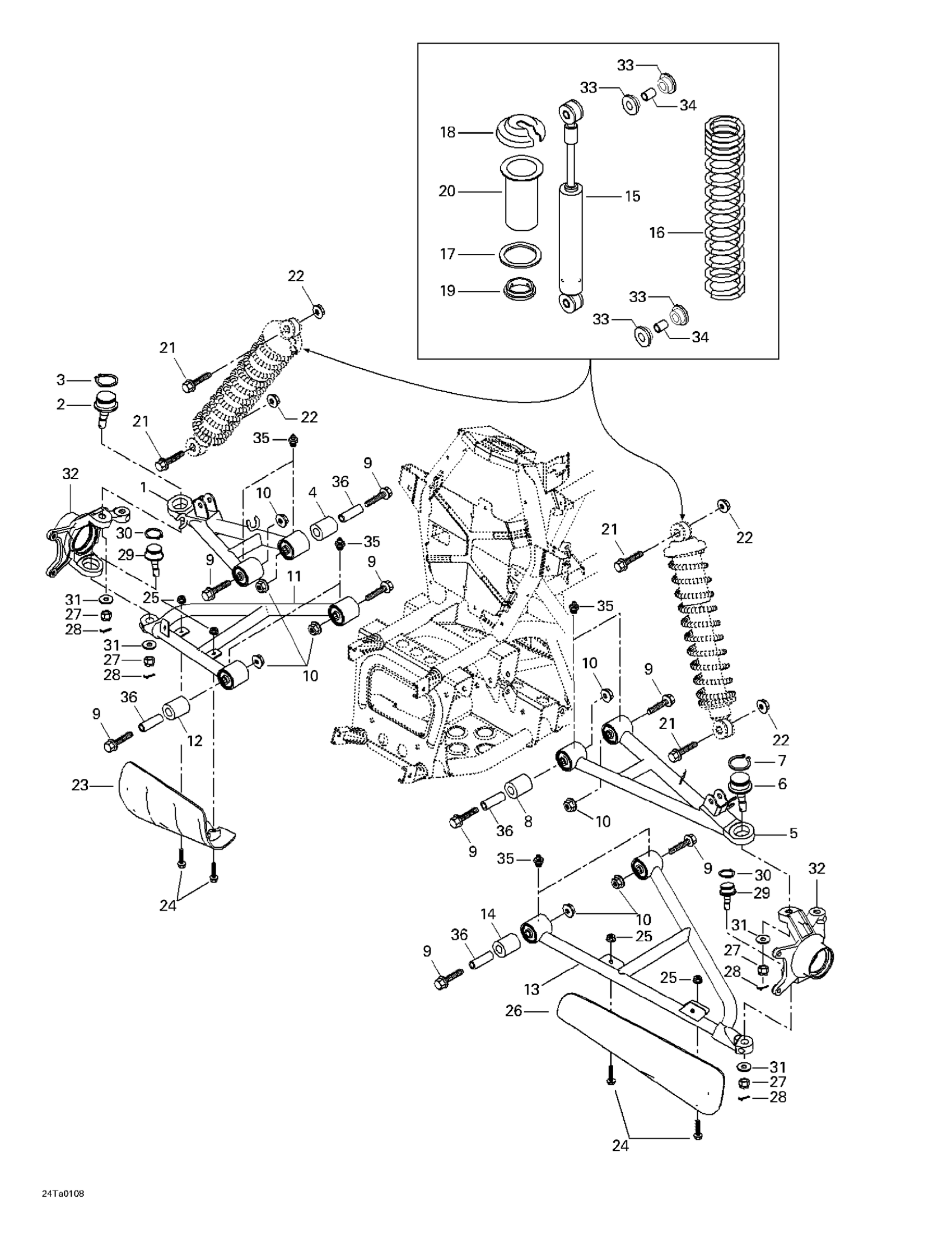

Can-Am Traxter XL, 7448/7489, 2001 07- Front Suspension Diagram
#
1
RH Upper Arm
706200152
Unavailable
RH UPPER ARM - Call your local BRP dealership
706200187
Unavailable
2
Ball Joint
706200653
Unavailable
3
Circlip 32 mm
293370009
Unavailable
4
Bushing
706200181
Unavailable
5
LH Upper Arm
706200155
Unavailable
LH upper arm
706200193
Unavailable
6
Ball Joint
706200653
Unavailable
7
Circlip 32 mm
293370009
Unavailable
8
Bushing
706200181
Unavailable
9
Hex. Flange Screw M10 X 70
207607046
Unavailable
10
Hex. Flange Elastic Nut M10
233201436
Unavailable
11
RH Lower Arm (7431 @ 7434)
706200159
Unavailable
RH LOWER ARM - Call your local BRP dealership | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)
706200196
Unavailable
12
Bushing
706200181
Unavailable
13
LH Lower Arm (7431 @ 7434)
706200161
Unavailable
LH LOWER ARM - Call your local BRP dealership | (7461 / 7462 / 7469 / 7470 / 7471 / 7480)
706200200
Unavailable
14
Bushing
706200181
Unavailable
15
Front Shock | Includes 10 - 12.
706200137
Unavailable
16
FRONT SPRING - Call your local BRP dealership
706200006
Unavailable
17
SPRING SEAT - Call your local BRP dealership
706000533
Unavailable
18
Spring Stopper
706200881
Unavailable
19
Spring seat
706000007
Unavailable
20
PROTECTOR - Call your local BRP dealership
503139800
Unavailable
21
HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership
207604544
Unavailable
22
Hex. Flange Elastic Nut M10
233201414
Unavailable
23
Arm Protector R.H
706200007
Unavailable
RH ARM PROTECTOR - Call your local BRP dealership
706200179
Unavailable
24
Hex. Flange Screw M6 X 16
207661644
Unavailable
25
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
26
Arm Protector L.H
706200009
Unavailable
LH ARM PROTECTOR - Call your local BRP dealership
706200180
Unavailable
27
Hex. Castellated Nut M12
232221414
Unavailable
28
Cotter Pin
211400017
Unavailable
29
Ball Joint
706200653
Unavailable
30
Circlip 32 mm
293370009
Unavailable
31
Hardened Washer
503175400
Unavailable
32
Not Available As Spare Part - Friction Washer
Unavailable
Not Available As Spare Part - Friction Washer
Unavailable
33
CUSHION - Call your local BRP dealership
706200185
Unavailable
34
BUSHING - Call your local BRP dealership
706200186
Unavailable
35
Grease Fitting
408200700
Unavailable
36
Sleeve
706201587
Unavailable
